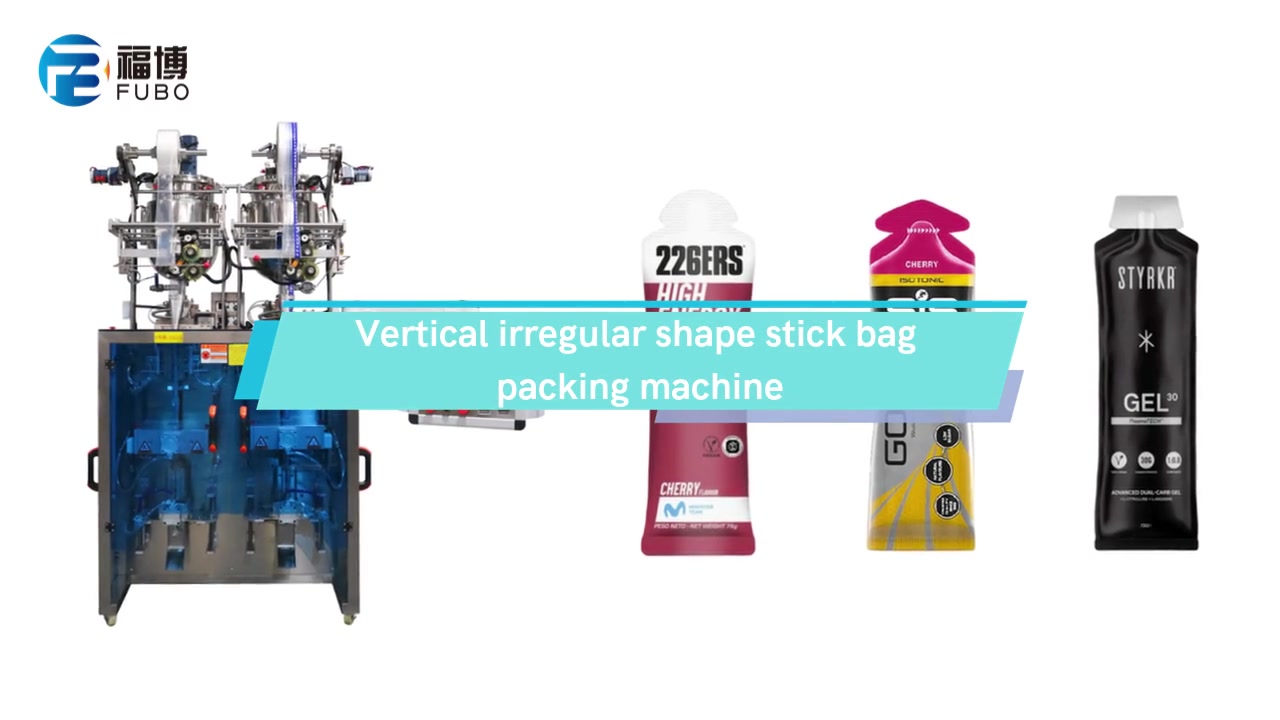

The most common vertical packaging machine is the single-row vertical packaging machine, but with the increase in people's needs, vertical double-row packaging machines have emerged. The bags made by this double-row special-shaped strip bag packaging machine are all strip bags. Different cutting tools and molds can be customized according to the customer's bag-making needs to produce bags of different styles. The double-row packaging machine is mainly used for packaging liquid and sauce products. Different metering and feeding devices can also be installed according to the different packaging products. For example: measuring cup metering and feeding device, powder metering and feeding device and liquid/sauce pump, etc. Vertical double-row packaging machines are mostly used in industries such as food and daily necessities, and have been exported to South Korea, Taiwan, Vietnam, Spain, etc.
The packaging and bag making efficiency of the fully automatic double-row packaging machine is twice that of the single-row vertical packaging machine. While increasing the number of product packaging, it can also ensure the beauty and sealing of the packaging bags. The vertical double-row packaging machine can make bags and pack on both sides at the same time, or it can pack on one side separately. When one side stops working, the other side can continue to pack and make bags without being affected, which can greatly improve the packaging and bag making efficiency of the machine.
1. Film drawing device: The film rolling device is easy to install, and the linkage film rolling coordinates the overall film drawing link. It is suitable for using more film rolling bag making materials. Such packaging film is more stable and runs smoothly under the packaging working state.
2. Hopper: The storage device is made of food-grade 304 stainless steel to ensure the hygiene of the packaging materials. A heating or stirring device can be added to the hopper according to the characteristics of the liquid/sauce materials to be packaged, making the material packaging more convenient and simple.
3. Date printing: This device is installed together with the packaging machine, and the date or number and other numbers can be printed on the film for bag making, which is convenient for checking the production number and shelf life of the packaged product. The coding numbers are flexible and the digital number or date format can be adjusted at any time.
4. Liquid/sauce pump: Made of food-grade 304 stainless steel, different pneumatic pumps are selected for accurate material measurement. According to the different fluidity of liquids and sauces, the appropriate delivery pump is selected to make the weight of the packaged product more accurate and the packaging smoother.
5. Bag maker: According to the width of the film and the size of the bag, choose to install a suitable bag maker to facilitate bag making. There are different types of bag making machines for customers to choose from, which can better improve the bag making accuracy and reduce errors.
6. Touch screen control system: The control bag making parameters of the touch screen system can be displayed in various languages. The bag making speed and bag size of the packaging machine can be viewed through this. Storing multiple packaging parameters can switch data at will without resetting, which is convenient for operation.
7. Cutter device: Different styles of cutters can be selected according to bag making needs. Bag cutting equipment with punching devices and easy-tear devices can be installed, and cutters with different patterns can also be added, such as flat cutting, tooth cutting, and rounded corner cutting.
The fully automatic vertical double-row packaging machine can be used to package liquid and sauce products in different industries such as food, medicine, and chemicals. In order to better measure the products accurately and make bags efficiently, suitable metering and feeding devices can be customized according to the characteristics of different materials. This packaging machine can package products with different characteristics and fluidity, such as honey, juice, shower gel, condensed milk, vinegar, enzyme beverages, ketchup, shampoo, etc.

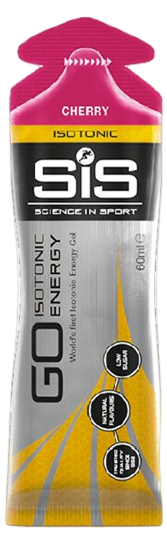

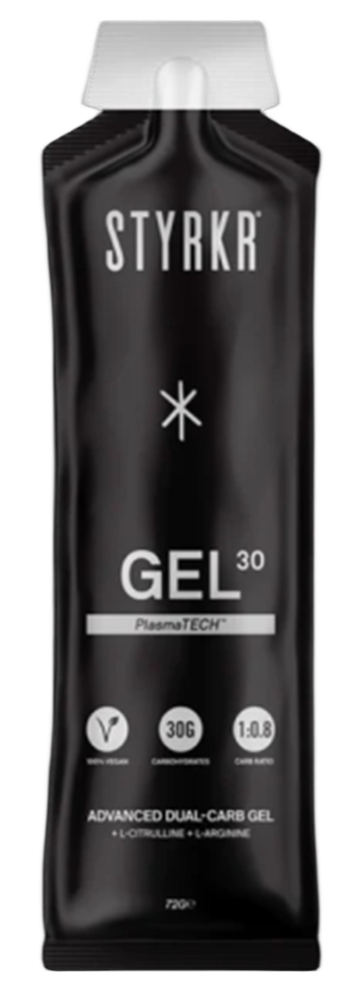

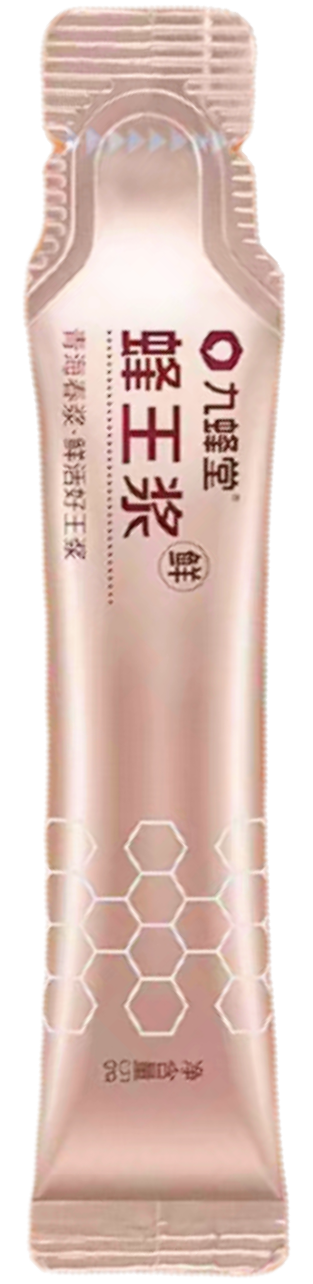

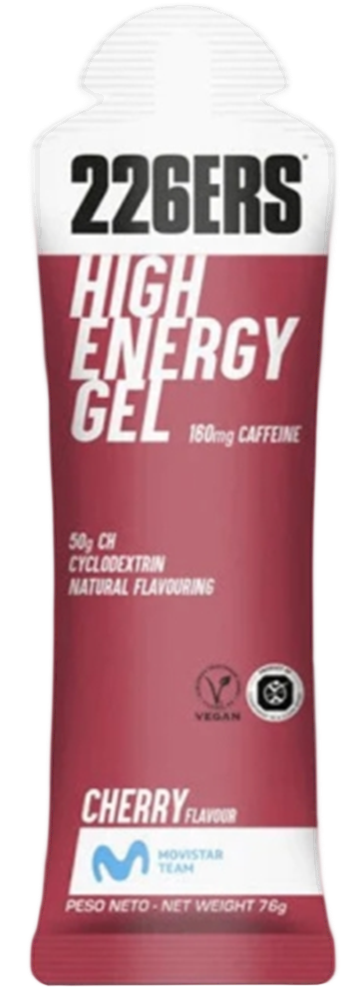

The bag making efficiency of the double-row packaging machine is twice that of ordinary packaging machines. This vertical double-row packaging machine can customize the bag making process and bag cutting film according to the customer's bag making requirements. The double-row packaging machine selected according to customer needs can produce basic bag types such as strip bags, special-shaped bags, and back-sealed bags. According to the requirements of the bag, the sealing pattern, cutter shape, easy-tear device, etc. are selected to make the bag more beautiful and convenient to use.
1. The bag-making efficiency of this double-row packaging machine is higher than that of the ordinary single-row packaging machine. It can work on both sides at the same time, or it can pack and make bags separately. It can reduce the maintenance time of the packaging machine when it fails at work. Because when one side of the packaging machine fails, the other side can continue to pack and make bags;
2. The double-row packaging machine is made of stainless steel, and the overall structure is simple and clear, which is convenient for subsequent inspection and maintenance. The materials used are sturdy and durable, which can increase the service life. At the same time, it also has good high temperature resistance and corrosion resistance, and can package products that need to be heated or are corrosive;
3. The independent temperature control device can accurately control the sealing temperature. When changing the bag-making material, there will be problems at the sealing point, and the bag will be poorly sealed, which will easily cause the packaging material to leak. Not only will it waste and pollute the packaging materials, but it will also consume a lot of bag-making film;
4. The touch screen control system is used to control the packaging process of the machine, which can clearly display the packaging parameters of the machine, and it is also convenient to adjust its packaging speed, bag making size, weight of the packaged product and other data. There are two languages in Chinese and English, which can be switched at will according to customer needs.
5. The food safety of the packaging machine has strict requirements on the parts that come into contact with the product during the packaging process. Therefore, those parts that can come into contact with the material are made of food-grade stainless steel, which can effectively and safely prevent the product from being contaminated during the packaging process. It is convenient to clean the material after use to avoid the contamination of mixed materials.
TYPE OF DOUBLE-LINE PACKING MACHINE | FBV-300YD VFFS JELLY SACHET PACKING MACHINE |
| PACKING SPEED/MINUTE | 50-120 bags/minute |
| PACKING DIMENSION | Width: 20mm - 150mm Length: 30 mm - 180 mm |
| DIAMETER OF PACKGE ROLL | Max 450 mm |
| POWER | 110v/220v/380v customized |
| WEIGHT | 600 kgs/set |
| SIZE OF MACHINE | 1000*1400*2100mm |
