Instructions of machine

FBV-50YD die cut irregular shape sachet packing machine consists of main packing machine, date printer, touch screen, paste pump, sealing and cutting system, machine are controlled by PLC system.

Irregular shape pouch packaging machine feature: PLC control, touch screen English or Chinese operation.   Each machine has a CE certificate.

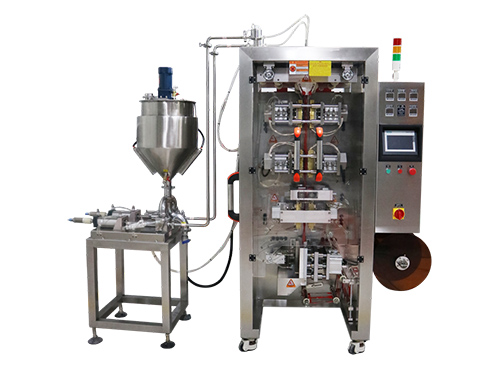

FBV-50YD irregular shape pouch packing machine
FBV-50YD irregular shape pouch packing machine layout

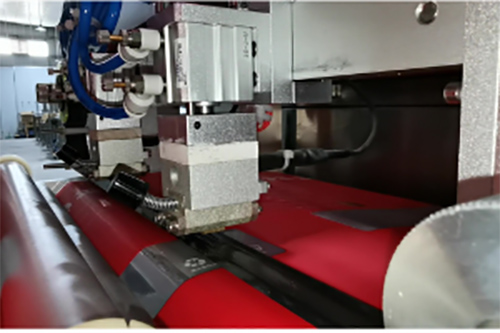

construction of shape sachet jelly packing machinery
Date printer
construction of shape sachet jelly packing machinery

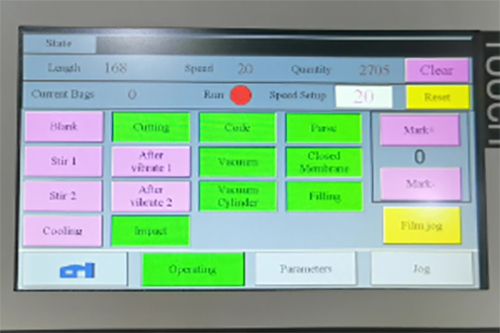

Touch screen
construction of shape sachet jelly packing machinery

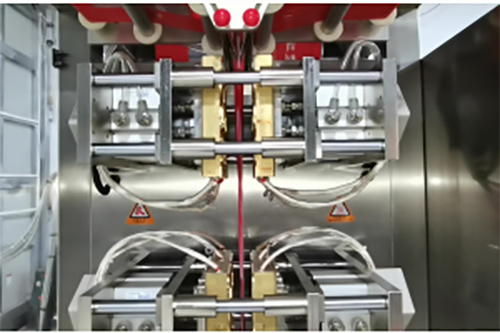

Vertical sealing
construction of shape sachet jelly packing machinery

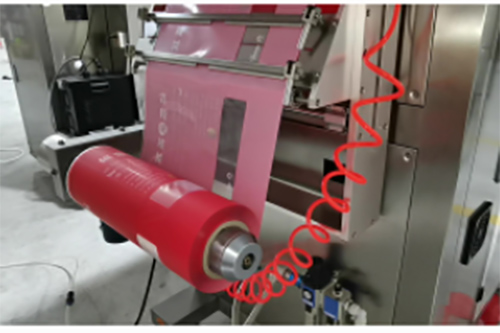

Film input

Parameter

Type

FBV-50Y irregular shape pouch packing machine

FBV-50YD irregular shape pouch packing machine

Machine speed

25-30 per minute

50-60 per minute

Volume to fill

(1 -70 mls can be customized)

(1 -50 mls can be customized)

Pouch size range

Customized
     Max width: 130 mm,
     Max length: 180 mm

Customized
     Max width: 90 mm,
     Max length: 180 mm

Max. Film width

320mm

420mm

Film material

Composite film/aluminum foil/paper-pe film/laminated paper

Bag type

Irregular shape pouch

Voltage

Ac220v/50hz single-phase ( customized)

Total power

3kw

4.4 kw

Machine material

Stainless steel 304(ss304)

Machine size

(l)1150mm*(w)1250mm*(h)2150mm

(l)1350mm*(w)1450mm*(h)2150mm

N.w.

450kg

600 kgs


Application

Irregular shape sachet packaging machines are widely used in liquid and paste products, such as milk, cream, juice, honey, ketchup, shampoo, fruit jam, vinegar, peanut sauce, bean sauce, chili sauce, butter, yogurt, cheese, etc.




Cream




 Fruit jam




Mashed Potato



Vinegar




Sesame Sauce




 Chili Sauce

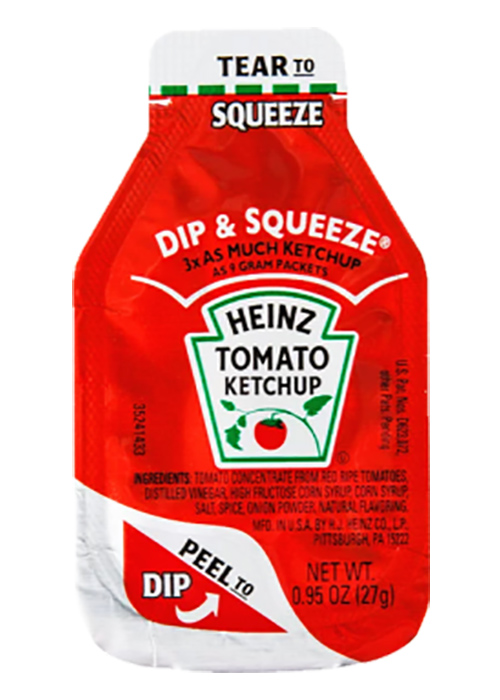

Ketchup



Honey



 FBV-50YD IRREGULAR SHAPE BAG PACKING MACHINE can be customized to make veries of sachets as below:

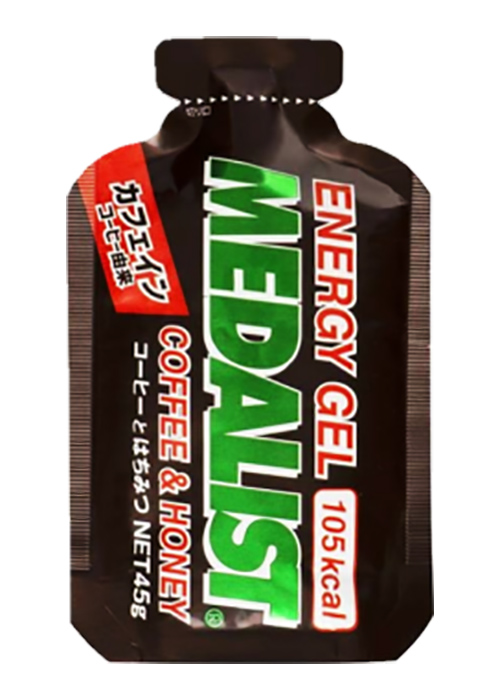

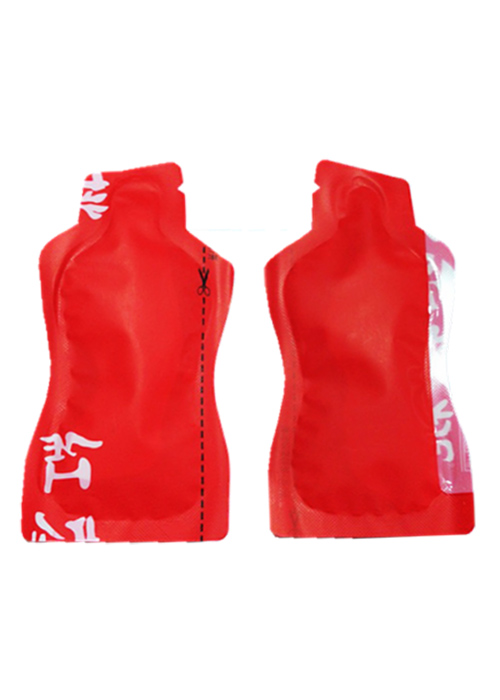

Sample bag:  1. Special-shaped bag  2. Stick bag  3. Pillow bag  4. Gusset bag  5. 3-side seal pouch  6. 4-side seal pouch

Irregular shape pouch packaging machine bag/film material:  Paper/Polyethylene Cellophane/Polyethylene; Aluminized/Polyethylene/Polyethylene/Polyethylene Nylon/Polyethylene/BOPP
