Vertical Double-line packaging machine:

The vertical double-line packaging ensures high bag-making efficiency while producing high-quality and beautiful bags. The bag shape can be customized according to the customer's bag-making requirements, which is convenient for customers to open and use. Although the machine is double-line, it has a compact structure, is sturdy and durable as a whole, has a simple and elegant appearance design, and a stable packaging and bag-making process. It is the first choice for most customers who pursue high efficiency, and the products produced meet high efficiency and high quality. The vertical irregular shape sachet jelly packing machine can automatically complete the packaging process such as feeding, printing date, metering and filling, bag making, sealing, shape cutting, and finished product output. Packaging equipment such as metering and filling and shape cutting devices can be customized according to the characteristics of the customer's packaging products and bag-making requirements.

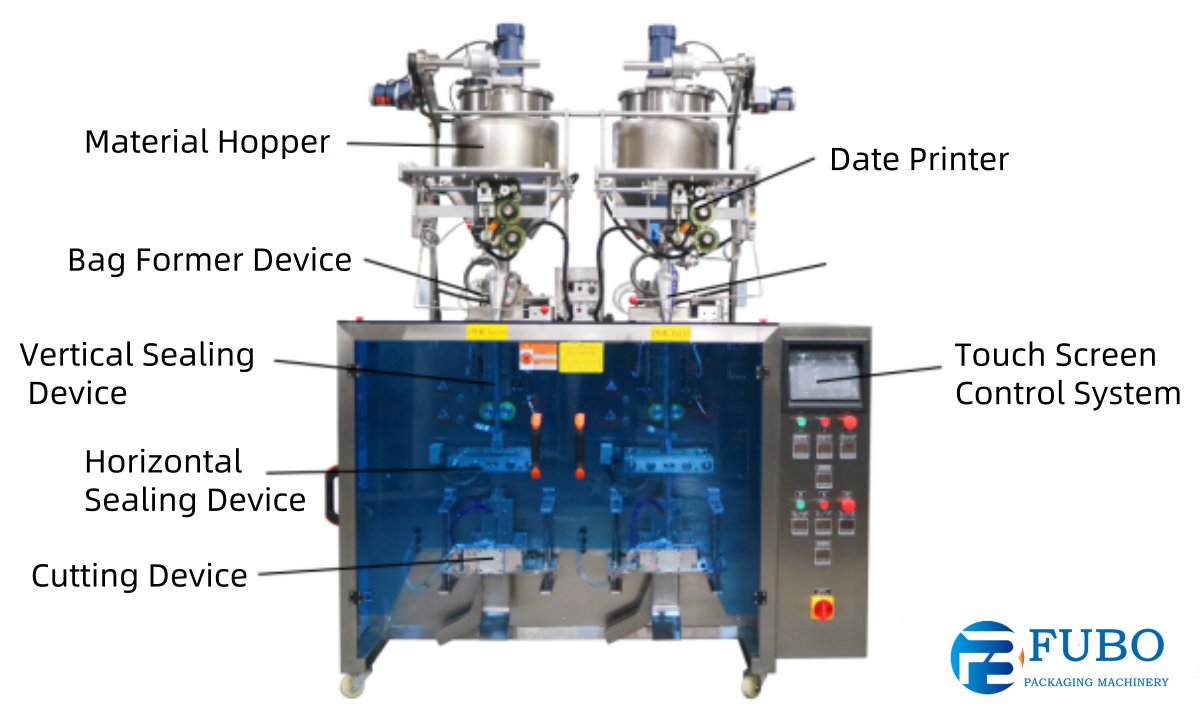

Material Hopper: The size of the storage barrel can be customized according to the needs, without the need to continuously add materials, which saves more time and manpower. Heating and stirring devices can be added to the storage barrel according to the characteristics of the material to facilitate unloading and thus increase the packaging speed;

Liquid/sauce pump: The delivery pump is selected according to the different densities and fluidity of the packaged liquid and sauce. It is made of food-grade 304 stainless steel to avoid contamination of the packaged products and is convenient for daily cleaning. It uses a pneumatic pump for precise metering.

Date printing device: Through the sensor positioning system of the packing machine, accurate positioning and printing are carried out to avoid position errors. The printed numbers can be flexibly adjusted and are easy to use. Different packaging materials can be replaced to ensure the clarity of the printed date;

Bag former: Uses a heat-sealing structure with precise temperature control to facilitate bag making and sealing, ensuring that the seal is firm and will not break or leak out materials. The corresponding bag former needs to be customized according to the size of the bag to be made;

Touch screen control system: It uses Chinese and English languages and can be changed at will according to customer needs. It is used to display and adjust packaging parameters. It is easy to operate and can better save time and improve efficiency.

Longitudinal sealing device: an independent temperature control device is used to control the sealing temperature of the bag making, so as to avoid the sealing temperature being too high to melt the sealing part, or the temperature being too low to seal tightly and cause material leakage;

Horizontal sealing device: mainly used to seal the upper and lower ends of the bag after filling to ensure a firm seal. Accurately control the seal width to facilitate bag cutting and seal pattern design;

Shape cutting mold: The bag type required by the packaging machine is a special-shaped bag. It is necessary to customize the mold according to the customer's bag making requirements to make bags of different styles and shapes, ensuring that the overall cut of the bag is neat and smooth to avoid uneven cuts.

PRODUCT FUNCTION:

Double-line vertical packing machine is suitable for packaging liquid or sauce products in different industries such as food industry, daily necessities industry, pharmaceutical industry or chemical industry, such as jelly, shampoo, vinegar, jam, shower gel, enzyme beverage, ketchup, condensed milk, sesame paste, juice, chili sauce, blueberry sauce, soy sauce, honey, etc. According to the different characteristics of the packaged liquid and sauce products such as fluidity, it can be equipped with corresponding material conveying pumps to ensure accurate metering, precise material filling positioning, and improve packaging efficiency.




Vertical jelly sachet packaging machines can produce various types of bags, such as special-shaped bags, 3-side sealed bags, 4-side sealed bags, strip bags, back-sealed bags, perforated bags, linked bags, flat-cut bags, etc. If a packaging machine needs to produce bags of different shapes, it can be equipped with customized bag cutting tools and corresponding bag making equipment, such as coding devices, easy-tear devices, and perforating devices, according to customer requirements.




Double-line packing machine of features:

1. The packaging and bag making efficiency of the fully automatic vertical double-line packing machine is twice that of the bag making efficiency of the ordinary vertical packaging machine. While increasing the number of product packaging, it can also ensure the beauty and sealing of the packaging bags;

2. The vertical double-line packaging machine can make bags and pack on both sides at the same time, or it can pack on one side separately. When one side stops working, the other side can continue to pack and make bags without being affected, which can greatly improve the packaging and bag making efficiency of the machine;

3. The double-line packing machine is made of stainless steel material, and the overall structure is simple and clear, which is convenient for subsequent inspection and maintenance. The materials used are sturdy and durable, which can increase the service life. At the same time, it also has good high temperature resistance and corrosion resistance, and can package products that need to be heated or are corrosive;

4. The independent temperature control device is used to accurately control the sealing temperature. Avoid problems at the sealing when changing the bag making material. The poor sealing of the bag will easily cause the packaging material to leak. It will not only waste and pollute the packaging materials, but also consume a lot of bag-making film;

5. The touch screen control system is used to control the packaging process of the machine. It can clearly display the packaging parameters of the machine and is also convenient for adjusting its packaging speed, bag-making size, weight of the packaged product and other data. It has two languages, Chinese and English, which can be switched at will according to the needs of customers;

6. The food safety of the packing machine packaging products has strict requirements on the parts that come into contact during the packaging process. Therefore, for those parts that can come into contact with the materials, they are made of food-grade stainless steel materials, which can effectively and safely prevent the products from being contaminated during the packaging process. It is convenient to clean the materials after use to avoid the contamination of mixed materials.


PARAMETER


TYPE OF MACHINEFBV-300YD VFFS JELLY SACHET PACKING MACHINE
PACKING SPEED/MINUTE50-120 bags/minute
PACKING DIMENSIONWidth: 20mm - 150mm
Length: 30 mm - 180 mm
DIAMETER OF PACKGE ROLLMax 450 mm
POWER110v/220v/380v customized
WEIGHT600 kgs/set

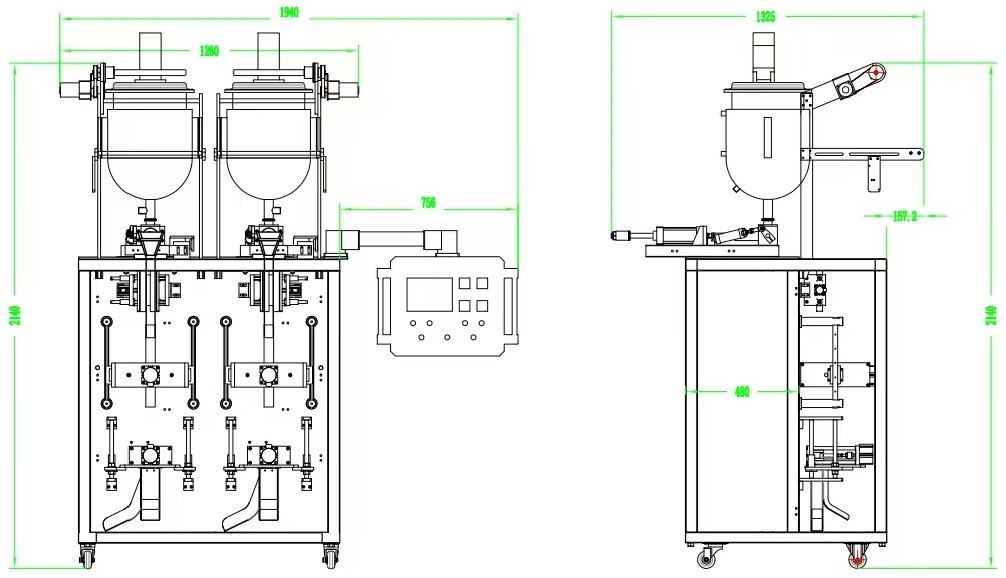

SIZE OF MACHINE1000*1400*2100mm
About FUBO:

FUBO  is professionally designed. It starts with a sketch and then is transformed into a 3D model, finally, it is prototyped using the latest 3D printing technology.

Shanghai FU-BO Packaging Machinery Co., Ltd. is a manufacturer of automatic packaging machinery with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food, beverage, cosmetics, chemicals, pharmaceuticals and other industries FU-BO main products as below:   VFFS PACKING MACHINE   BOTTLE FILLING PROCESS MACHINE   SHAPED POUCH PACKING MACHINE   CARTONING MACHINE & PALLETIZER Our products exproted to more than 40 countries, and feedback good reputation from our customers. We are aim at providing good service and create value to customers.
