VFFS irregular shape sachet packing machine:

The vertical liquid/sauce packing machine is mainly made of stainless steel, which is durable and simple in structure. It is convenient for workers to check and adjust the bag making process at any time, and it can also protect the hygiene and safety of the packaging materials. Food-grade stainless steel can be used for the parts in contact with the materials, which can not only effectively save manufacturing costs, but also ensure the food hygiene and safety of the materials.

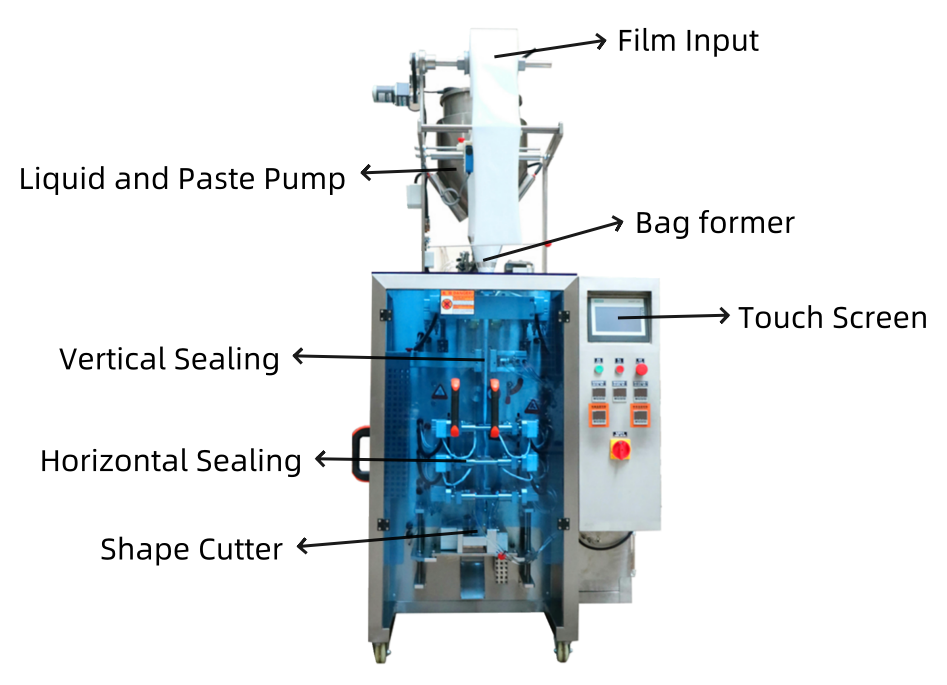

1. Film input device: This film drawing device is used to install bag-making materials of different materials and sizes. It has a simple structure and is easy to operate. The film drawing process is smooth, the film transport structure is stable, and the packaging efficiency is high.

2. Date printing device: It is used to print numbers such as production date and product batch number on the film, which is convenient for checking the production date of the packaged product. The printing font is neat and clear, and the printed numbers can be flexibly adjusted according to the different packaged products.

3. Touch screen control system: The PLC system is used to control the bag making speed and size, packaging weight and quantity of the packaging machine. There are two language systems, which can be switched at will according to needs, and the packaging parameters can be adjusted without stopping the machine.

4. Liquid/sauce pump: This equipment is made of food-grade 304 stainless steel material, which can ensure the hygiene and safety of packaging materials. The overall stability and durability are easy to clean. The pump can be customized according to different materials, the material metering is accurate, and the packaging speed is fast.

5. Bag former device: The corresponding bag former is customized according to different bag making sizes, and the manufacturing material is smooth and high precision. The film is pulled smoothly during bag making, which is convenient for forming, ensuring neat and beautiful sealing, and reducing bag making errors.

6. Vertical sealing device: Pull the two sides of the film to the middle through the former for vertical sealing. Select the longitudinal sealing pattern according to different bag making designs to make the bag seal firm, neat and tight to avoid leakage.

7. Horizontal sealing device: Seal the upper and lower parts of the bag, and adjust the temperature of the heated horizontal seal according to the different bag making materials. Reduce the occurrence of unclear or damaged sealing patterns due to excessive temperature; or leaking due to loose horizontal sealing due to low temperature.

8. Cutting device: Used for the final cutting of bag making. Cutters of different styles and shapes can be customized according to different customer requirements, such as: film cutters for cutting rounded corners, toothed or flat cutters, etc.


PRODUCT FUNCTION:

Vertical irregular shape bag packing machine can be used for packaging of liquid or paste materials such as juice, honey, ketchup, coffee liquid, enzyme beverage, balsamic vinegar, soy sauce, shampoo, cooking oil, mouthwash, jam, chili sauce, etc. For the metering packaging of different density, fluidity and mixed liquid/sauce products, suitable metering and feeding devices are customized according to the characteristics of different packaging materials. For example, liquid pumps and sauce pumps can ensure the accuracy of packaging material metering and the high efficiency of material packaging.

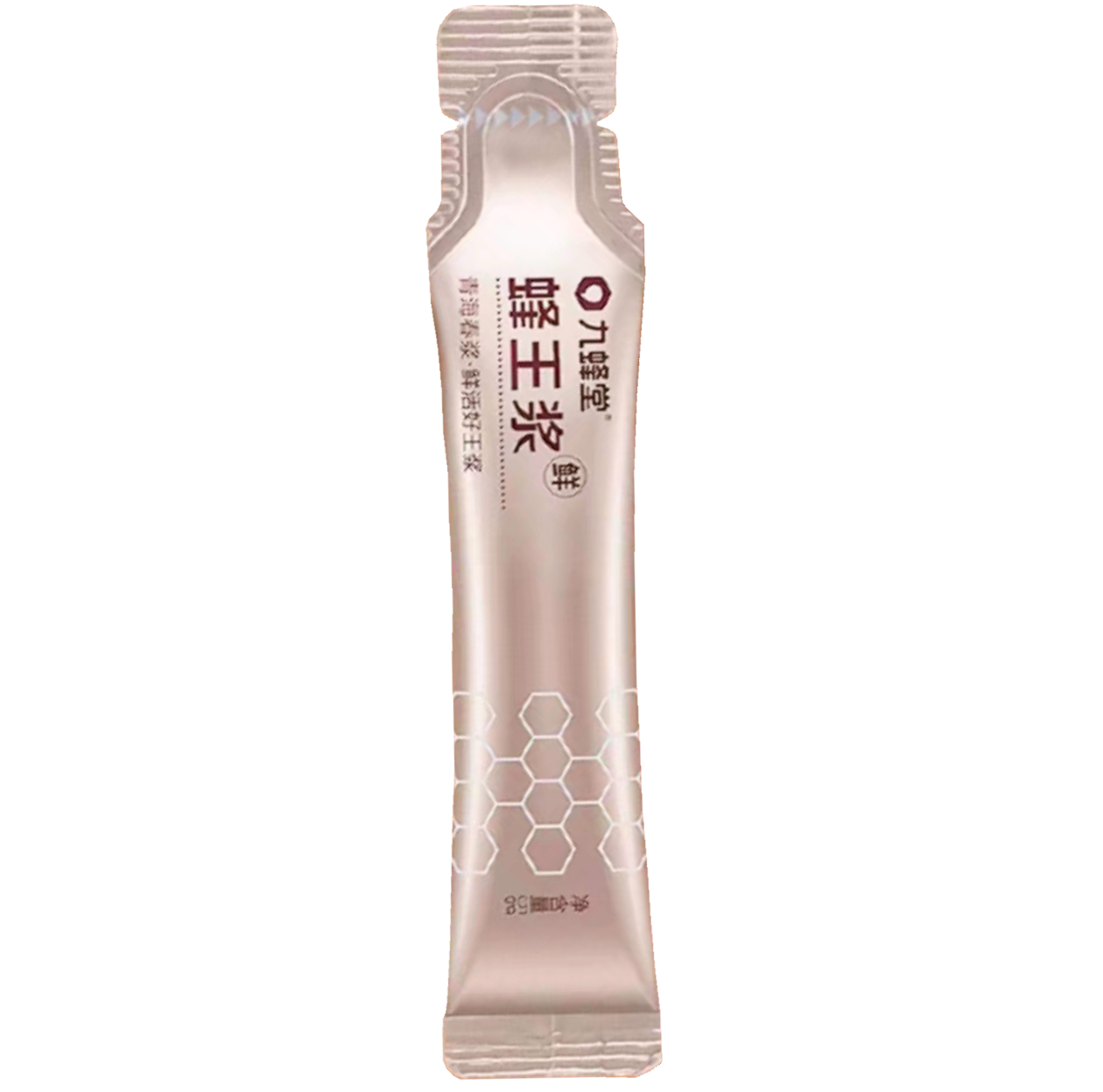

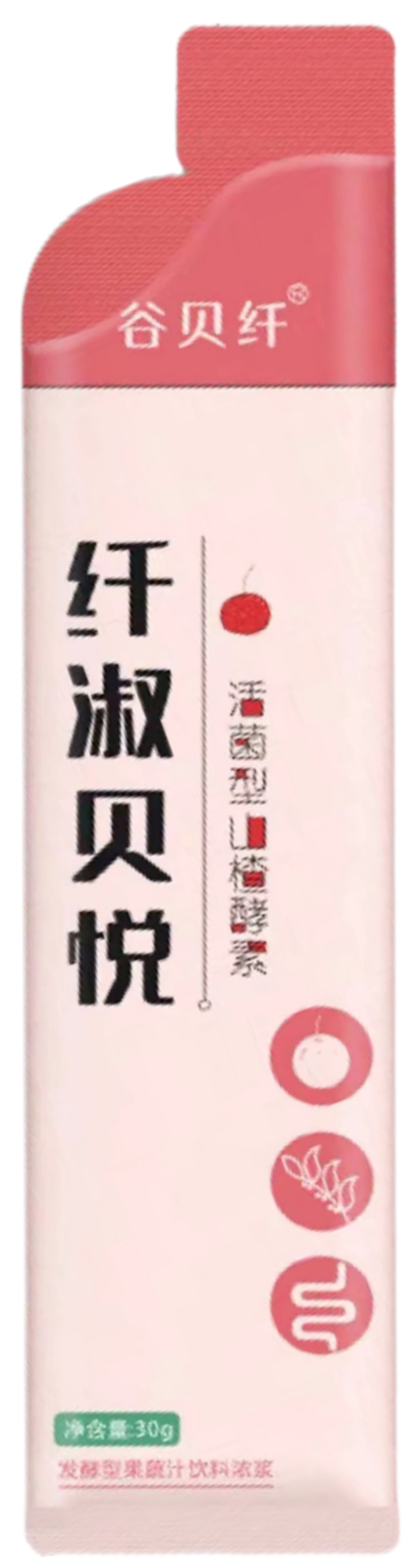

Vertical liquid/paste packaging machine can customize various types of bags according to customer requirements, and add toothed cutters, flat cutters, easy-tear edges, punching devices, special-shaped cutters and other bag making devices according to customer needs. This vertical packing machine can make special-shaped bags, stick bags, toothed cut bags, flat cut bags, linked bags, punched bags, 3-side sealed bags, 4-side sealed bags, rounded stick bags, etc. You can also choose suitable bag making materials according to the different characteristics of packaging materials, such as: color film, transparent film, aluminized film, and other composite films. Choose appropriate bag-making materials according to the different characteristics of the packaging materials to make the packaging bags more airtight, more beautiful and convenient to use.



Features of vertical liquid/paste packing machine:

1. The VFFS packaging machine equipment is equipped with safety protection to ensure the safety of users and meet the safety management requirements of the enterprise;

2. The machine can automatically complete the entire packaging process of feeding, metering and filling, bag making, coding, sealing, bag cutting, and finished product output, with accurate metering, smooth and efficient bag making process;

3. It adopts PLC servo system and pneumatic control system, with display touch screen device, clear display, easy to view. It is used to control the packaging speed and size of the packaging machine, and convenient to adjust the bag making parameters of the machine;

4. This packing machine is equipped with a fault display system, which can get timely help to troubleshoot the fault in case of a fault, avoid the phenomenon of empty or leaking bags, thereby increasing the packaging speed and reducing bag making errors;

5. Use an intelligent temperature control system to control the bag making and sealing temperature of the packing machine. It is convenient to adjust the temperature when changing the bag making materials, and the control is precise to ensure the smoothness and beauty of the seal;

6. The touch screen system can store a variety of different packaging parameters, which is convenient for arbitrary replacement during use. There is no need to reset and add parameters when changing the packaging products, and the operation is simpler and more convenient;

7. The film rolling device used has a simple and stable structure, which can ensure the smoothness and stability of the film drawing and bag making process, and the film-free bag making and sealing are precise. The external film placing device makes installation more convenient.

PARAMETER


TYPE OF MACHINEFBV-300Y VFFS PACKING MACHINE
PACKING SPEED/MINUTE25-50 bags/minute
PACKING DIMENSIONWidth: 20mm - 150mm
Length: 30 mm - 180 mm
Note: usually filling volume 10- 100 mls
DIAMETER OF PACKGE ROLLMax 450 mm
POWER110v/220v/380v customized
WEIGHT300 kgs/set
SIZE OF MACHINE1000*750*2300mm
