Multi Heads Weigher Packing Machine Introduction:
  1. 1. Multi-head packing machine is a fast, accurate and reliable packaging machine. It is commonly used for the packaging of pellet, roll, flake and irregular shape products. Multi heads packaging machine can use the loading weighing device: 8 head scale, 10 head scale, 12 head scale, 14 head scale, 16 head scale, etc. Each of head is a separate scale that can be weighing individyally.

  2. 2. Multihead weigher packaging machine automatically complete processes such as materials metering, bag former, filling, vertical sealing, horizontal sealing and cutting device, and date printer, finished in one operation.

  3. 3. High degree of automation: the entire weighing and packing process without personnel intervention, and an automatic alarm will occur in case of failure.

  4. 4. This packaging machine can be equipped with different conveying equipments according to the characteristics of the materials, for example Z type elevator, vibrating slope conveying equipment, bowl type conveyor and single bucket elevator.

Multi-head Weighing Packing Machine Application:


The automatic pouch packing machine can be equipped with measuring and feeding devices according to different shapes and characteristics of particle products, example for multi-head weighing equipment and volumetric cup measuring equipment. Automatic pouch packaging machine for food, chemical, pharmaceutical and other industries of product packaging.

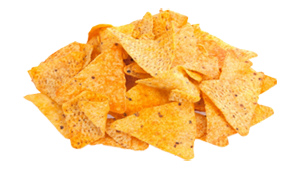

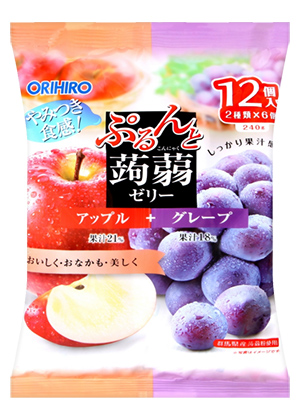

Multi-head weighing bag packing machine  is widely used in packing irregular shape, fragile or large granular products, such as jelly sachets, biscuits, potato chips, walnuts, puffy foods, crispy rice, candy, dried fruits, small hardwares, jujubes, etc.

Automatic bag packaging machines equipped with volumetric cup metering devices are used to pack regular shaped, loose, non-sticky or small granular products, such as coffee beans, rice, sugar, soybeans, sesames, peanuts, oatmeal cereals, melon seeds, grains, etc.



Packing machine supporting feeding equipment:

 In order to achieve fully automated packing, apporpriate feeding devices can be selected according to different packaging materials, reducing manual operation and improving work efficiency and saving costs.

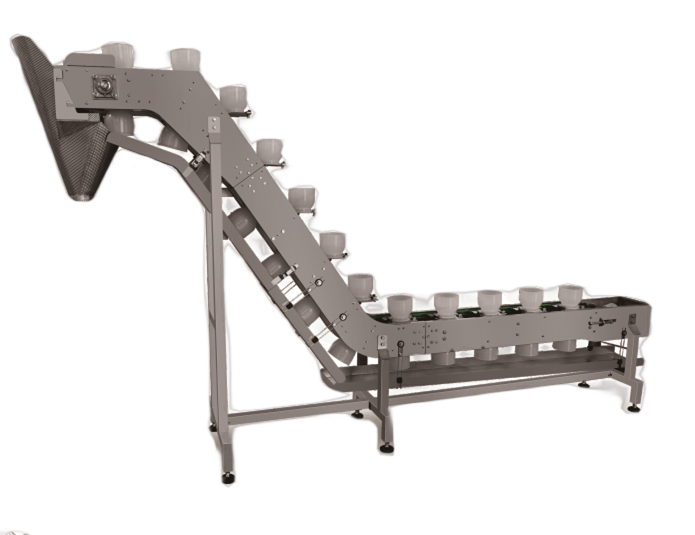

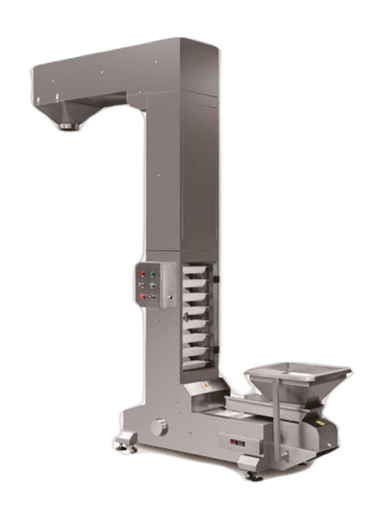

Equipment that can be used for powder、granular、liquid and paste materials feeding: Z type elevator(for granular products), single bucket elevator, bowl type conveyor, vibrating slope conveying equipment, vibraion screwing conveyor(for powder product), vacuum conveyor(for small granular or powder products)etc.

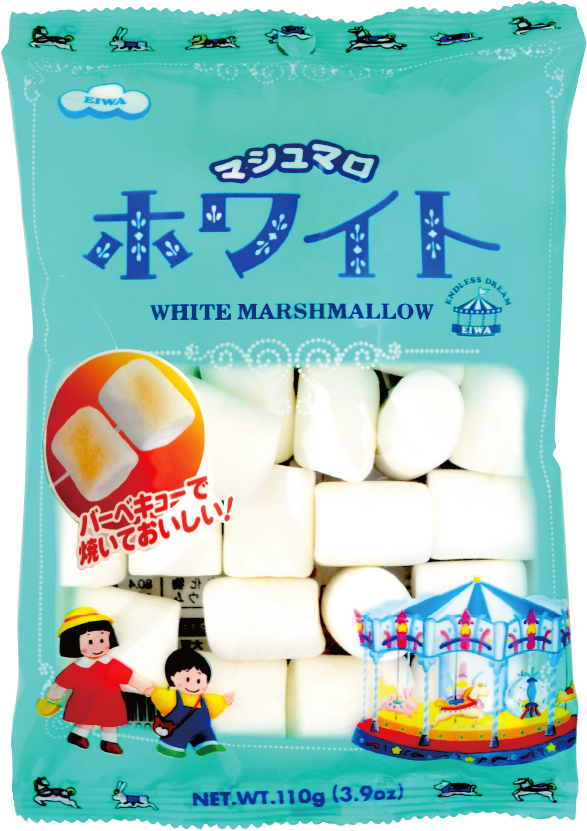

Multi-head weighing packing machine sample bag:


Automatic particles packaging machine can be used to make larger bags, bag style packing can be customer requirements, you can choose to customize the bag type: pillow bag, gusset bag and so on. In order to better package product materials to ensure the sealing of the bag, pouch materials with appropriate packing granular products characteristics should be used, such as PE, OPP, PVC, OPP/PE, PET/VMPET/PE, etc.



Automatic multi-head weighing packing machine parameters:
ModelKL-420 packaging machine
Making bag size(L) 60-300mm   (W) 60-200mm
Packing Speed30-80 bags/min
Power Supply220V/Hz
Measuring accuracy≤±1%
Packing materialOPP、PE、PVC、OPP/CPP、PET/VMPET/PE、OPP/PE
Compressed air consumption6kg/㎡
Air consumption0.3m³/min
Roll film sizeOuter diameter≤300mm, Inner diameter=74mm
Weight1000kg
Dimension
L4600*W2000*H3600mm
