Instructions of machine

FBV-300D VFFS packing machine consists of main packing machine, film input, liquid and paste pump, date printer, touch screen, sealing and cutting device, machines are controlled PLC system.

1. Double-line vertical packing machine: form fill seal, die cut, automatically counting, alarm, shape of sachets are customized;

2. Filler: piston filler for dosing, filling, filling range is flexible;

3. Buffer tank: mixing, heating, balancing pressure in tank;

4: Other functions are optional: date printing, output conveyor, easy tear, other packaging functions.

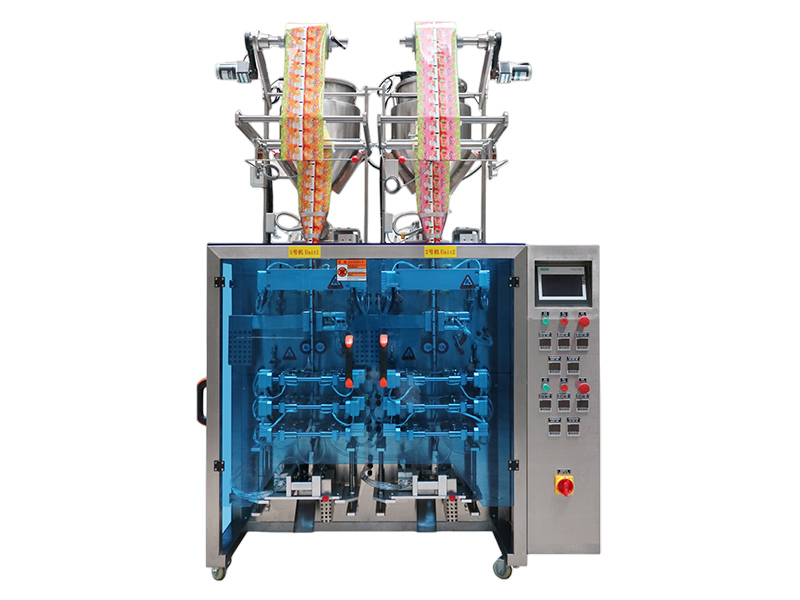

Double-line VFFS jelly packing machine

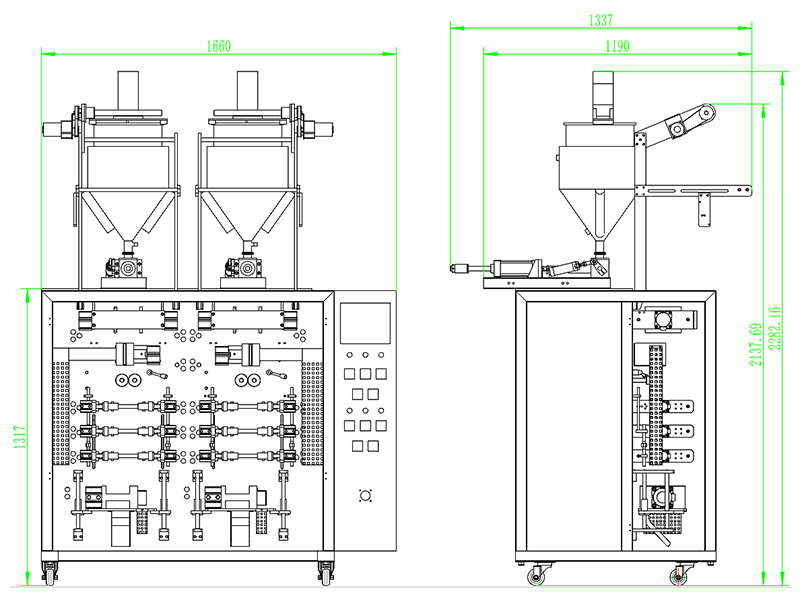

layout of double-line vffs jelly packing machine

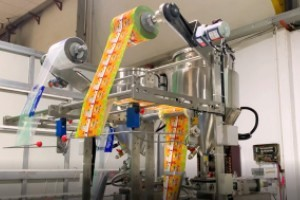

construction of shaped sachet jelly packing machine
Film Input

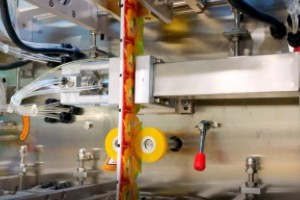

construction of shaped sachet jelly packing machine

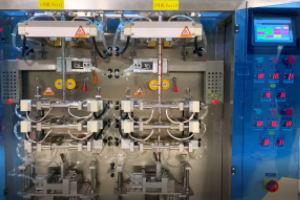

Main Packing Machine

construction of shaped sachet jelly packing machine

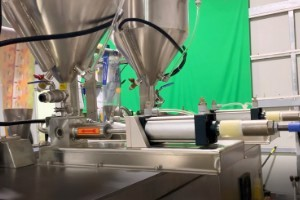

Liquid and Paste Pump:



construction of shaped sachet jelly packing machine

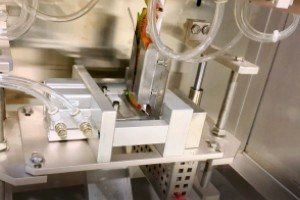

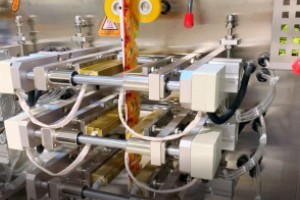

Vertical Sealing
construction of shaped sachet jelly packing machine
Horizontal Sealing
construction of shaped sachet jelly packing machine
Cutting Device

Parameter

Type Of Machine

Fbv-300D VFFS Servo System Packing Machine

Packing Speed/Minute

50-120 Bags/Minute

Packing Dimension

Width : 20mm - 150mm
Length : 30 Mm - 180 Mm

Diameter Of Packge Roll

Max 450 Mm

Power

110v/220v/380v Customized

Weight

600 Kgs/Set

Size Of Machine

1000*1400*2100mm


Application

FBV-3000D VFFS sachet packaging machine is widely used in liquid and paste products, such as jelly, cream, honey, milk, ketchup, shampoo, fruit jam, vinegar, soy sauce, yogurt, chili sauce, butter, cheese, bean sauce, enzyme beverage, cooking oil, salad dressing, blue berry jam, etc.




Shampoo




Fruit jam



Chocolate sauce




Butter






 Ketchup







Vinegar






 Chili sauce





 Honey

Double-line vertical form fill seal packing machine can be customized to make veries of sachets as below:

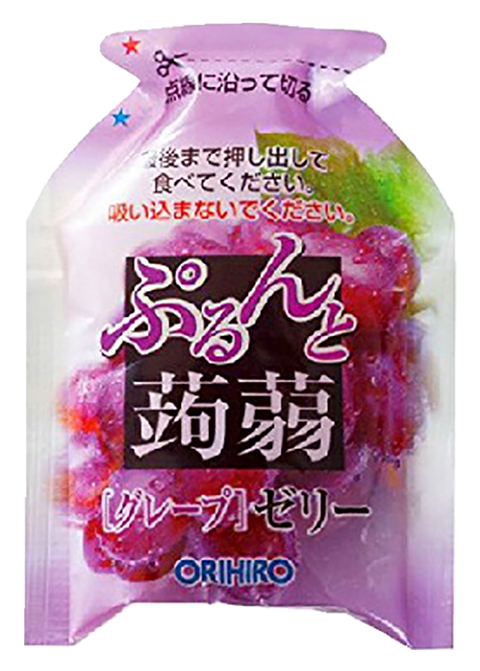

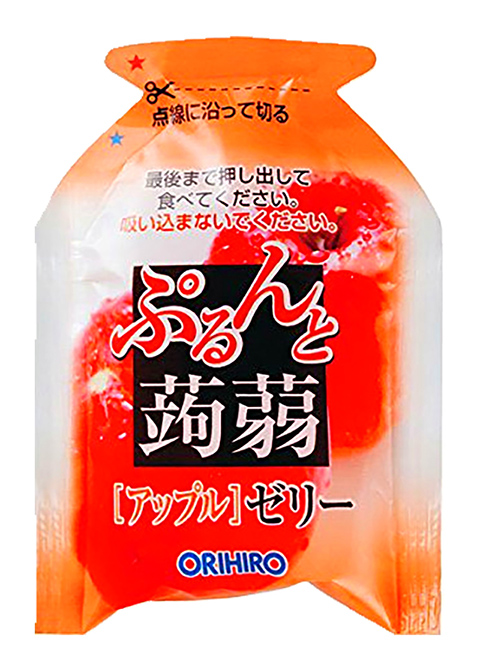

Sample sachet:  1. Special-shaped bag  2. Stick pouch  3. Pillow pouch  4. Gusset bag  5. 3-side seal pouch  6. 4-side seal pouch
