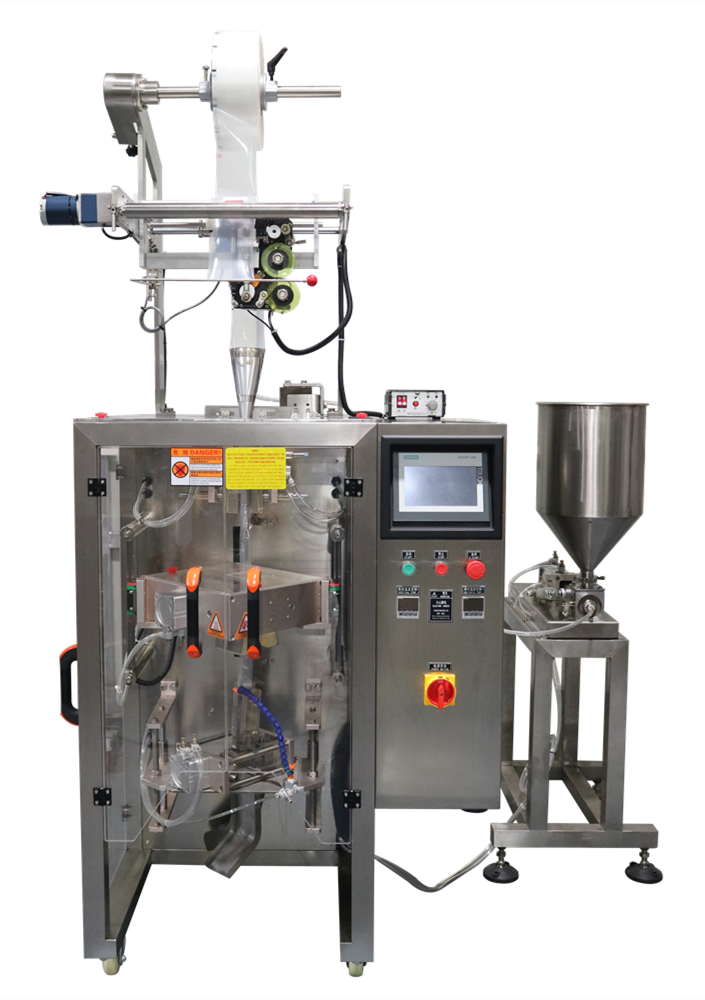

Name of machine: FBV-300SY irregular shape sachet jelly packing machine
It is suit for packaging jelly, fruit jam, shampoo, butter, salad dressing, ketchup, etc.
Functions: liquid pump, film input, form fill seal, date printer, sealing, cutting, bag former, etc.
Materials of packing machine: SS304 & 316L
Control mode: automatic
New:100% brant new made in China
VFFS jelly pouch packing machine including functions, main packing machine, film input, date printer, bag former, liquid pump, vertical sealing, horizontal sealing, shape cutting, machines are controlled by PLC system.
SHFB VFFS liquid packaging machine is equipped with a storage barrel, in which a heating or stirring device is added according to the characteristics of the packaged product, so that the material feeding is more uniform and the efficiency is higher.
Film Input Device: convenient to change the film roll for bag making, simple to operate. Firm installation, smooth film pulling, convenient for bag making.
Liquid Pump: Can feed materials and accurately measure packaging materials. Suitable liquid/sauce pumps can be customized according to the characteristics of packaging materials.
Horizontal Sealing Device: Sealing by heating, the sealing temperature can be precisely controlled. Ensure tight sealing to prevent material leakage.
Touch Screen System: Clear display, convenient for adjusting packaging parameters. Available in Chinese and English, and languages can be added as needed.
SHFB-300SY VFFS packing machine is used widely in packaging liquid and paste product, such as jelly, butter, salad dressing, honey, ketchup, cheese, shampoo, etc.
Irregular shape pouch packaging machines are suitable for pacaging products in different industries, such as food, medicine, etc. Suitable machines can be customized according to their characteristics.
Liquid and paste packing machine can produce pakaging bags of various sizes and styles according to customer requirements, such as irregular shape pouch, flat-cut bags, 3-side sealed bags, 4-side sealed bags, etc.
Appropriate bag-making materials can be selected according to different packaging materials to avoid excessive adhesion between materials and films, resulting in waste.
| Type of machine | FBV-300SY servo sysyem packing machine |
| Packing speed/minute | 25-50 bags/minute |
| Packing dimension | Width: 20mm-150mm Length: 30mm-180mm |
| Diameter of packge roll | Max 450 mm |
| Power | 110v/220v/380v cuustomized |
| Weight | 300 kgs/set |
| Size f machine | 1000*750*2300mm |
We providing one-station purchase service
Our products exported to more than 40 countires from all over the world
We are professional Manufacturer of pouches packing machine and bottles filling process line
We providing OEM service , testing and products designing for our customers
