High Quality Vertical liquid and paste form fill seal packing machine (stick bag can be customized)

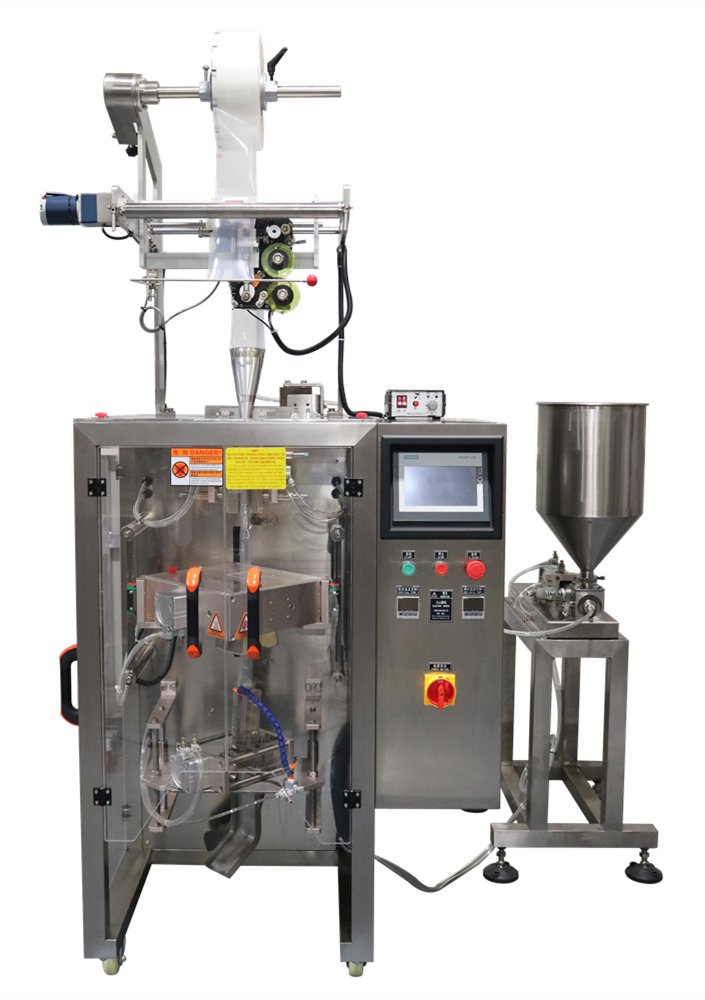

The packaging and bag making process of the vertical liquid/paste packing machine consists of a feeding device, a metering and filling device, a date printing device, a film input device, a vertical sealing device, a liquid and paste pump, a horizontal sealing device and a cutter. The overall bag making process is complete, controlled by a PLC system, and easy to operate.

1. Film input device: used to install bag making materials of different sizes and materials, which can ensure smooth and stable packaging of products. Suitable for various aluminum foil films, color films, transparent films, etc., simple installation and convenient replacement.

2. Liquid/paste pump: Select the appropriate metering and filling device according to the different products. For liquids and sauces of different densities and fluidities, different styles of delivery pumps can be configured to ensure safe and accurate delivery.

3. Bag former: Made of stainless steel, the appropriate bag former is customized according to the size of the bag. The film is folded through the metal panels on both sides to form the bag shape. The bag making efficiency is high and the bag shape is accurate and beautiful.

4. Sealing device: An independent temperature control device is used to accurately control the temperature of the sealing point, and the sealing pattern is customized according to the needs of Anzhai customers. It can avoid leakage of the bag due to excessively high or low temperature after changing the bag making material.

5. Cutter device: After the material is metered, filled and sealed, the horizontal seal is cut off. According to the customer's bag making requirements, cutters of different shapes and styles are customized, and different bag making devices are selected: easy-tear device, punching device, etc.

Vertical packing machines can be used to package liquid or paste products in the food industry, pharmaceutical industry, daily necessities industry or chemical industry. In order to better improve the packaging efficiency and the quality of the bag, the appropriate liquid/paste metering and feeding device can be customized according to the characteristics of the customer's products. The products that can be packaged by this packaging machine include: ketchup, enzyme beverages, honey, shower gel, jelly, balsamic vinegar, soy sauce, sesame oil, mouthwash, jam, shampoo, etc.

Jelly                      Cream                         Fruit jam                     Ketchup                    Chocolate sauce              Honey

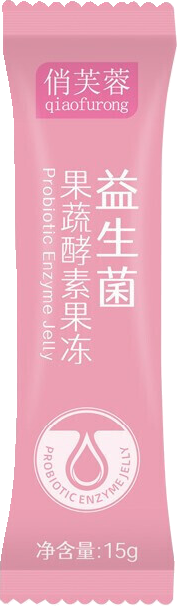

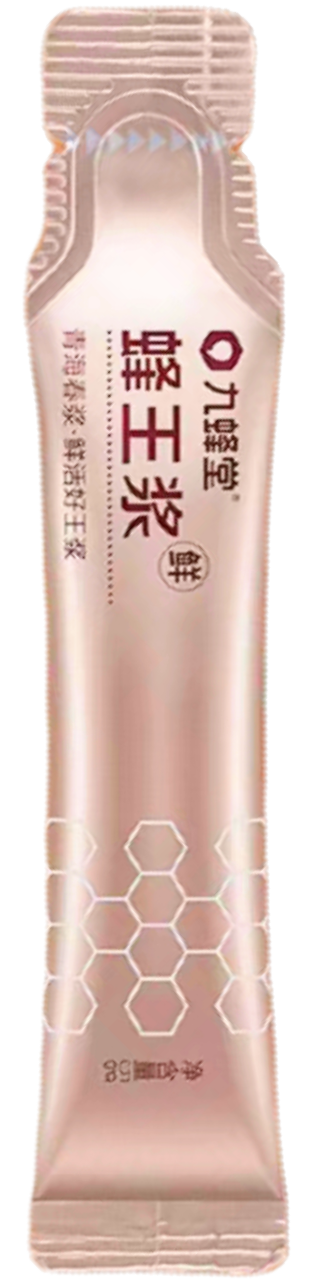

Liquid/paste packaging machines can customize various types of bags according to requirements, and add toothed cutters, flat cutters with easy-tear edges, special-shaped cutters and other bag-making equipment according to customer needs. The bags that can be made by this vertical packaging machine include stick bags, toothed cut bags, flat cut bags, connected bags, perforated bags, side-sealed pouches, rounded stick bags, etc. Suitable bag-making materials can be used according to the characteristics of the materials, such as composite films, OPP films, printed films, aluminized films and other different bag-making materials.

1. The packaging machine equipment is equipped with safety protection, which meets the safety management requirements of the enterprise and meets the food hygiene and safety requirements;

2. The machine can automatically complete the entire packaging process of feeding, metering and filling, bag making, coding, sealing, bag cutting, and finished product output. It is stable and smooth, with accurate metering and high bag making efficiency;

3. The overall bag making process of the packaging machine is controlled by the PLC system, which is simple to operate and precise to control, ensuring the beauty and convenience of bag making. At the same time, Chinese and English are added, which can be switched at will according to customer needs. ;

4. The packaging machine is equipped with a fault display system, which can get timely help to troubleshoot when a fault occurs, avoid the phenomenon of empty bags or leaking bags, and thus increase the packaging speed;

5. Use the intelligent temperature control system to control the bag making and sealing temperature of the packaging machine. When changing the bag making material, adjust the temperature, which can be accurately controlled to ensure the flatness and beauty of the seal;

6. Touch screen control system: It adopts a touch screen display with clear pictures, which is convenient for viewing and adjusting bag making parameters. It can also store a variety of bag making parameters, which is convenient for customers to switch at will when using it, without having to add it again;

7. The vertical packaging machine is made of stainless steel as a whole, with a stable structure, strong and durable materials, good high temperature resistance and corrosion resistance, can package a variety of different products, and is also convenient for cleaning after use.
