China VFFS stick sachet packaging machine (for powder and fine granular) - FUBO

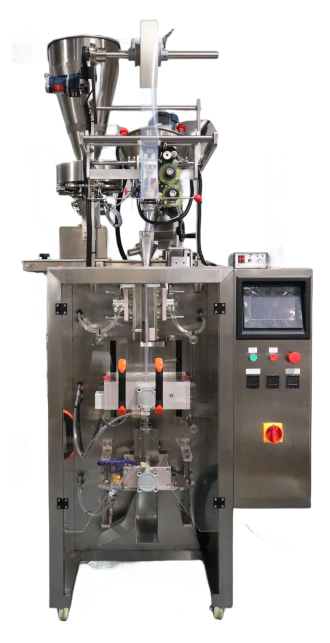

The bag making of the fully automatic powder and fine granular packing machine is mainly composed of film rolling device, date printing, powder metering device, volumetric cup device, bag former, vertical sealing device, horizontal sealing device, cutting equipment, finished product output and other devices. The entire packing machine is controlled by a PLC system to control the bag making speed or size, which is convenient for viewing and adjusting packaging parameters.

The vertical powder and fine granular stick bag packing machine is equipped with two metering and feeding devices: a measuring cup feeding device and a powder meter head, which are suitable for the packaging of powdered and fine granular products. The packaging machine can package powdered products or fine granular products separately, or mix two different products.

The vertical powder and fine granule packing machine can be made of stainless steel, with a clear overall structure, durable manufacturing materials, and convenient cleaning after use; the part in contact with the packaging material is made of food-grade stainless steel to ensure the hygiene and safety of the packaged products.

Film input device: used to install bag-making materials, convenient for installing film roll materials. The film is smooth during operation, the structure is stable, convenient for bag making and packaging, and the film release speed can be accurately controlled;

Powder metering device: the material metering device can be equipped according to the different characteristics of powder products to avoid the phenomenon of powder bridging and reduce the material discharge speed. The selected device can increase the utilization of materials, thereby reducing losses, and the design structure is simple and easy to clean;

Printing date device: can be used to print the date on the bag-making film, and the printed numbers are flexible, convenient and timely to adjust. When changing different bag-making materials, the printed numbers are clear, and the printed date will not be blurred due to different materials;

Touch screen control system: the touch screen is used to control the packaging machine to make bags, the packaging parameters are easy to view, the operation is simple, and the human-machine intelligence is intelligent. Through the touch screen setting and adjustment parameters, a variety of different parameters can be stored to improve the working efficiency of the machine;

Volumetric cup device: It is necessary to customize the measuring cup according to the different packaging products and weights of the customer, so as to facilitate the adjustment of the measuring cup and ensure that the accurate measurement of the particle packaging can be automatically completed, and the operation is simple;

Bag forming machine: Made of 304 stainless steel, it has a smooth surface, convenient and smooth film transportation, fast bag making and forming speed, and high efficiency. It is necessary to customize the corresponding size of the bag making and forming machine according to different bag making sizes;

Sealing device: It is equipped with an independent temperature control system to control the sealing temperature, so that the sealing of the bag making and sealing is more airtight. When a machine changes the bag making material, it can adjust the sealing temperature according to different materials to avoid the waste of bag making materials;

Cutting device: According to different bag making styles, the bag cutting of different shapes can be customized, with fast bag cutting speed and high efficiency, while keeping the cut of the finished bag neat, and the shape and size of the bag cutting are the same with high accuracy.

Appropriate metering and feeding devices can be selected according to different packaging products. Two metering and feeding devices of the same type can be installed, or two or three different metering and feeding devices can be installed. VFFS powder and granule packing machine is equipped with a spiral filler and a volumetric cup device, which has accurate metering and high packaging efficiency. It can be used in the food industry. The packaging of powder and granule products in the chemical industry and the pharmaceutical industry, such as:

Powder products: milk powder, protein powder, lotus root powder, coffee powder, fruit powder, milk tea powder, rice powder, black sesame powder, nut powder, etc.

                                       Milk powder                  Nuts powder                     Tea powder                 Seasoning powder               Fruit powder                     Coffee powder

Fine granule products: sesame, salt, nuts, oats, white sugar, red beans, peanuts, dried fruits, granules, rice, chocolate beans, etc.

                                       Salt                                  Sesames                            Oatmeal cereals                  Coffee beans                      Dried fruits                         Nuts

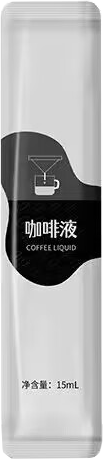

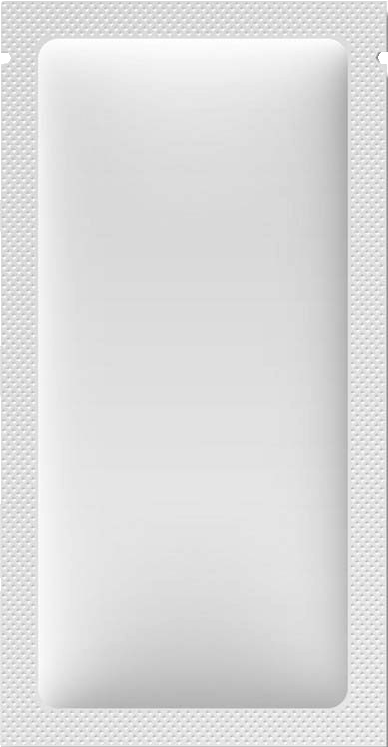

VFFS powder and granular packing machine can customize the bag type according to the packaging bag making requirements of the customer's products, such as pillow bags, gusset bags, 3-side sealed bags, 4r-side sealed bags, irregular shape bags, stick bags, rounded corner bags, connected bags, etc. In order to make the bag more beautiful, durable and convenient, detailed production is required. For example: custom-added punching devices, shape cutters, sealing patterns, easy-tear devices, etc. Or choose suitable bag-making materials according to the characteristics of the product. Composite materials such as paper/PE, PT/PE, PET/AL/PE, BOPP/PE, and tea filter paper can all be heat-sealed.
