VFFS powder and granular packing machine introduct:

If you want to buy a packing machine that can pack two materials, or a mixture of two materials, you can choose this powder and small granule double-feeding packaging machine. This machine has more functions than ordinary packing machines, and has several material packaging modes, which will be more efficient and practical to use. Compared with the purchase and use of the previous two packaging machines, a vertical double-feeding packaging machine can reduce the machine's floor space, save costs, improve efficiency, and increase the diversity of packaged products.

This double-feeding VFFS packing machine is equipped with a powder metering feeding device and a measuring cup metering feeding device, which can package powder and granule products. This vertical packing machine can package powder products or small granule products separately, and can also feed and package two materials at the same time, which has several more feeding and packaging methods than ordinary packaging machines. The vertical powder and granule packaging machine is well-made, sturdy and durable. It is the preferred choice of many customers who intend to buy packing machines. It is simple to operate and easy to use. Workers can switch the feeding device by themselves to complete the operation of changing packaging materials.This packaging machine has received a lot of praise from customers and has been exported to many countries, providing them with high-quality and beautiful packaging bags for their products.

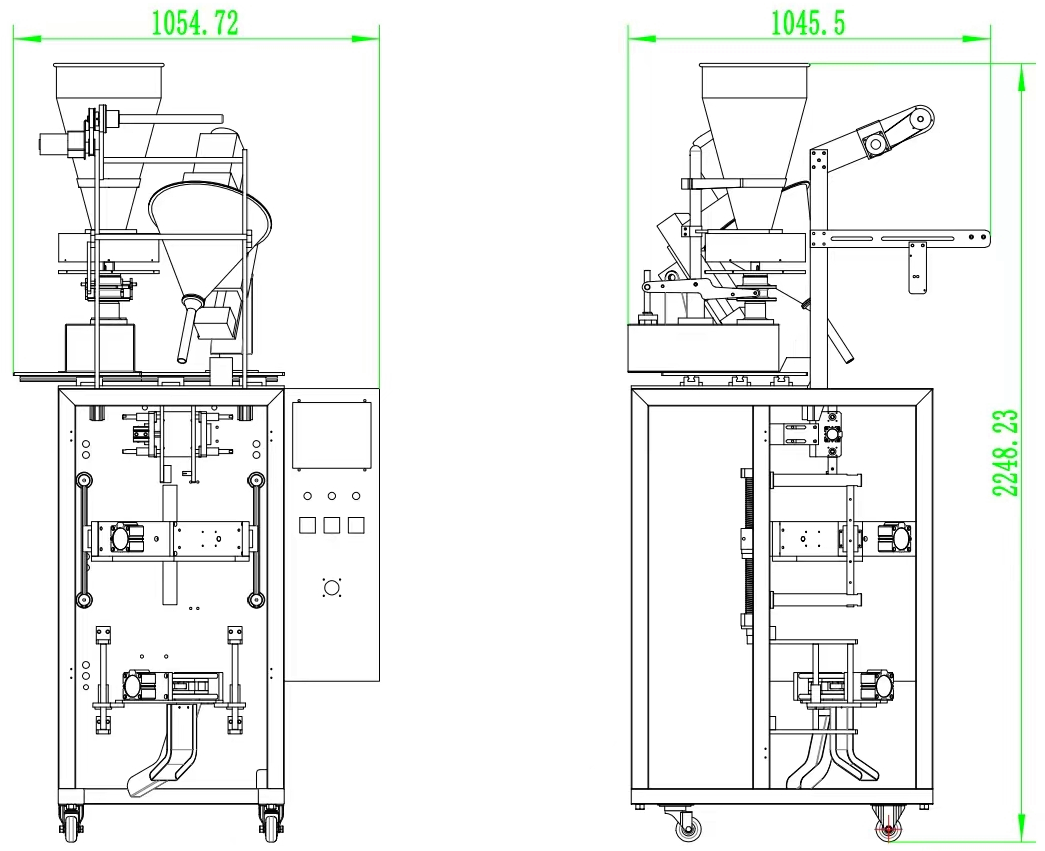

stick bag packing machine                   stick bag packing machine of layout

Applications:

FBV-300 vertical powder and granule packing machine is a double-feed mixed packaging equipment, which can be used in the food industry, chemical industry, pharmaceutical industry or health care products industry. The powder metering device installed in this packaging machine can package powder products such as milk powder, Chinese medicine powder, cocoa powder, tea powder, coffee powder, milk tea powder, protein powder, etc. The volumetric cup metering device installed in the vertical double-feed packaging machine can package granule products such as oatmeal, white sugar, salt, instant powder, monosodium glutamate, seeds, feed, desiccant, etc.




Vertical powder and granule packaging machine can produce bags of different shapes and styles, such as stick bags, pillow bags, rounded corner sachets, flat-cut bags, sachets with zigzag etc. To make different bags, you can choose to use appropriate cutter film tools, punching devices, and easy-tear devices. In order to ensure the sealing and aesthetics of the bag, you can choose different bag making materials, such as OPP/PE、OPP、PVC、PET/VMPET/PE、OPP/CPP、etc.

medical powder                    stick sachet                         probiotic powder packing machine                     medical powder sachet packing machine

Features of packing machine:

The packaging and bag making process of the fully automatic powder and fine particle packaging machine mainly consists of a film rolling device, date printing, volumetric cup equipment, bag forming device, vertical sealing device, horizontal sealing device, shape cutting device, finished product output, etc. The whole machine is controlled by a PLC system, which is simple to operate, precise packaging control, and convenient to view and adjust bag making parameters.

The VFFS powder and fine particle stick sachet packing machine is equipped with two metering and feeding devices: a measuring cup feeding device and a powder auger filler, which are suitable for the packaging of powdered and fine particle products. The vertical powder and small particle packing machine can package powdered products or fine particle products separately, or mix two different products. It can also package powdered products and fine particle products according to the packaging material requirements, which is convenient to adjust and has high packaging efficiency.

1. The vertical powder and granular sachet packing machine can automatically complete the packaging and bag making process: metering and feeding, film drawing, date printing, bag making, sealing, bag cutting, finished product output and other parts. The overall operation is simple and the control is precise;

2. This packing machine is made of stainless steel as a whole. The material is solid, has good high temperature resistance and corrosion resistance, and has a long service life. The part in contact with the packaged product is made of food-grade 304 stainless steel to ensure the safety of the packaged product;

3. Touch screen control system has two languages, Chinese and English, which can be switched at will according to the customer's usage requirements. The color display screen is used, and the display is clear and easy to view. It can also store a variety of packaging parameters without re-adding;

4. The sealing part uses an independent temperature control device, which is convenient for controlling the temperature and can be accurately controlled. Avoid the phenomenon of material damage after changing different bag making materials, or leakage due to poor sealing at the sealing part;

5. The packing machine is equipped with a highly sensitive label photoelectric eye device, which can accurately locate the sealing and bag cutting positions through intelligent cursor sensing to ensure accurate positioning, each bag is the same size, and the weight of the packaged product is consistent.

Parameters:

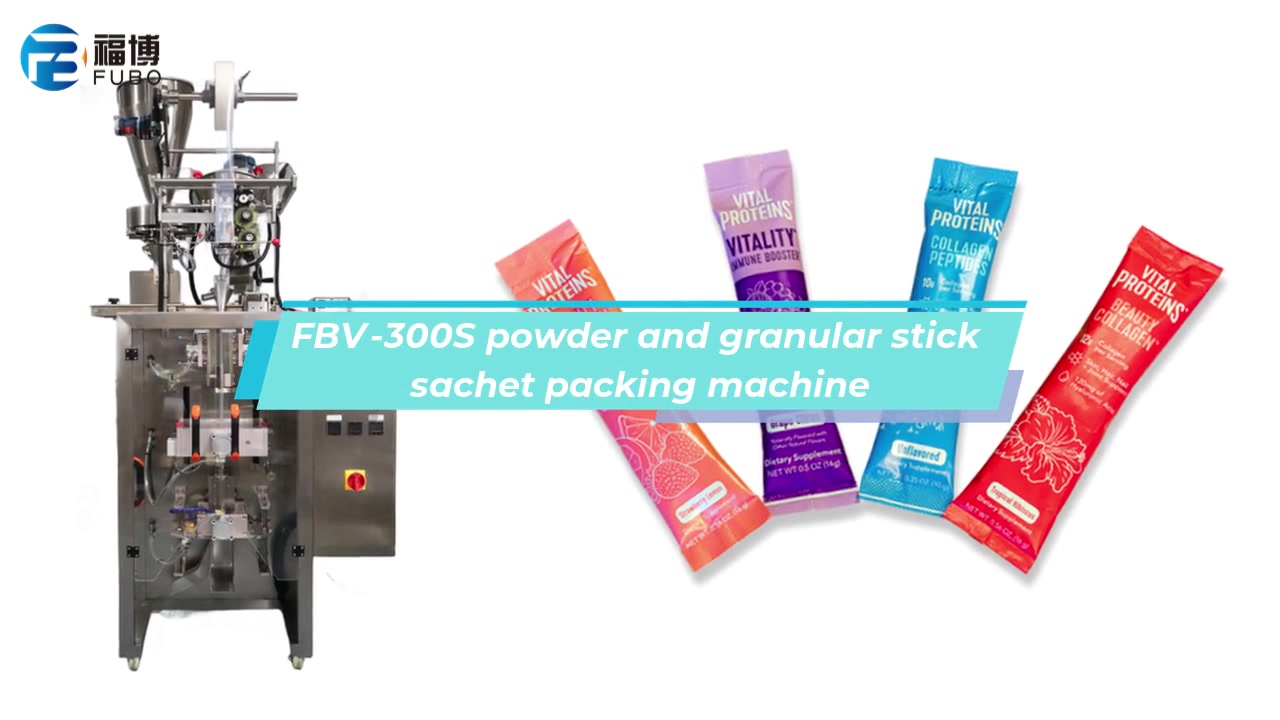

Type Of Packing MachineFBV-300S VFFS Servo System Packing Machine
Packing Speed/Minute25-50 Bags/Minute
Packing DimensionWidth : 20mm - 150mm       Length : 30 mm - 180 mm
Diameter Of Packge RollMax 450 Mm
Power110v/220v/380v Customized
Packaging Machine Weight  300 Kgs/Set
Size Of Packing Machine 1000*750*2300mm
