Instruction of machine:

 FBV-300SY IRREGULAR SHAPE SACHET packing machine including functions, liquid and paste pump, main packaging machine, film input, date printer, bag former, vertical sealing device, horizontal sealing device, cutting device, finished product conveyor, machines are controlled by PLC system.

Irregular shaped pouch packaging machine shell and all packing products touching parts are made of stainless steel.


liquid packaging machine             layout of packing machine



VFFS packaging machine details are introduced:

Understand the machine state and packaging process when the machine iis working through the following VFFS sachet packing machine detail drawing.

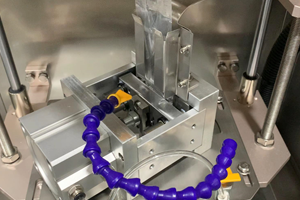

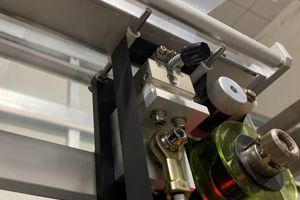

     construction of irregular shape sachet packing machine         construction of irregular shape sachet packing machine         construction of irregular shape sachet packing machine         construction of irregular shape sachet packing machine

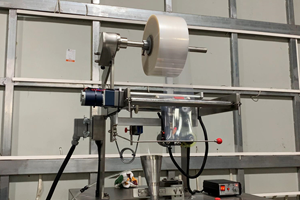

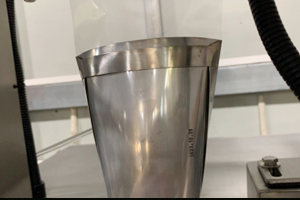

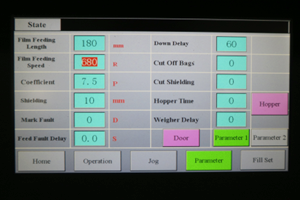

      Film Input                                           Date Printer                                       Bag Former                                        Touch Screen

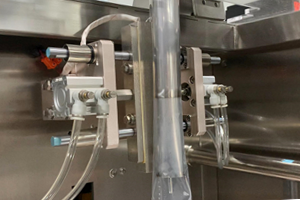

     construction of irregular shape sachet packing machine        construction of irregular shape sachet packing machine        construction of irregular shape sachet packing machine        construction of irregular shape sachet packing machine

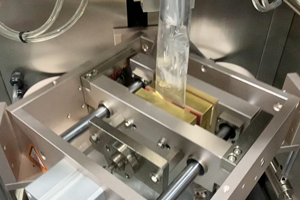

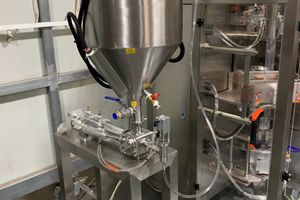

       Liquid And Paste Pump                     Vertical Sealing Device                       Horizontal Sealing Device                  Cutting Device


Weighing and Measuring Equipment of Packing Machine:

 Choosing the right vertical packing machine, it is necessary to choose weighing and measuring devices according of different packing materials. For example, for granular products, choose to install multi-head weigher or filler cup measuring equipment. Powder products can choose powder auger filler equipment. Liquid and paste products can choose liquid pump, paste pump and other metering equipment.


liquid and paste pump of packing machine

   Liquid And Paste Pump


multi heads weighing of packing machine



Multi Heads Weighing


auger filler of packing machine                    Powder Auger Filler


Application:

 VFFS IRREGULAR SHAPE SACHET PACKAGING MACHINE is widely used in packing liquid and paste product, such as enzyme beverage, honey, juice, salad dressing, jelly, mustard, cream, fruit jam, yogurt, etc. Select the corresponding material conveying pump according to the different characteristics of the packaged liquid or paste product.




         Honey                               Shower Gel                               Mustard                            Salad Dressing                    Chocolate Sauce                           Jelly


VFFS beverage irregular shape sachet packaging machine can be customized to make all kinds of different sachets, example for:

Sample Sachet::   1. Irregular shape sachet   2. Stick sachet with zigzag   3. Pillow pouch   4. Multi-linking sachets   5. 3-side seal pouch   6. 4-side seal pouch



Parameters:
TYPE OF PACKAGING MACHINEFBV-300Y VFFS PACKING MACHINE
PACKING SPEED/MINUTE25-50 bags/minute
PACKAGING DIMENSION

Width: 20mm-150mm

Length: 30mm-180mm

Note: usually filling volume 10-100mls

DIAMETER OF PACKAGE ROLLMax 450 mm
POWER110v/220v/380v customized
WEIGHT300 kgs/set
SIZE OF MACHINE1000*750*2300mm
