Instructions of machine

FBV-300Y irregular shape sachet packing machine including function main packing machine, liquid and paste pump, film input, date printer, touch screen, sealing and cutting system, bag former, machine are controlled by PLC system.

VFFS jelly sachet packaging machine optional functions: 1. automatic pump jelly packing machine   2. washing system   3. jelly hot filling   4. UV sterilizing lamp


jelly sachet packing machine

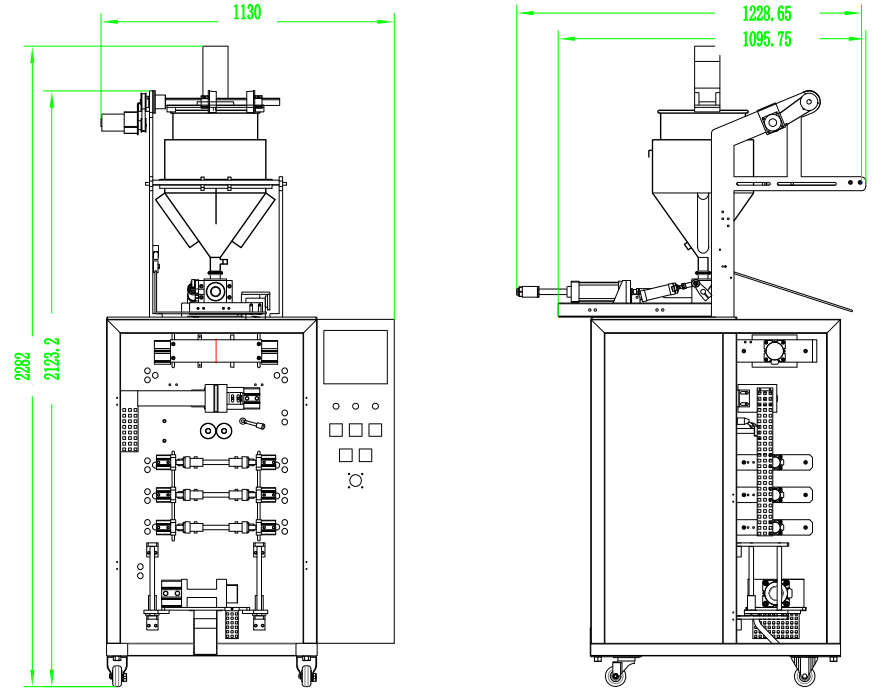

layout of jelly sachet packing machine

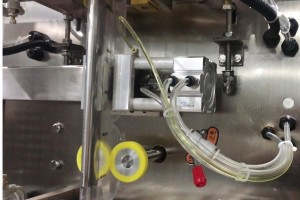

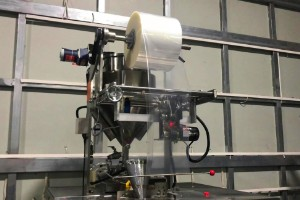

construction of jelly packaging machine

  Film Input

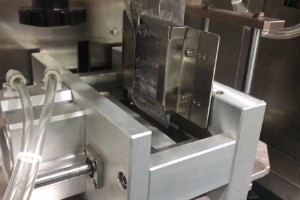

construction of jelly packaging machine

Date Printer

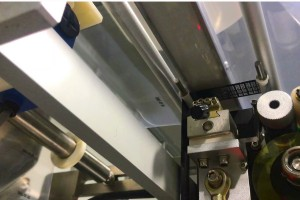

construction of jelly packaging machine

Vertical Sealing

construction of jelly packaging machine

Sealing and Cutting



Parameter

Type of machineFbv-300y vffs packing machine
Packing speed/minute25-50 bags/minute
Packing dimensionWidth: 20mm - 150mm
Length: 30 mm - 180 mm
Note: Usually filling volume 10- 100 mls
Diameter of packge rollMax 450 mm
Power110v / 220v / 380v customized
Weight300 kgs/set
Size of machine1000*750*2300mm


Application

 VFFS sachet packaging machine is widely applied to pack liquid and paste products including juice, milk, honey, ketchup, cream, enzyme beverage, milk, soy sauce, vinegar, shampoo, fruit jam, oil, chili sauce, salad dressing, butter, shower gel, cheese and so on.




Mashed potato




Ketchup



Cooking oil




Blueberry jam




Fruit jam




Chili sauce




 Honey




Shampoo


FBV-300 VFFS jelly packaging machine can be customized to make all kinds of different sachets as below, except liquid and paste products, it is suitable for packing powder and granular products by changing fillers.

Sample sachet:    1. Special-shaped pouch   2. Pillow pouch    3. Stick sachet   4. Gusset bag    5. 3-side seal pouch   6. 4-side seal pouch

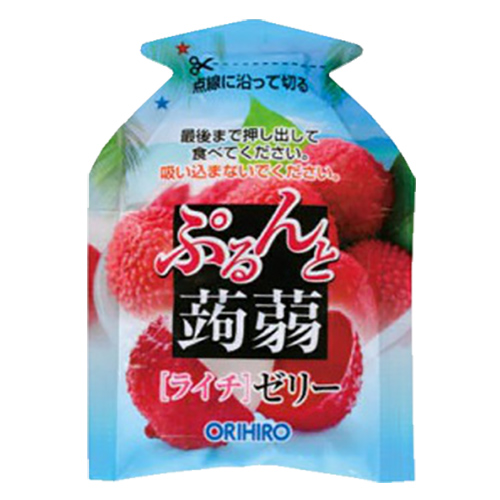

  1. jelly sachet packing
    jelly packaging machine
    jelly packing machine
    jelly pouch packing
