Instructions of packing machine:


FBV-300Y VFFS  packing machine including functions main packaging machine, liquid and paste pump, date printer, film input, touch screen, vertical and horizontal sealing, shaped cutting, machine is controlled by PLC system.

Computer/PLC control system, photoelectric tracking, to maximize the whole machine's control precision, reliability and the intellectualized degree.

Mixing device, hopper heating device as optional according to product character. Packaging machine shell and all food touching parts are made of stainless steel.

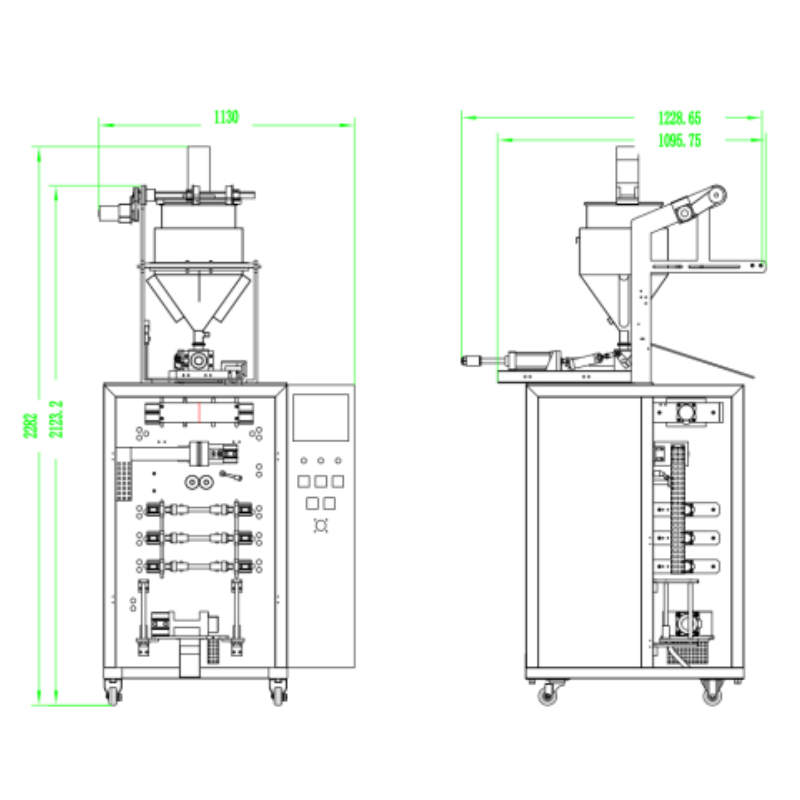

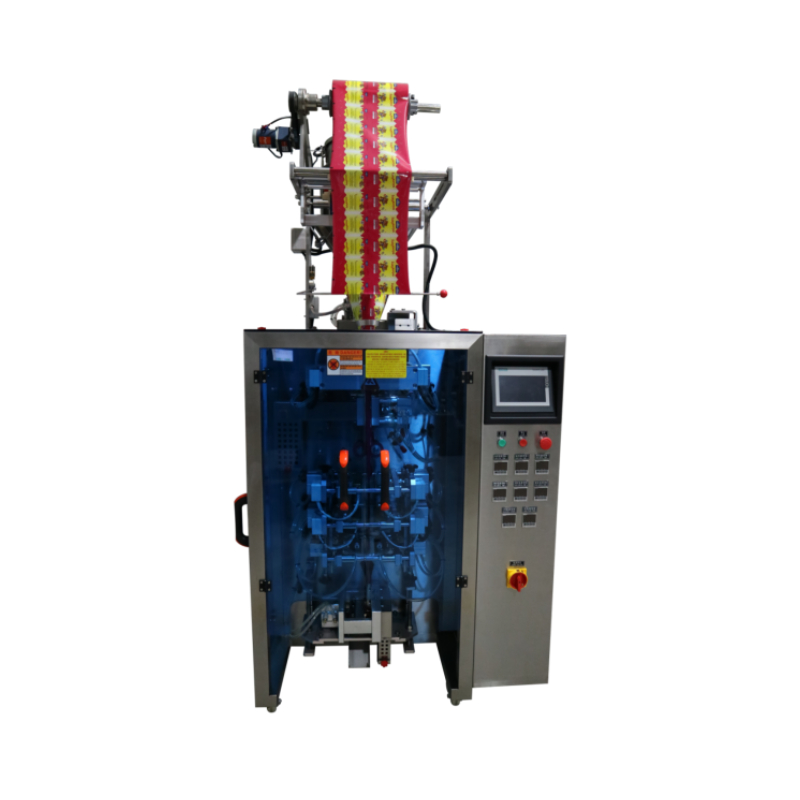

jelly pouch packing machinelayout of jelly pouch packing machine


construction of jelly pouch packing machine

Film input

construction of jelly pouch packing machine

Date printer

construction of jelly pouch packing machine

Touch screen

           construction of jelly pouch packing machine

Vertical sealing

construction of jelly pouch packing machine

Horizontal sealing

construction of jelly pouch packing machine

Cutting device


Applications

 VFFS sachet packing machine is suitable for packing liquid and paste, such as jelly、cream、butter、soy sauce、vinegar、peanut sauce、ketchup、honey、shampoo、bean sauce、cooking oil、chili sauce、hair conditioner、medical and chemical liquid/paste、curry、rice wine、juice、fruit jam、salad dressing、enzyme beverage、etc.

Butter

Cream

Fruit jam

Chocolate Sauce

Chili Sauce

Ketchup

Sesame Sauce

Shampoo

Vinegar

Honey

 FBV-300Y VFFS jelly pouch packaging machine can be customized to pack different of pouches as below:

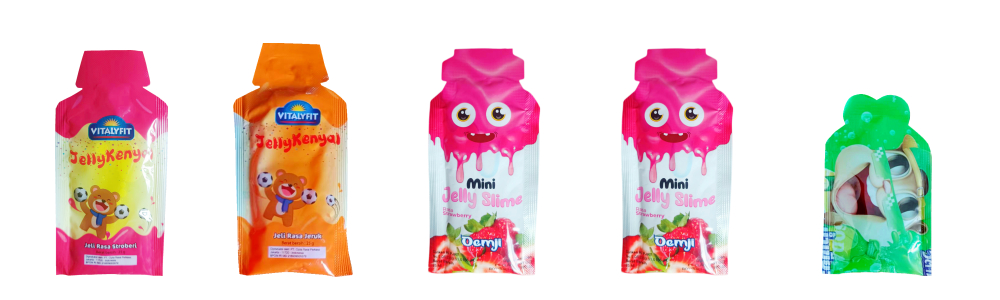

Sample bag:     1、Special-shape bag    2、Stick sachet    3、Pillow bag    4、3-side seal pouch    5、4-sideseal pouch    6、Gusset bag    7、Sachet with flat cut




TYPE OF MACHINE

FBV-300Y VFFS PACKING MACHINE

PACKING SPEED/MINUTE

50-120 bags/minute

PACKING DIMENSION

Width : 20mm - 150mm
     Length : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL

Max 450 mm

POWER

110v/220v/380v customized

WEIGHT

600 kgs/set

SIZE OF MACHINE

1000*1400*2100mm
