Shaped Pouch Packing Machine
VR
  • Product Details

Instruction of machine

  FBV-300D VFFS jelly pouch packing machine including functions, main packing machine, liquid and paste pump, film input, date printer, touch screen, bag former, vertical and horizontal device, cutting device, machines are controlled by PLC system.

 VFFS sachet packaging machine are made of SS304 & SS316L, we provide OEM service and oversea service.

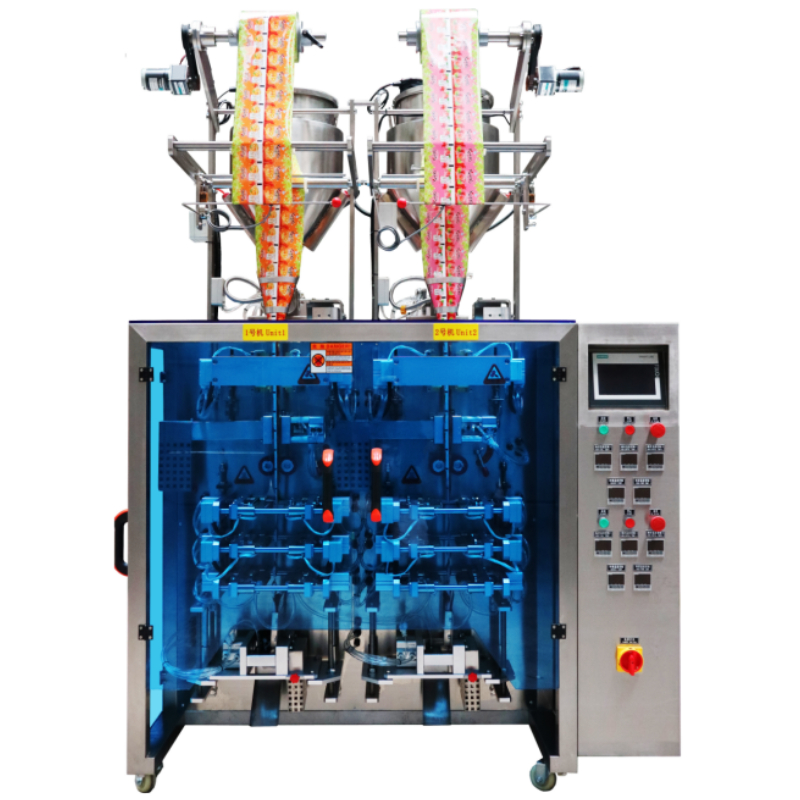

VFFS jelly sachet packaging machine

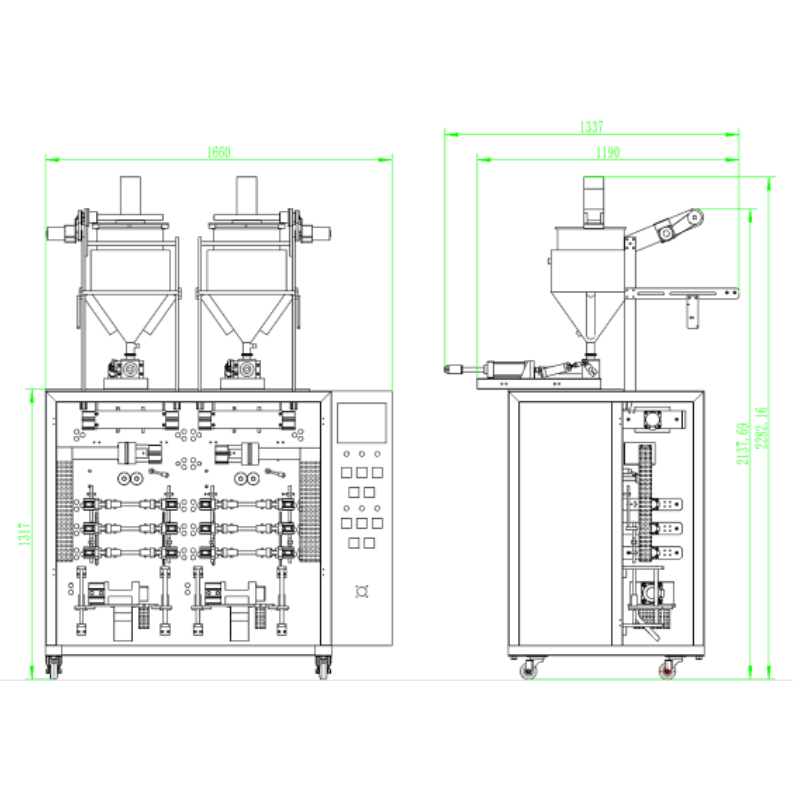

layout of vffs jelly sachet packing machine
construction of jelly sachet packaging machine

Film Input


construction of jelly sachet packaging machine

Date Printer


construction of jelly sachet packaging machine

Vertical Sealing


construction of jelly sachet packaging machine

Horizontal Sealing


Applications

 Double-line VFFS packaging machine is widely used in packing paste and liquid products, such as jelly, ketchup, cream, honey, enzyme beverage, coconut water, peanut butter, fruit jam, cheese, salad dressing, syrup, yogurt, vinegar, cooking oil, blue berry jam, etc.

Fruit Jam


Chocolate Sauce


Butter


Cream


Peanut Sauce


Ketchup


Vinegar


Cooking oil


FBV-300D VFFS jelly sachet packing machine can be customized to make veries of sachets as below:

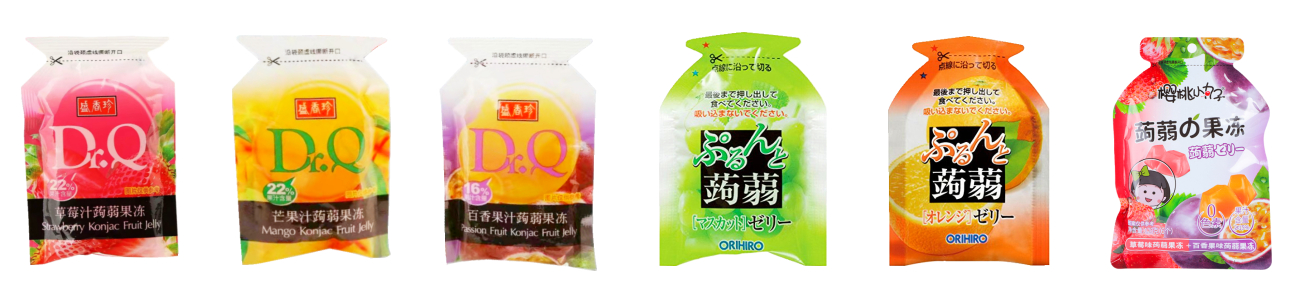

Sample Sachet:    1、Special-shaped pouch   2、Stick Sachet    3、Pillow Pouch    4、Gusset Bag    5、3-Side Seal Pouch     6、4-Side Seal Pouch    7、Sachet With Flat Cut


PARAMETERS


TYPE OF MACHINE

FBV-300D VFFS SERVO SYSTEM PACKING MACHINE

PACKING SPEED/MINUTE

50-120 bags/minute

PACKING DIMENSION

Width/ : 20mm - 150mm
Length/ : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL

Max 450 mm

POWER

110v/220v/380v customized

WEIGHT

600 kgs/set

SIZE OF MACHINE

1000*1400*2100mm
