Shaped Stick Sachet Packing Machine
Shaped Stick Sachet Packing Machine
Irregular shaped pouch packing machine for water
Irregular shaped pouch packing machine for water
Irregular shaped pouch packaging machine for butter
Irregular shaped pouch packaging machine for butter
Abnormal Pouch Packaging Machine For Cosmetic/Shampoo
Abnormal Pouch Packaging Machine For Cosmetic/Shampoo
Honey Sachet Packaging Machine

Honey Sachet Packaging Machine

Name of machine: FBV-300Y honey packing machine

Functions: form fill seal, date printer, shape cut,

Materials of machine: SS304 & SS316L

Control mode: automatic

New: 100% brant new made in China

SEND INQUIRY NOW
SEND INQUIRY NOW
  • Product Details

Instruction of machine

  FBV-300SY IRREGULAR SHAPE SACHET packing machine including functions, main packing machine, liquid and paste pump, film input, touch screen, date printer, vertical sealing and horizontal device, cutting device, machines are controlled by PLC system.

VFFS packaging machine optional functions:     1. buffer tank   2.  piston filler   3. CIP washing system


sahped sachet honey packing machine

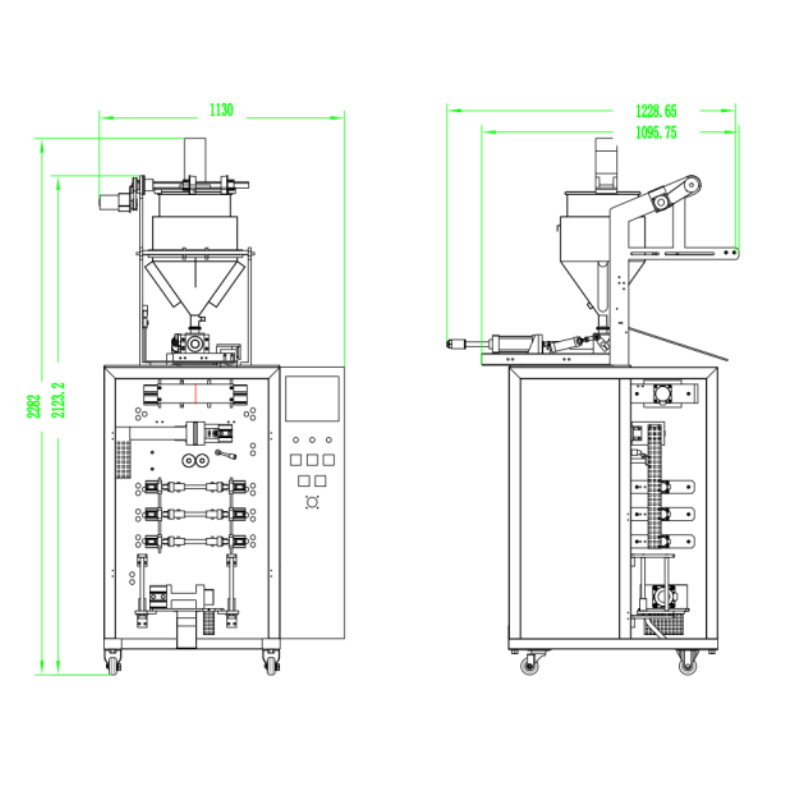

layout of honey sachet packaging machine
construction of honey sachet packaging machine

Film Input

construction of honey sachet packaging machine

Date Printer


construction of honey sachet packaging machine

Bag Former


construction of honey sachet packaging machine

Vertical Sealing


construction of honey sachet packaging machine

Horizontal Sealing


construction of honey sachet packaging machine

Cutting Device



APPLICATIONS

VFFS sachet packaging machine is widely used in packing liquid and paste products, such as honey, soy sauce, butter, fruit jam, oil, ketchup, vinegar, shampoo, chili sauce, syrup, cream, salad dressing, chocolate sauce, rice wine, blue berry jam, enzyme beverage, etc,


Shampoo

Fruit Jam

Ketchup

Chocolate Sauce

Butter

Honey

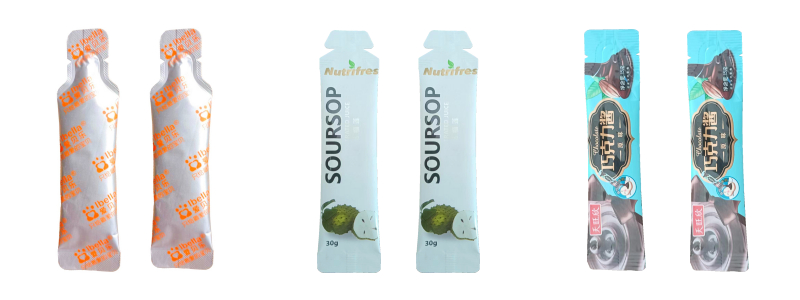

FBV-300SY irregular shape sachet form fill seal packing machine to make stick bags with customized shape as below

Sample Sachet:   1、Irregular Shape Sachet  2、Stick Sachet  3、Pillow Pouch  4、3-Side Seal Pouch  5、4-Side Seal Pouch



PARAMETERS


TYPE OF MACHINE

FBV-300Y VFFS PACKING MACHINE

PACKING SPEED/MINUTE

25-50 bags/minute

PACKING DIMENSION

Width ： 20mm - 150mm
     Length ： 30 mm - 180 mm
     Note: usually filling volume 10- 100 mls

DIAMETER OF PACKGE ROLL

Max 450 mm

POWER

110v/220v/380v customized

WEIGHT

300 kgs/set

SIZE OF MACHINE

1000*750*2300mm









Basic Information
  • Year Established
    --
  • Business Type
    --
  • Country / Region
    --
  • Main Industry
    --
  • Main Products
    --
  • Enterprise Legal Person
    --
  • Total Employees
    --
  • Annual Output Value
    --
  • Export Market
    --
  • Cooperated Customers
    --

Recommended

  • Shaped Stick Sachet Packing Machine
    Shaped Stick Sachet Packing Machine
    1、Material filling2、Film input3、Date printer4、Touch screen5、Vertical sealing6、Horizontal sealing and cutting7、Finished product output
  • Irregular shaped pouch packing machine for water
    Irregular shaped pouch packing machine for water
    Name of machine: FBV-50YD IRREGULAR SHAPE SACHET packaging machineFunctions: form fill seal, hot filling, shape cut, date printer, film inputMaterials of machine: SS304Control mode: automaticNew: 100% brant new made in chinaOriginal supplier: Shanghai FUBO packaging machinery in China
  • Irregular shaped pouch packaging machine for butter
    Irregular shaped pouch packaging machine for butter
    1. 1 set of Die cut irregular shape pouch packaging machine, exported to Malaysia customer. It is suit for packing juice, enzyme beverage, shampoo, cosmetic liquid, honey products etc.2. Function of machine: form fill seal, film input, date printer, shape cut3. Mterials: SS304 & SS316L4. 100% brant new, made in China
  • Abnormal Pouch Packaging Machine For Cosmetic/Shampoo
    Abnormal Pouch Packaging Machine For Cosmetic/Shampoo
    1. 3 sets of irregular shape pouch shampoo/cosmetic packaging machines, exported to singapore customer.  It is suit for packing cosmetic, shampoo, juice, enzyme beverage, sauce products etc.2. Function of machine: form fill seal, date printer, shape cut, film input3. Materials: SS304 & SS316L4. 100% brant new, made in China
