Instructions of machine

FBV-50YD Die cut irregular shape sachet packing machine including functions main packing machine, liquid and paste pump, film input, date printer, touch screen, machines are controlled by PLC system.

Irregular shape pouch packaging machine feature:     PLC control, touch screen English and Chinese operation.  PID temperature control.  Power supply: According to the requirements of customers in various countries.  Each machine has a CE certificate.

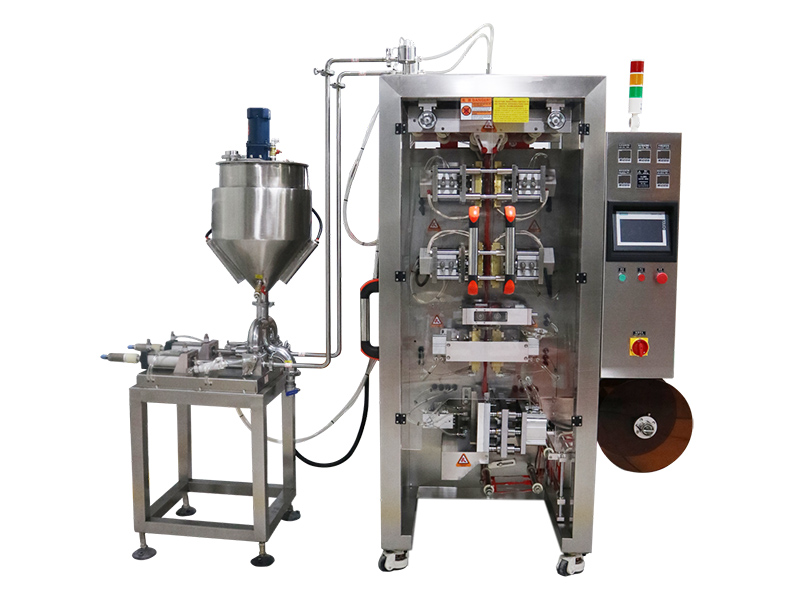

irregular shape pouch liquid packing machine
irregular shape pouch packing machine layout

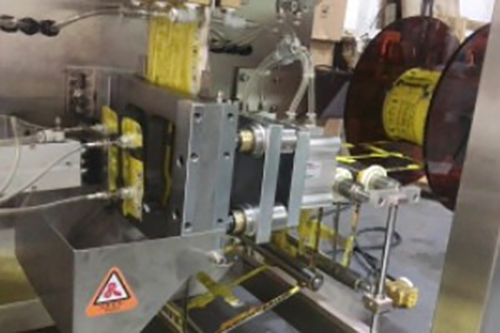

construction of irregular shape sachet liquid packing machine

Bag Former


construction of irregular shape sachet liquid packing machine

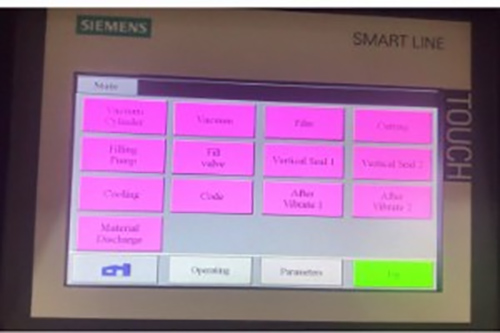

Touch Screen

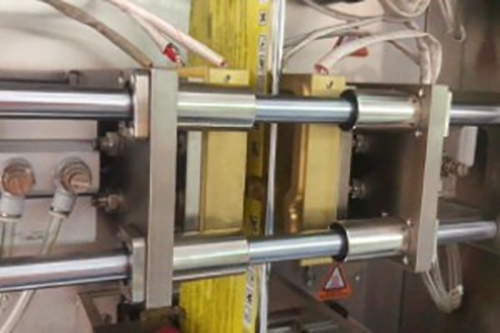

construction of irregular shape sachet liquid packing machine

Vertical Sealing

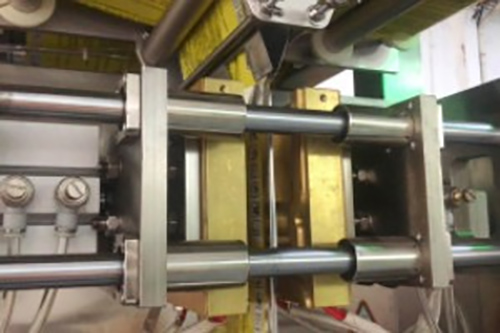

construction of irregular shape sachet liquid packing machine

Cutting Device


Parameter

Type

Fbv-50y irregular shape sachet packing machine

Fbv-50yd irregular shape sachet packing machine

Machine speed

25-30 per minute

50-60 per minute

Volume to fill

(1 -70 mls can be customized)

(1 -50 mls can be customized)

Pouch size range

Customized
     Max width: 130 mm,
     Max length: 180 mm

Customized
     Max width: 90 mm,
     Max length: 180 mm

Max. Film width

320mm

420mm

Film material

Composite film/aluminum foil/paper-pe film/laminated paper

Bag type

Irregular shape pouch

Voltage

Ac220v/50hz single-phase ( customized)

Total power

3kw

4.4 kw

Machine material

Stainless steel 304(ss304)

Machine size

(l)1150mm*(w)1250mm*(h)2150mm

(l)1350mm*(w)1450mm*(h)2150mm

N.w.

450kg

600 kgs


Application

 Irregular shape pouch packaging machine is widely applied to pack liquid and paste products including juice, milk, honey, ketchup, cream, soy sauce, vinegar, shampoo, fruit jam, cooking oil, chili sauce, salad dressing, butter, shower gel, cheese, peanut sauce and so on.


Cooking oil


Vinegar


 Ketchup


 Sesame sauce


 Honey



FBV-50YD irregular shape pouch packing machine to make bags with customized shape as below:

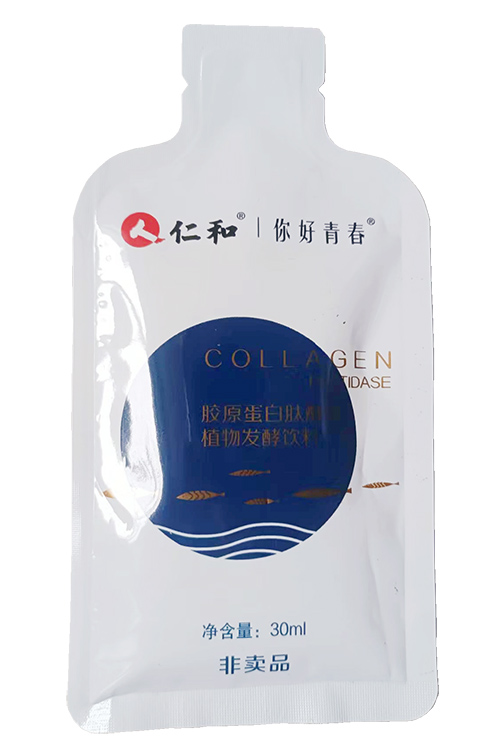

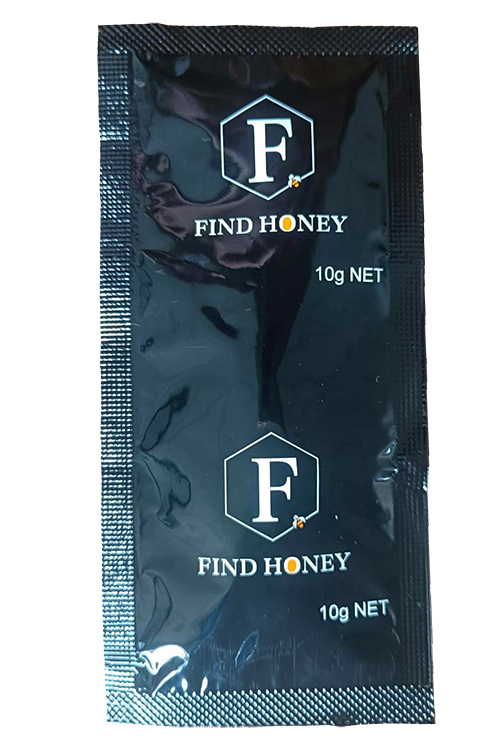

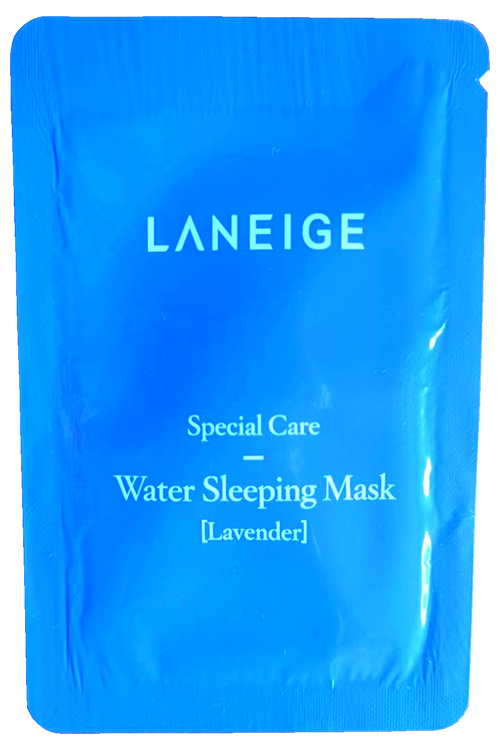

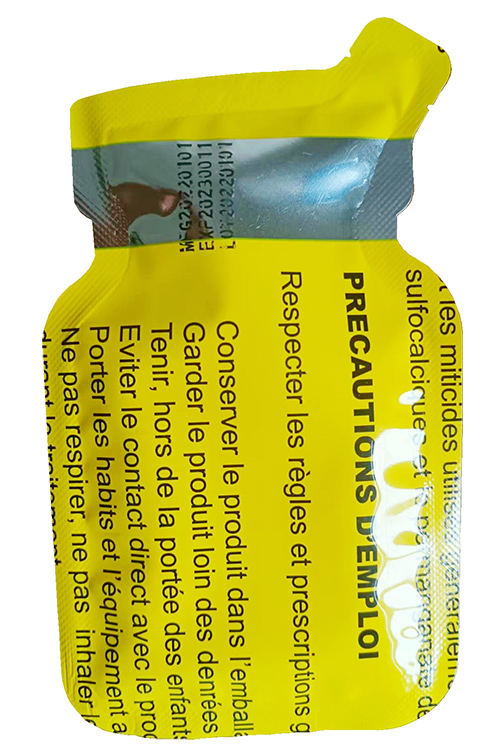

Sample Pouch:     1. Special-shaped pouch  2. Pillow pouch  3. Gusset bag  4. Stick bag  5. 3-side seal pouch  6. 4-side seal pouch  7. Round corner bag
