Name: Irregular shaped pouch packaging machine for butter
Uploaded: 2022-09-06T16:10:13+08:00
Duration: 1 min 45 s
Description: 1. 1 set of Die cut irregular shape pouch packaging machine, exported to Malaysia customer. It is suit for packing juice, enzyme beverage, shampoo, cosmetic liquid, honey products etc.2. Function of machine: form fill seal, film input, date printer, shape cut3. Mterials: SS304 & SS316L4. 100% brant new, made in China

1. 1 set of Die cut irregular shape pouch packaging machine, exported to Malaysia customer. It is suit for packing juice, enzyme beverage, shampoo, cosmetic liquid, honey products etc.

2. Function of machine: form fill seal, film input, date printer, shape cut

3. Mterials: SS304 & SS316L

4. 100% brant new, made in China

SEND INQUIRY NOW

Product Details

Instructions of machine

FBV-50Y DIE CUT IRREGULAR SHAPE sachet packing machine including functions, main packing machine, date printer, bag former, film input, touch screen, liquid and paste pump, sealing and cutting system, machine are controlled by PLC system.

Irregular shape pouch juice packing machine are made of SS304 & SS316L, we provide OEM service and oversea service.

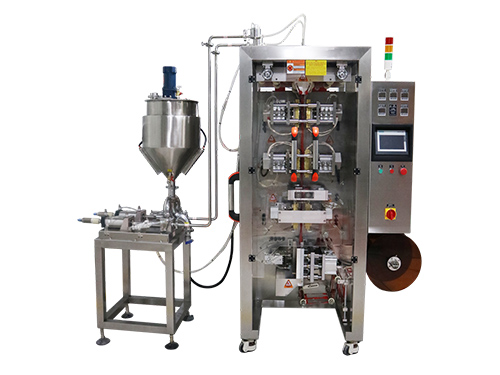

die cut irregular shape pouch packing machine

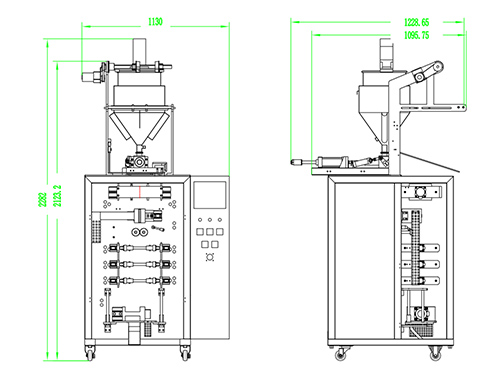

die cut irregular shape pouch packing machine layout

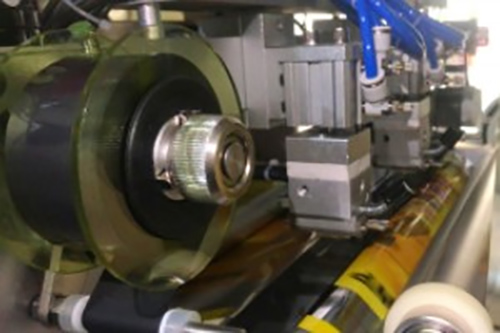

construction of irregular shape sachet packing machine

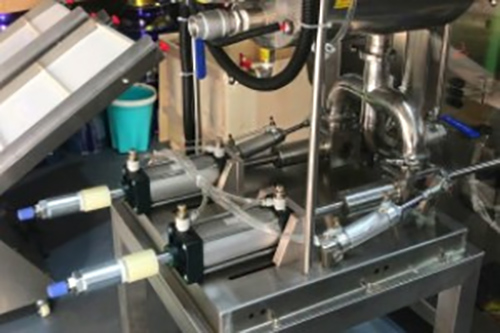

Liquid and paste pump

Date printer

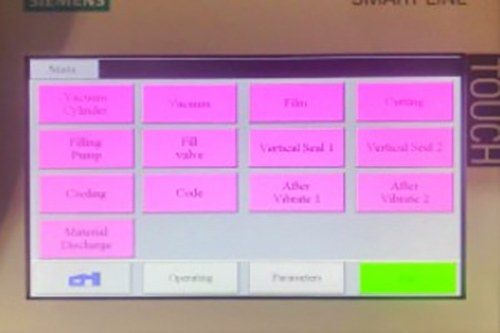

Touch screen

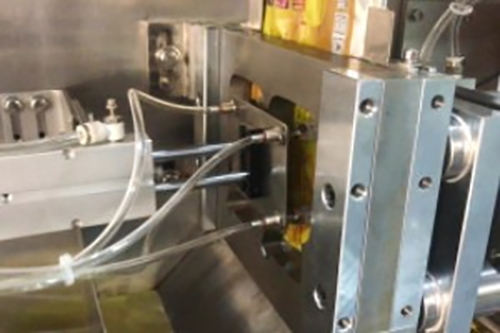

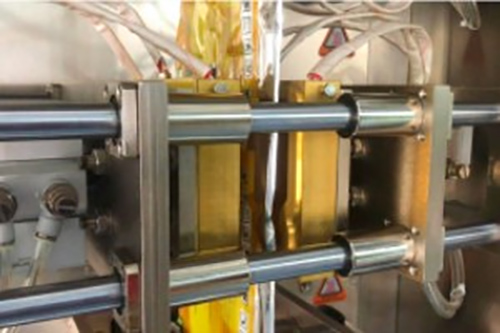

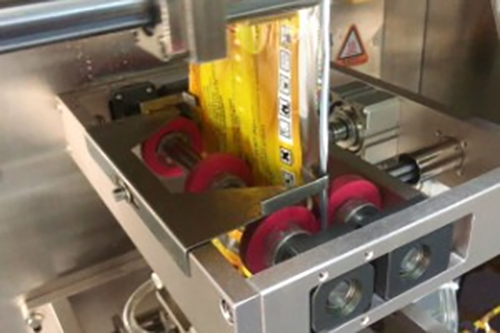

Vertical sealing

Horizontal sealing

Cutting device

Parameter

Type	Fbv-50y irregular shape sachet packing machine	Fbv-50yd irregular shape sachet packing machine
Machine speed	25-30 per minute	50-60 per minute
Volume to fill	(1 -70 mls can be customized)	(1 -50 mls can be customized)
Pouch size range	Customized Max width: 130 mm, Max length: 180 mm	Customized Max width: 90 mm, Max length: 180 mm
Max. Film width	320mm	420mm
Film material	Composite film/aluminum foil/paper-pe film/laminated paper
Bag type	Irregular shape pouch
Voltage	Ac220v/50hz single-phase ( customized)
Total power	3kw	4.4 kw
Machine material	Stainless steel 304(ss304)
Machine size	(l)1150mm(w)1250mm(h)2150mm	(l)1350mm(w)1450mm(h)2150mm
N.w.	450kg	600 kgs

Application

◆ Die cut irregular shape pouch packaging machine is widely used in liquid and paste products, such as milk, cream, juice, honey, ketchup, shampoo, fruit jam, soy sauce, cooking oil, vinegar, peanut sauce, bean sauce, chili sauce, butter, yogurt, cheese, etc.

Cream

Fruit jam

Ketchup

Butter

Chili sauce

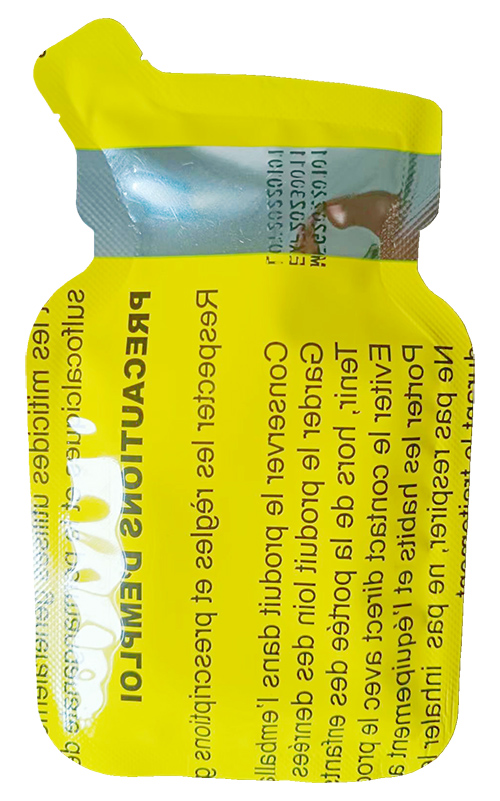

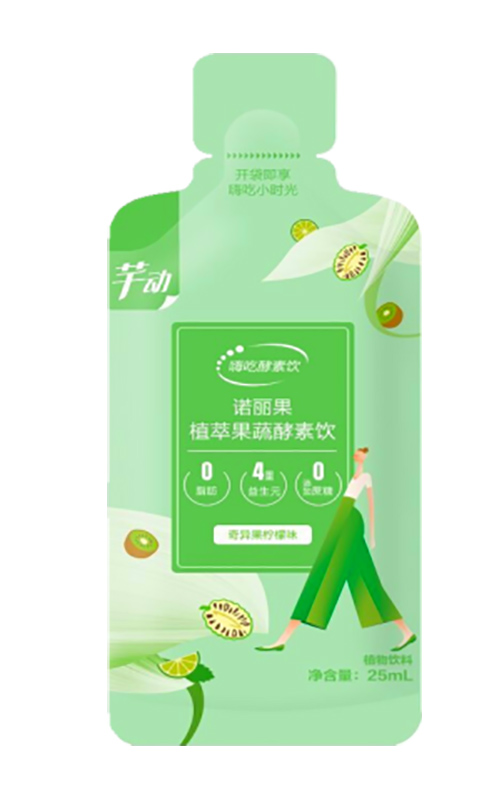

◆ VFFS irregular shape bag packaging machine can be customized to make different shape bags as below.

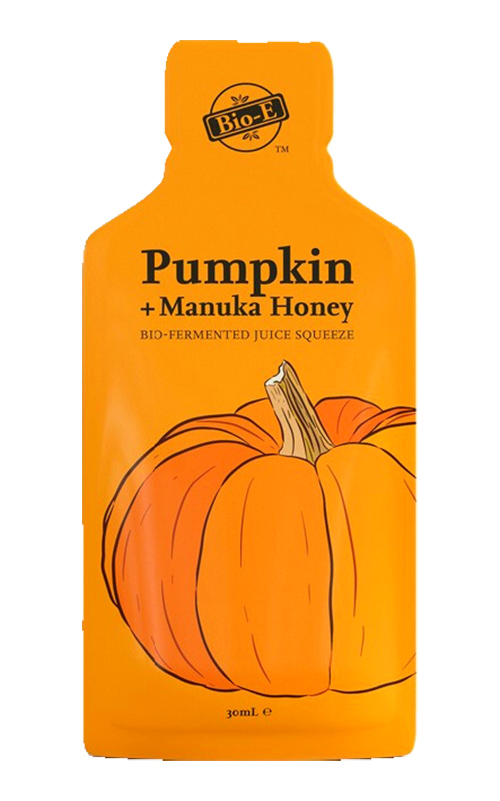

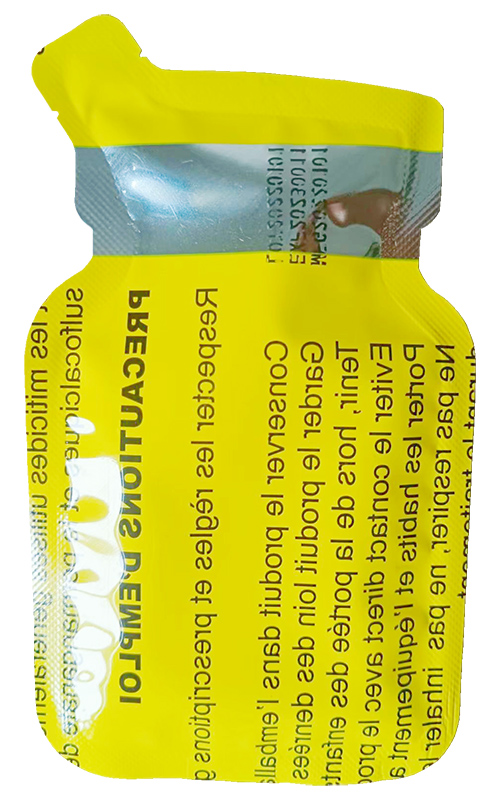

Sample bag: 1. Special-shaped bag 2. Pillow pouch 3. Gusset bag 4. 3-side seal pouch 5. 4-side seal pouch 6. Stick bag

FBV-50Y IRREGULAR SHAPE SACHET packing machine make bag/film material:

Paper/Polyethylene Cellophane/Polyethylene; Aluminized/Polyethylene/Polyethylene Nylon/Polyethylene/BOPP
