VFFS Packing Machine
VR
  • Product Details
Instructions of machine

  FBV-300Y triangle sachet packing machine including functions, film input, liquid and paste pump, touch screen, vertical sealing, horizontal sealing, cutting device, finished product output, machines are controlled by PLC system.

  VFFS sachet packing machines are made of SS304 & SS316L,we provide OEM service and oversea service

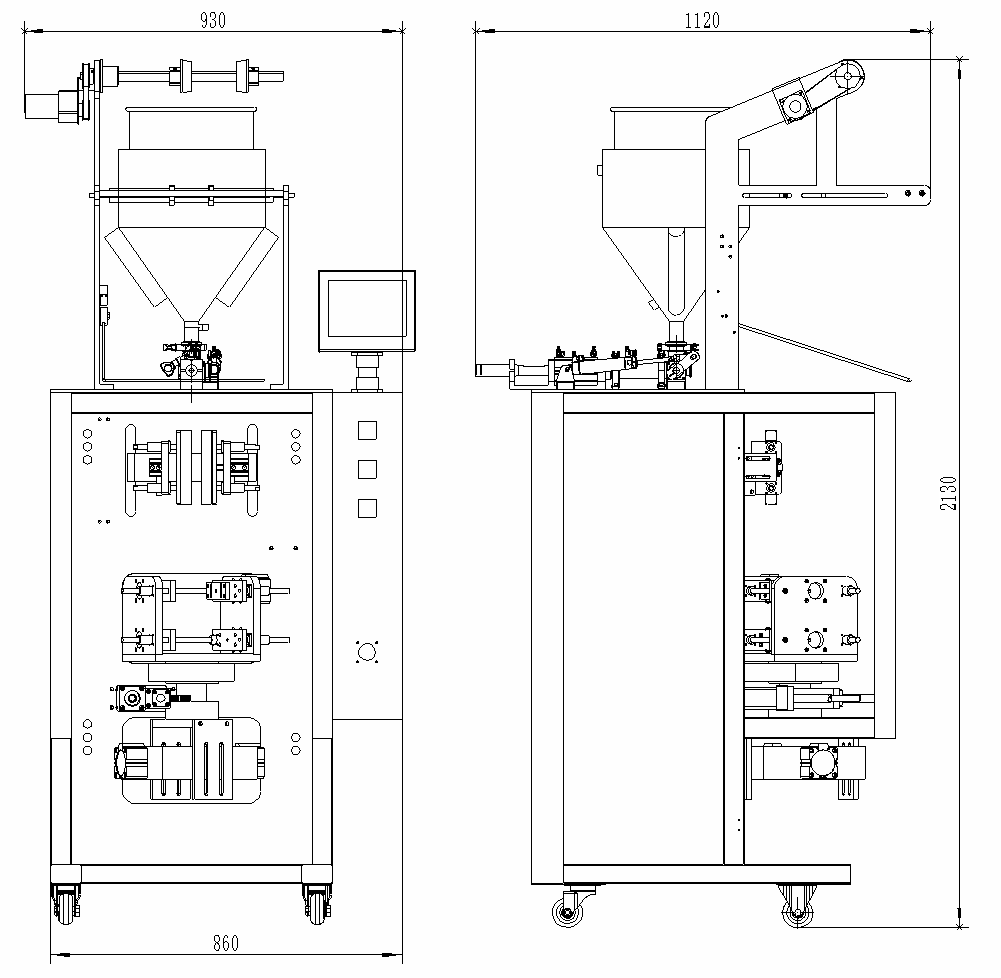

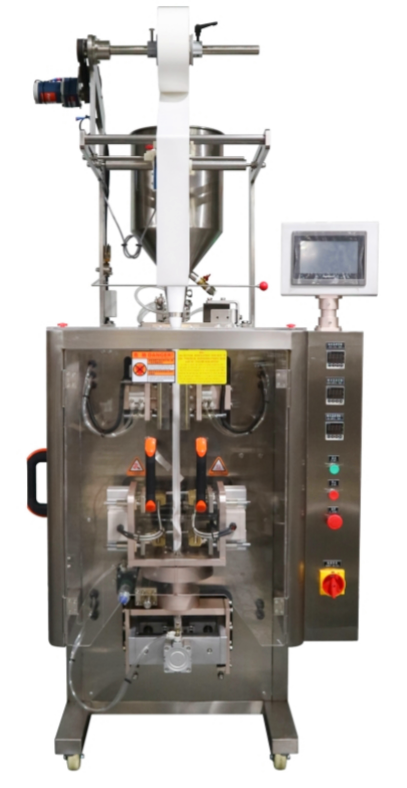

picture of jelly packing machine         triangle sachet packing machine layout


construction of jelly packing machine
Film Input
construction of jelly packing machine

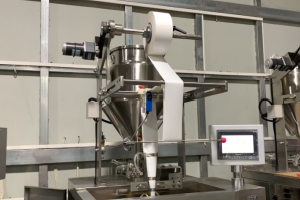

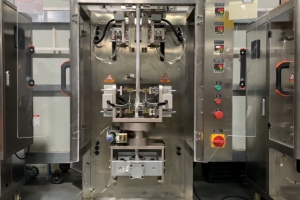

Main Packing Machine
construction of jelly packing machine

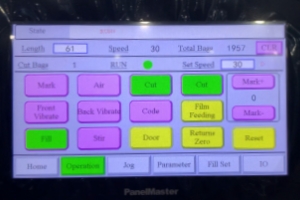

Touch Screen


construction of jelly packing machine

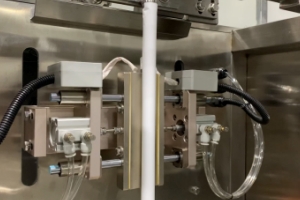

Vertical Sealing
construction of jelly packing machine

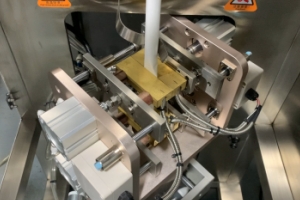

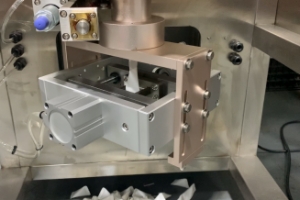

Horizontal Sealing

construction of jelly packing machine

Cutting Device


Application

 FBV-300Y VFFS sachet packing machine is widely used in packing liquid and paste pump product, such as jelly, juice, cosmetics, fruit jam, honey, chocolate sauce, ketchup and so on.




                    Jelly                                    Fruit Jam                                 Cosmetics                              Ketchup                            Chocolate Sauce


 FBV-300Y vffs sachet packing machine can be customized to make veries of sachets as below:

Sample Sachet:     1. Triangle Sachet       2. Sachet With Punched Hole       3. Multi-linking Sachets          4. Sachet With Zigzag


jelly sachet packing machine

Parameters
TYPE OF MACHINE

FBV-300 VFFS PACKING MACHINE

PACKING SPEED/MINUTE

30-80 bags/minute

PACKING DIMENSION

Width : 20mm - 150mm

Length : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL

Max 450 mm

POWE

110v/220v/380v customized

WEIGH

300 kgs/se

SIZE OF MACHINE

1000*750*2000mm
