Shaped Pouch Packing Machine
VR
  • Product Details
Instructions of machine

FBV-50Y DIE CUT Irregular Shape Sachet Packing Machines including main packing machine、film input、liquid and paste pump、date printer、touch screen、vertical and horizontal sealing、cutting device, machines are controlled by PLC system.

Optional functions:   1. automatic pumping beverage to packing machine  2. CIP washing system   3. UV sterilizing lamp


shaped pouch enzyme beverage packing machine                     shaped pouch beverage ppacking machine layout

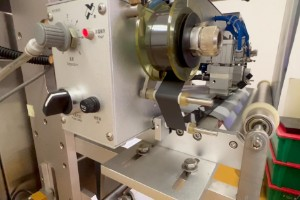

construction of sachet packing machine
Date Printer

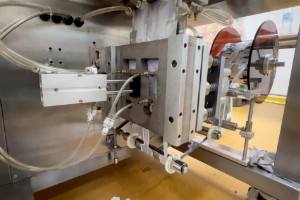

construction of sachet packing machine

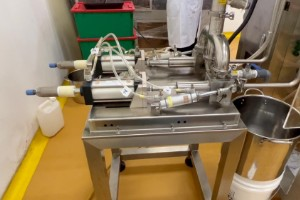

Liquid And Paste Pump
construction of sachet packing machine

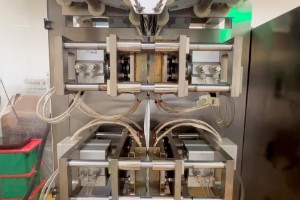

Vertical Sealing
construction of sachet packing machine
Cutting Device


Application

◆ Shaped pouch packaging machine is widely used in packing liquid and paste products, such as enzyme beverage、jelly、cream、honey、milk、ketchup、shampoo、fruit jam、vinegar、soy sauce、yogurt、chili sauce、butter、cheese、bean sauce、juice、cooking oil、salad dressing、blue berry jam, etc.

  Irregular shape bag packing machine can be equipped with the corresponding material conveying pump according to  the characteristics of the product.




              Yogurt                                        Fruit Jam                                       Vinegar                                     Ketchup                                          Butter


FBV-50Y DIE CUT irregular shape sachet packing machine can be customized to make shaped different of sachets as below, except liquid and paste products, it's suit for packing powder and fine granular products by changing fillers.

Sample Pouch:   1、Irregular Shape Pouch  2、3 Side-Seal Pouch  3、4 Side-Seal Pouch

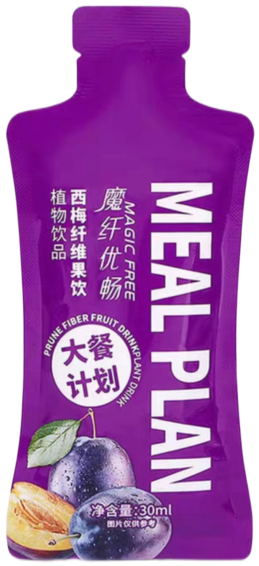

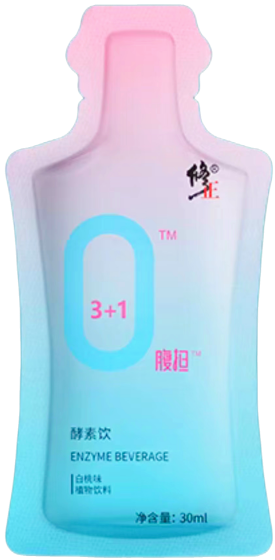

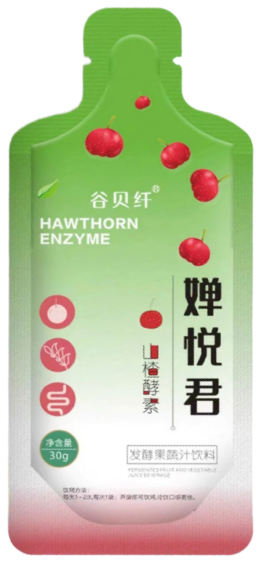

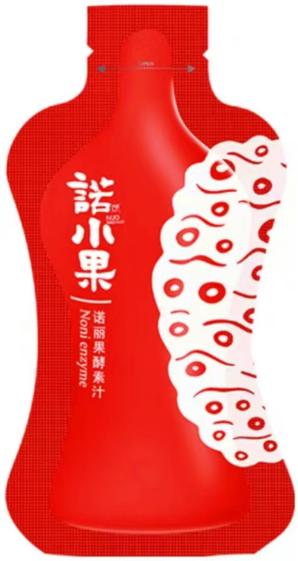

   irregular shape sachet packing machine    beverage sachet packing machine      fruit juice packaging machine    bottle shaped sachet packing machine

Parameter

TYPE

FBV-50Y DIE CUT irregular shape sachet packing machine

FBV-50YD DIE CUT irregular shape sachet packing machine

MACHINE SPEED

25-30 per minute

50-60 per minute

VOLUME TO FILLV

(1 -70 mls can be customized)

(1 -50 mls can be customized)

POUCH SIZE RANGECustomized

Max width: 130 mm,

Max length: 180 mm

Customized

Max width: 90 mm,

Max length: 180 mm

MAX. FILM WIDTH 320mm420mm
FILM MATERIAL Composite film/aluminum foil/paper-PE film/laminated paper
BAG TYPE Irregular Shape Pouch
VOLTAGE AC220V/50HZ Single-phase ( customized)
TOTAL POWER 3KW4.4Kw
MACHINE MATERIALStainless Steel 304(SS304)
MACHINE SIZE

(L)1150mm*(W)1250mm*(H)2150mm

(L)1350mm*(W)1450mm*(H)2150mm
N.W.450kg600kgs
