Name of packing machine: Automatic rice bag packing machine

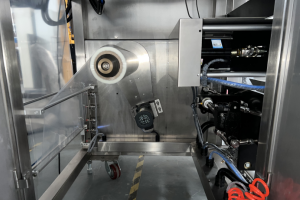

Functions: film input, multi heads weighing, form fill seal, date printing, z type elevator, touch screen, finished product conveyor, etc.
Materials of packaging machine: SS304 stainless steel
Control mode: automatical
New:100% brant new, made in China

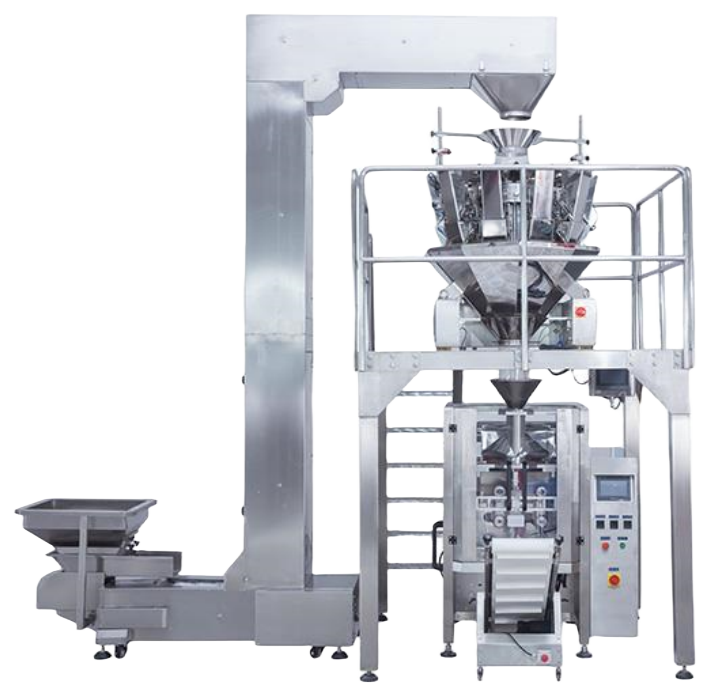

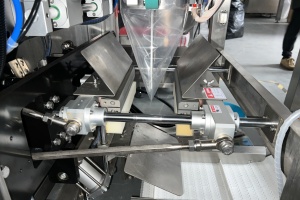

This rice bag packaging machineis composed of multi-head weigher, Z-type elevator, film input, date printing, bag forming, vertical sealing, horizontal sealing, cutting and other devices. The whole is controlled by a PLC system, which is convenient to operate, precise in control, and convenient to change the packaging product data to view and adjust.

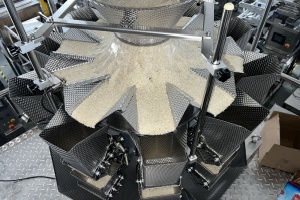

Multi-head weigher device: used to package granular products of different shapes and sizes to ensure the accurate weight of the packaged products. Multi heads weighing equipment can also be customized according to customer requirements, with different sizes and weighing heads, such as: 8-head weigher, 10-head weigher, 14-head weigher, 16-head weigher, etc.
Z-type elevator: Made of food-grade stainless steel, the material is strong and is also installed with transparent glass. While protecting the hygiene and safety of the packaging materials, it is convenient to check the integrity of the materials during the transportation process, which is more convenient for packaging.
Automatic multi-head weigher packing machine is widely used in packaging granular product, such as rice, nuts, puffed food, peanuts, grains, soybeans, dried fruits, candies, potato chips, biscuits, popcorn, pistachios, melon seeds, walnuts, almonds, etc. The metering device is selected according to the characteristics of the packaging material to ensure accurate metering, which can improve the packaging efficiency of the machine and also ensure that the material does not break during the weighing process.
Multi-head weigher packaging machine can make bags of different styles and sizes according to customer requirements, such as: pillow bags, gusseted bags, flat bags, linked bags, 3-side sealed bags, 4-side sealed bags, etc. (the packaging sealing device needs to be customized according to the bag making requirements). Ensure the sealing of the finished packaging, keep the materials clean and hygienic; and make the bags more attractive and beautiful, so that the bags are more attractive to customers and convenient to open and use. It is necessary to select appropriate bag making materials according to the characteristics of the packing materials, such as: OPP/PE, PET/PE, PET/VM/, OPP/CPP and other composite film bag making materials.
| Model | 420 Multi-head weigher packing machine |
| Making bag size | (L)60-300mm (W)60-200mm |
| Packing Speed | 30-80 bags/min |
| Power Supply | 220V/Hz |
| Measuringg Accuracy | ≤±1% |
| Packing Material | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
| Compressed Air Consumption | 6kg/m³ |
| Air Consumption | 0.3m³/min |
| Roll Film Size | Outer diameter ≤300mm, Inner diameter =74mm |
| Weight | 1000kg |

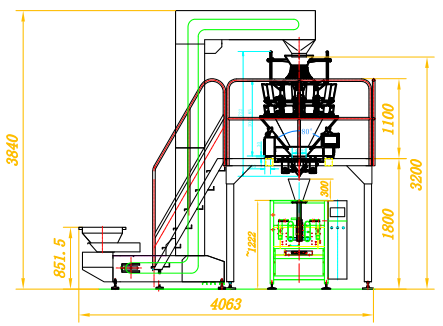

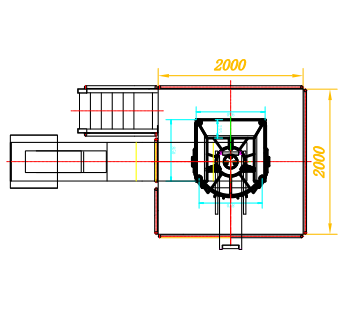

| Dimension | L4600*W2000*H3600mm |
We are professional Manufacturer of pouches packing machine and bottles filling process line
We providing OEM service , testing and products designing for our customers
We providing one-station purchase service
We have 15 designers, total 120 employees to serve our customers
