Instruction of machine

  FBV-300D VFFS sachet packing machine including functions, main packing machine, liquid and paste pump, film input, date printer, touch screen, bag former, sealing and cutting device, machine are controlled PLC system.

  Double-line vertical packing machine is optional for complete or partial stainless steel and all out equipment have received the CE certificate.

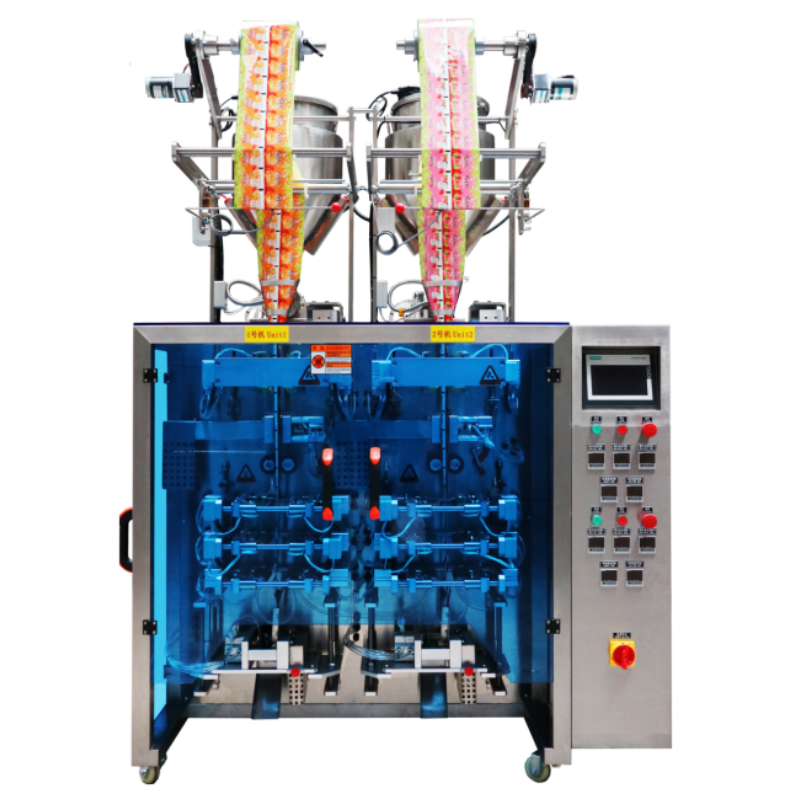

shampoo sachet packaging machine

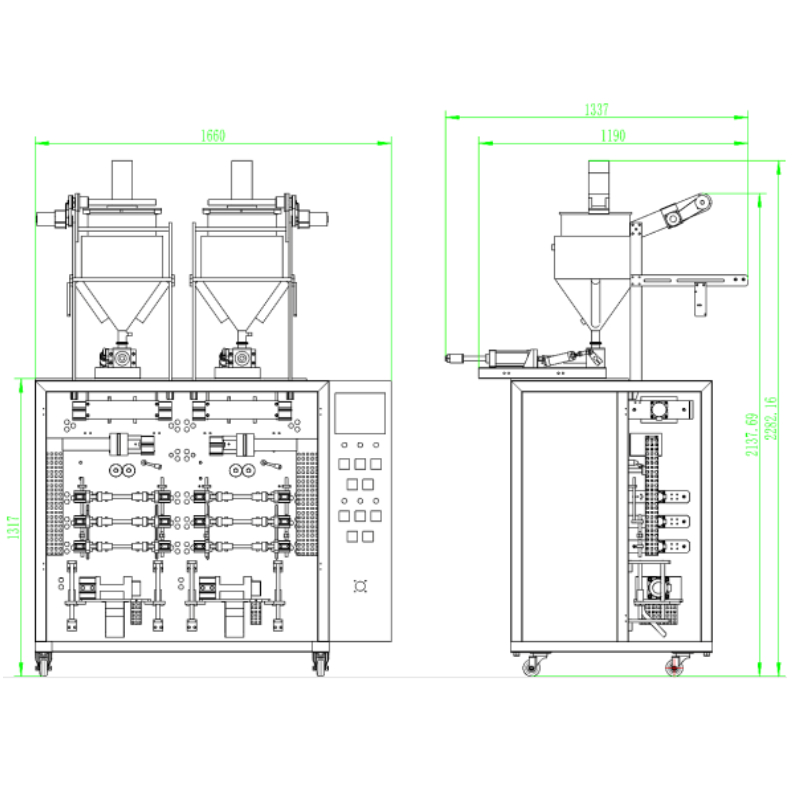

shampoo sachet packaging machine layout


construction of shampoo sachet packing machine

Liquid and paste pump


construction of shampoo sachet packing machine

Film input


construction of shampoo sachet packing machine

Date printer


construction of shampoo sachet packing machine

Bag former


construction of shampoo sachet packing machine

Horizontal sealing


construction of shampoo sachet packing machine

Cutting device



Applications

FBV-300D VFFS sachet packaging machine is widely used in liquid and paste products, such as honey, ketchup, cream, fruit jam, enzyme beverage, chili sauce, cooking oil, peanut sauce, bean sauce, vinegar, soy sauce, cheese, shampoo, salad dressing, syrup, etc.

Shampoo


Fruit jam


Chocolate sauce


Ketchup


Vinegar


 Both sides of the packaging machine can be packaged, and both sides can package bags of different weights and shapes at the same time by entering different parameters.

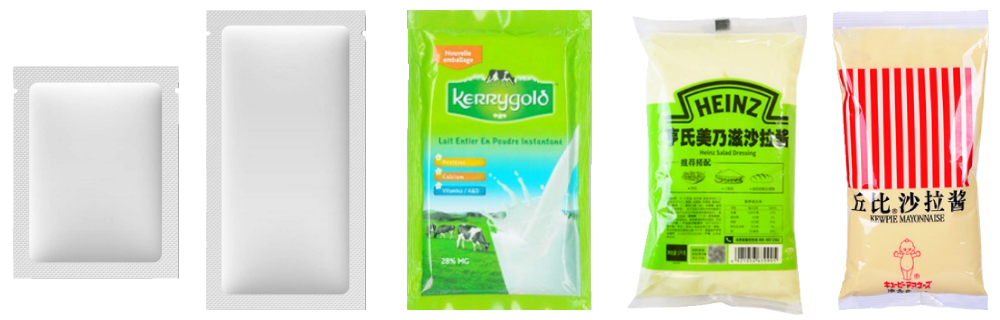

Double-line sachet packing machine can be customized to make veries of sachets as below:

Sample bag :   1、4-side seal pouch  2、3-side seal pouch  3、Stick pouch  4、Pillow bag  5、Gusset bag  6、Special-shaped bag


PARAMETERS


TYPE OF MACHINE

FBV-300D VFFS SERVO SYSTEM PACKING MACHINE

PACKING SPEED/MINUTE

50-120 bags/minute

PACKING DIMENSION

Width : 20mm - 150mm
Length : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL

Max 450 mm

POWER

110v/220v/380v customized

WEIGHT

600 kgs/set

SIZE OF MACHINE

1000*1400*2100mm
