Instruction of machine

  FBV-300 powder sachet packing machine including functions, main packing machine, powder hopper, film input, touch screen, date printer, bag making device, vertical sealing device, horizontal sealing device, cutting device, machines are controlled by PLC system.

  VFFS powder packaging machine are made of SS304 & SS316L, we provide OEM service and oversea service.

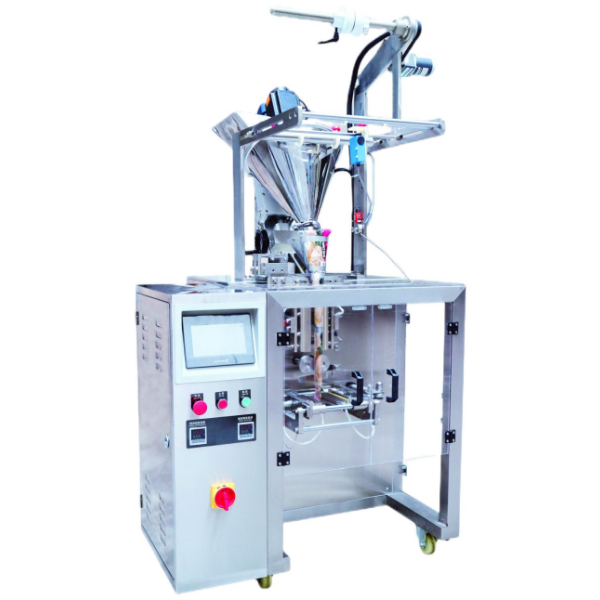

vffs milk powder packaging machinery

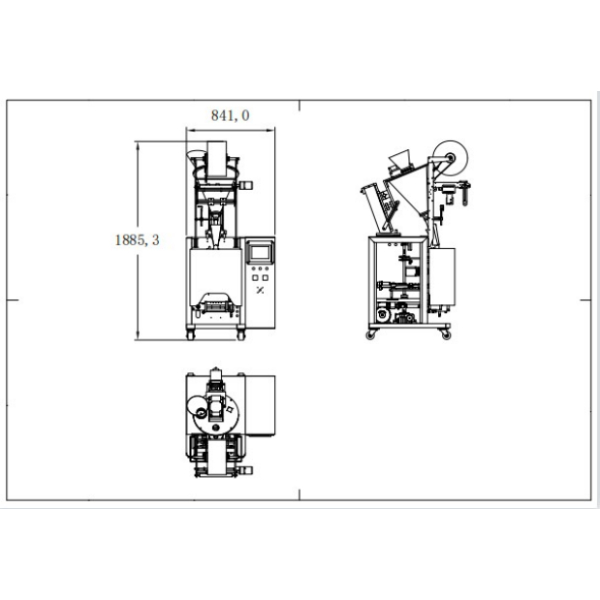

vffs milk powder packaging mmachine layout
construction of powder packaging machine

Film Input


construction of powder packaging machine

Date Printer


construction of powder packaging machine

Vertical Sealing


construction of powder packaging machine

Horizontal Sealing


Application

  FBV-300 VFFS packaging machine is widely used in packing powder products, such as milk powder, coffee powder, protein powder, wheat flour, soybean powder, cocoa powder, coconut powder, tea powder, plant powder, rice powder, fruit flavored powder, bakery powder, medical powder, etc.

Coffee Powder



Tea Powder


Chili Powder


Chemical Powder


Fruit Powder


nut powder


Spices powder


Milk Powder

-=====

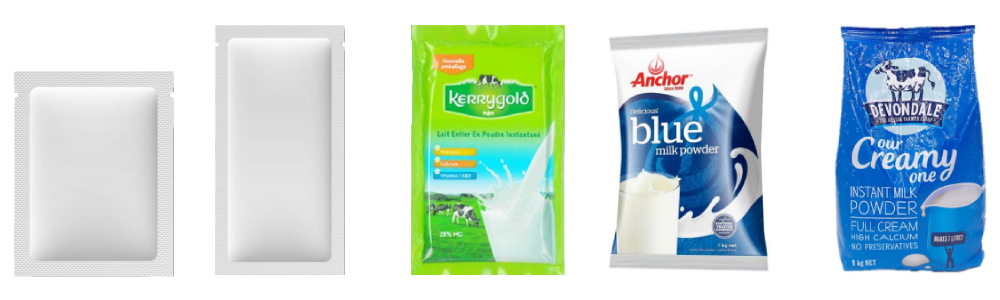

FBV-300 VFFS packaging machine can be customized to make veries of sachets as below:

Sample Bag:   1. 4-side seal pouch  2. 3-side seal pouch  3. Pillow Bag  4. Gusset Bag  5. Stick Pouch  6. Multi-linking sachets



PARAMETERS


TYPE OF MACHINE

FBV-300 VFFS PACKING MACHINE

PACKING SPEED/MINUTE

  1. 80 bags/minute

PACKING DIMENSION

Width/ : 20mm - 150mm
     Length/ : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL

Max 450 mm

POWER

110v/220v/380v customized

WEIGHT

300 kgs/set

SIZE OF MACHINE

1000*750*2000mm
