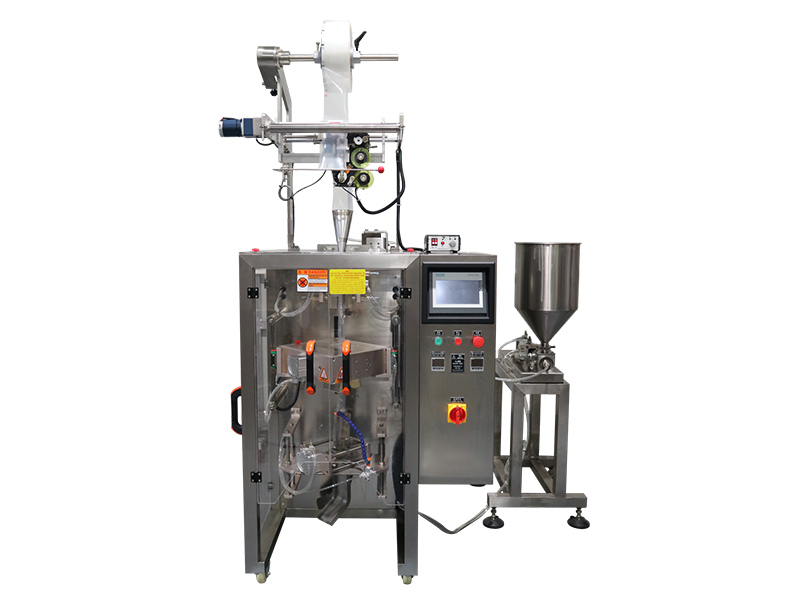

Name of machine: VFFS stick sachet packing machine for honey
Functions: forn fill seal, film input, date printer, liquid and paste pump, hot filling
Materials of machine: SS304 & SS316L
Control mode: all automatically
New: 100% brant new made in China
FBV-300SY shape pouch packaging machine exported to Taiwan to packing honey product.
Instructions of machine

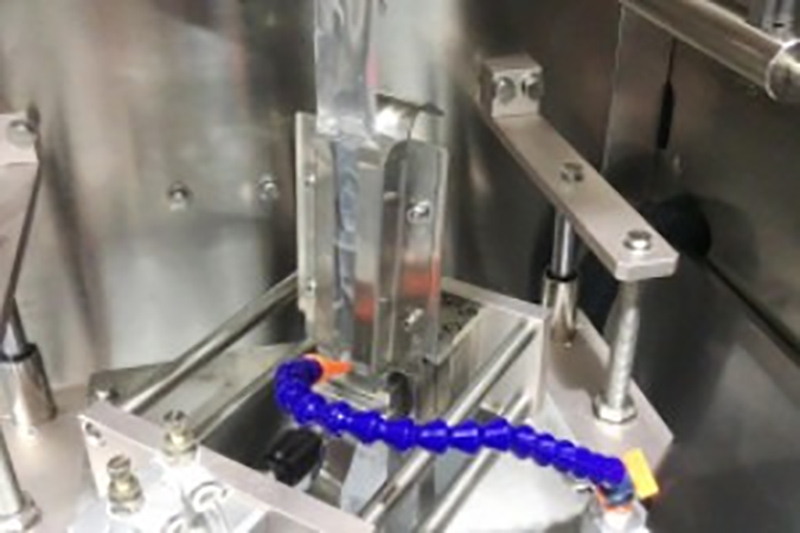

FBV-300S SERVO SYSTEM sachet packing machine consists of main packing machine, Film input, liquid and paste pump, date printer, touch screen, vertical sealing system, horizontal sealing system, machine is controlled by PLC system.
Functions of vffs packing machine: 1. Buffer tank: heating by electric, mixing, CIP ball, jacket tank 2. Piston filler: heating, it is easy to modify filling range, accurate filling function

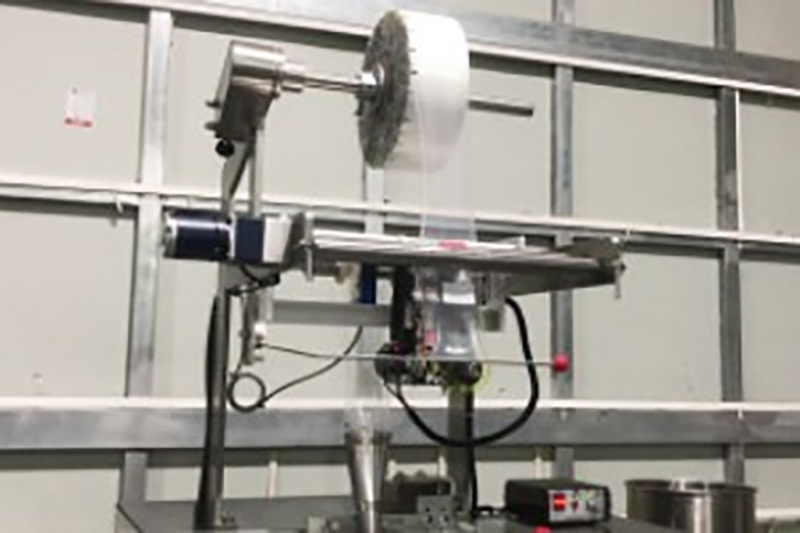

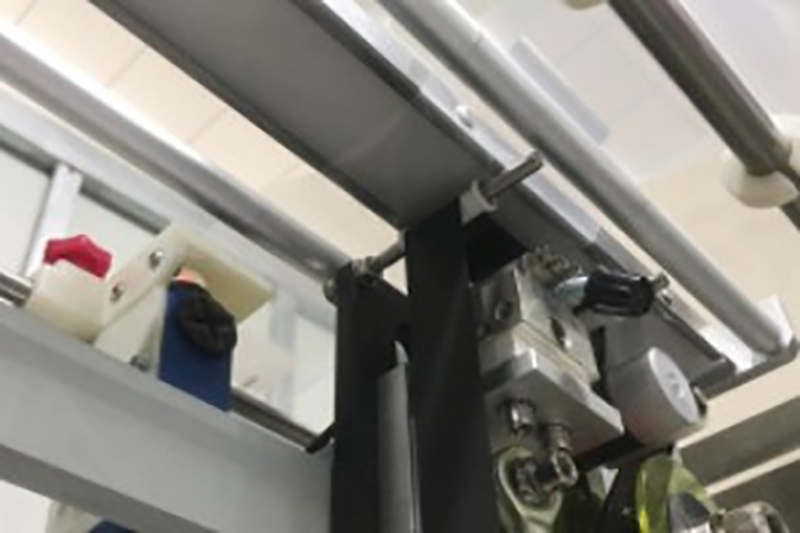

Film Input
Date Printer

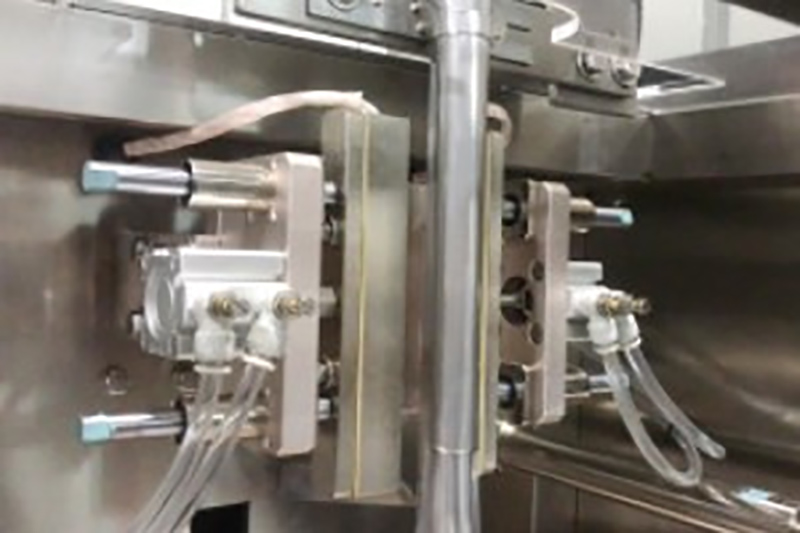

Vertical Sealing

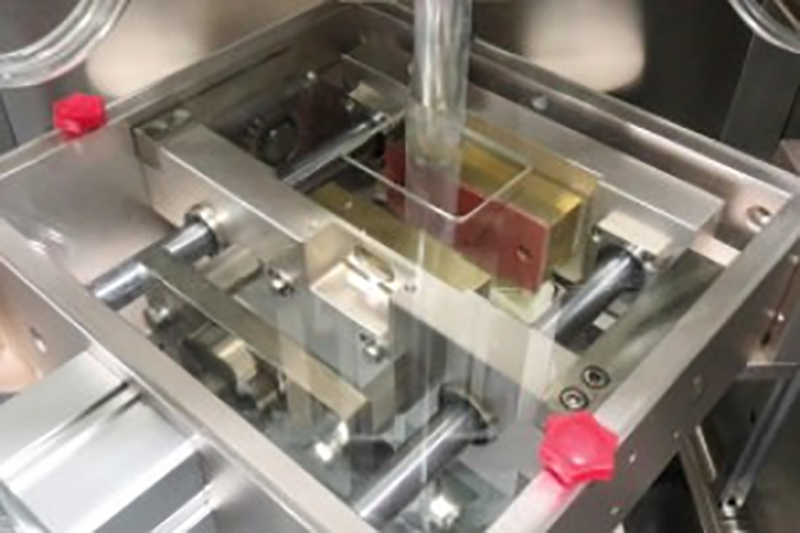

Horizontal Sealing
Cutting Device

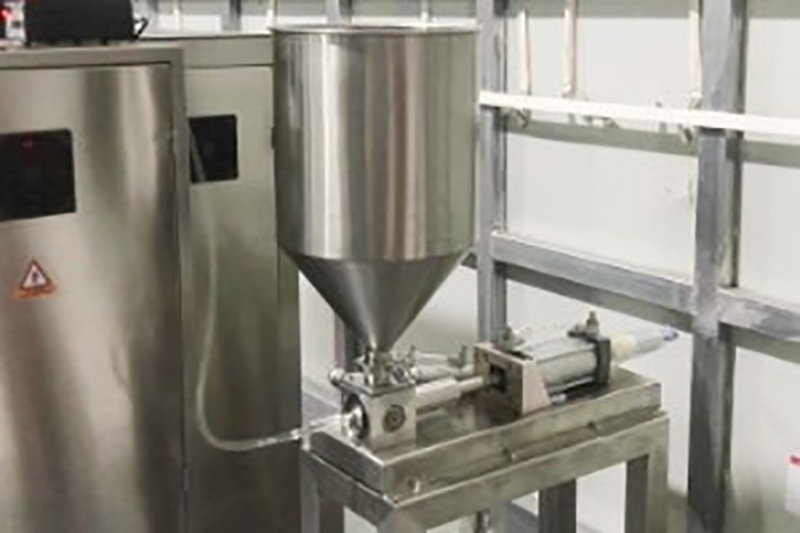

Liquid and Paste Pump
Parameter
Type of machine | Fbv-300s vffs servo system packing machine |
Packing speed/minute | 25-50 bags/minute |
Packing dimension | Width ： 20mm - 150mm |
Diameter of packge roll | Max 450 mm |
Power | 110v/220v/380v customized |
Weight | 300 kgs/set |

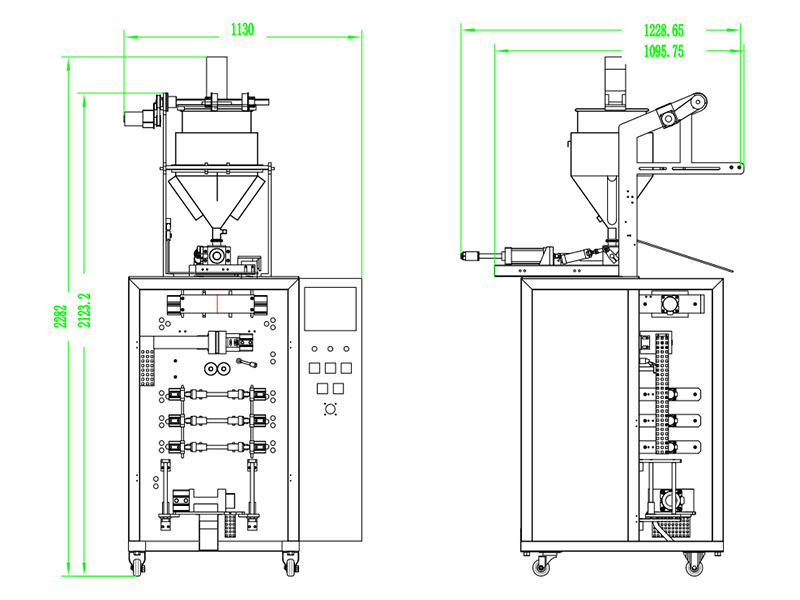

Size of machine | 1000*750*2300mm |
◆ FBV-300SY shape sachet packaging machine is suitable for packing liquid and paste products, such as milk, juice, honey, ketchup, cream, vinegar, soy sauce, butter, chili sauce, peanut sauce, cooking oil, jelly, yogurt, fruit jam, shampoo, bean sauce, salad dressing , etc.
FBV-300SY irregular shape pouch packing machine can be equipped with different blanking devices according to different products, for example semi automatic paste pump, semi automatic liquid pump, etc.
Fruit jam
Chocolate sauce
Cooking oil
Ketchup
Butter
Honey
◆ VFFS stick sachet honey packing machine customized bag type according to customer requirements.

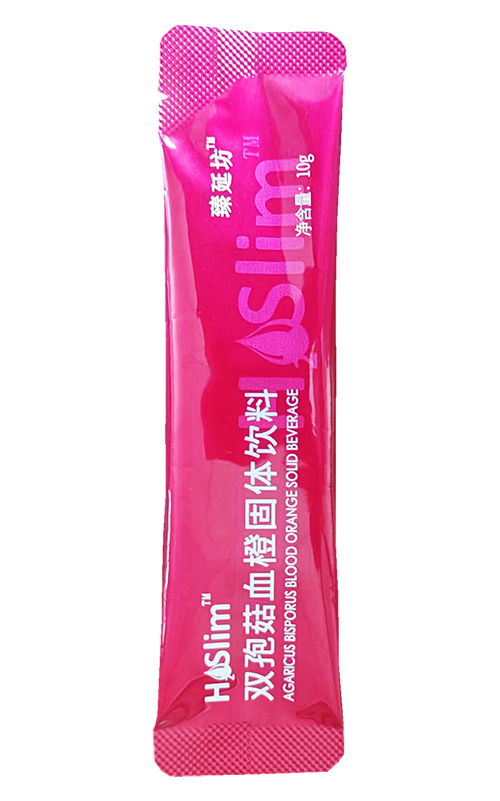

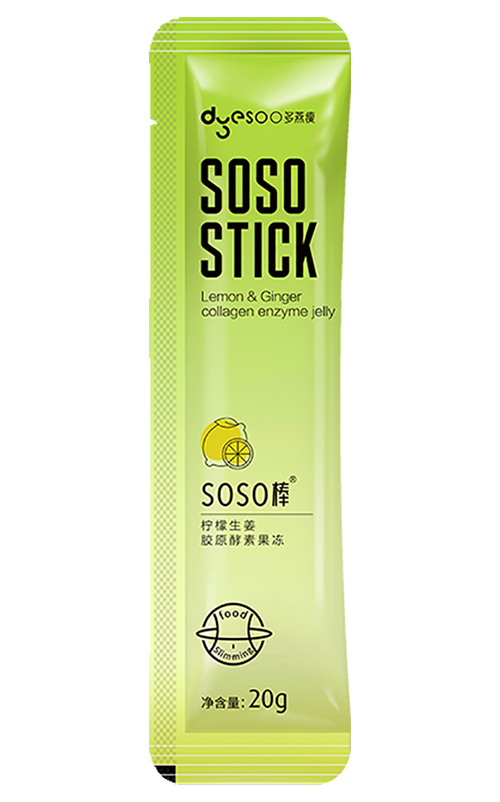

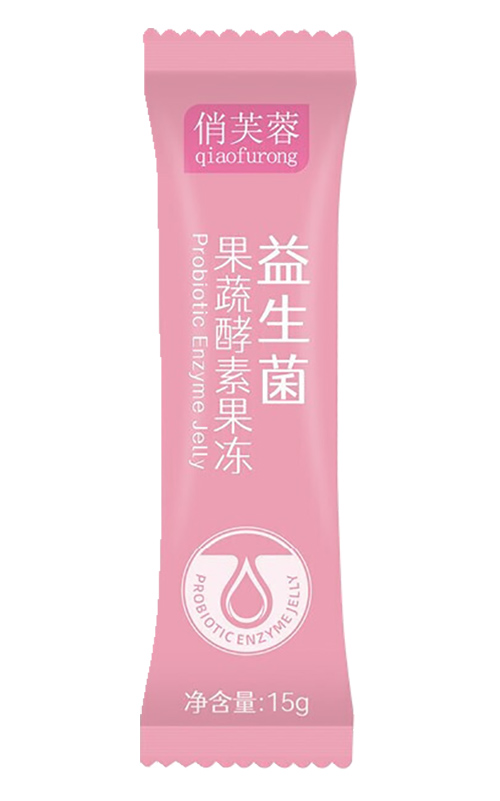

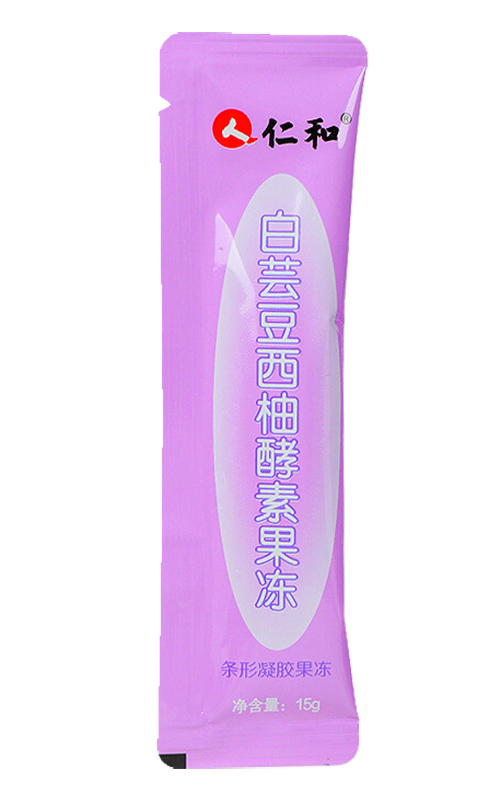

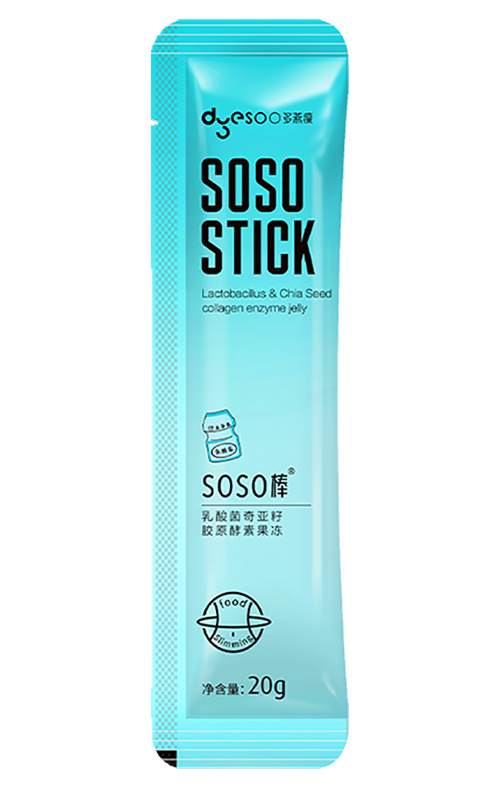

Sample bag: 1. Stick sachet 2. Pillow pouch 3. Gusset bag 4. 3-side seal pouch 5. 4-side seal pouch 6. Multi-linking sachets
Features of shaped sachets: 1. Special design stick sachets make your products stand in market; 2. Irregular shaped sachet is easy to tear off compare with normal sachet.
