VFFS Packing Machine
VR
  • Product Details
Instructions of machine:

 FBV-420 VFFS particle packing machine including functions, main packing machine、multi-head weighing、touch screen、date printer、vibrating slope conveying equipment、vertical sealing、horizontal sealing and cutting device, finish product conveying, machine are controlled by PLC system.

Multi heads weighing packaging machines are made of SS304 & SS316L, we provide OEM service and oversea service.

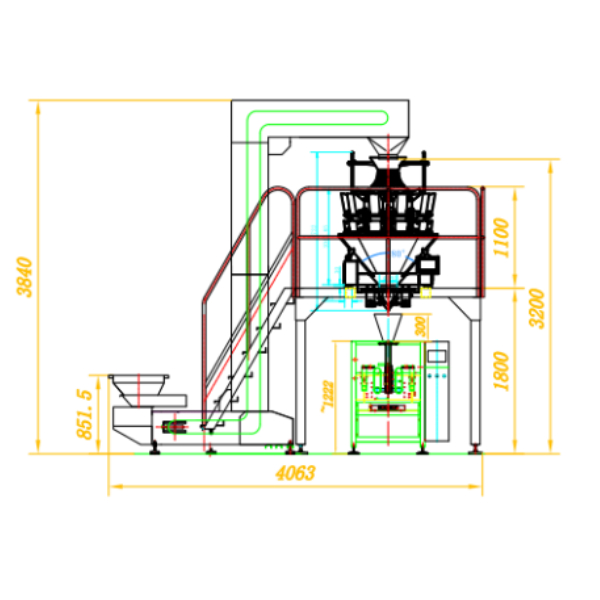

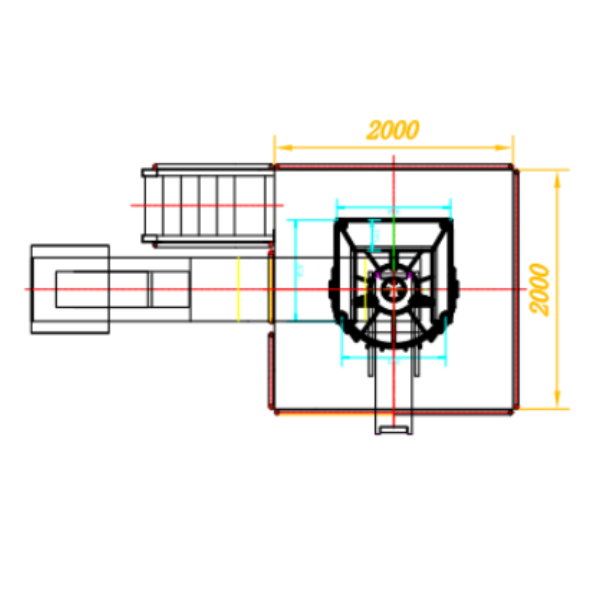

multi heads weighing packing machinemulti heads weighing packing machine layoutmulti heads weighing packing machine layout



construction of granules packing machine

Multi heads


construction of granules packing machine

Bag former


construction of granules packing machine

Vertical sealing


construction of granules packing machine

Horizontal sealing



Application

VFFS multi-head weighing packing machine is suitable for packing granular products, such as rice、mung bean sprout、candy、peanuts、pistachios、oatmeal cereals、biscuits、melon seeds、popcorn、nuts、potato chips、jelly、dried fruit、soybeans、jujube、cashew nuts、chocolate、walnut、almond、walnut、etc.


Potato chips



Nuts


Biscuits


Dried fruits


Beans


Candy


Melon seeds


Popcorn



FBV-420 VFFS packaging machine adopts double servo film-dragging structure, enable stable bag forming for perfect bag shape.

Multi heads weighing granules packing machine can be customized to make veries of sachets as below:

Sample pouch:   1、Pillow pouch   2、Stick bag   3、Gusset pouch   4、3-side seal pouch   5、4-side seal pouch     6、Multi linking pouches



SPECIFICATIONS

Model. No

FBV-420 granules packing machine

FBV-520 granules packing machine

FBV-620 granules packing machine

FBV-820 granules packing machine

Bag Size

(L)60-230mm*
     (W)60-200mm

(L)100-300mm*
     (W)80-250mm

(L)100-380mm*
     (W)100-300mm

(L) 50-380mm*
     (W)110-400mm

Bag Speed

15-60bags/min

15-60bags/min

15-60bags/min

10-30bags/min

film width

140-420mm

180-520mm

220-620mm

340-800mm

Air Consumption

0.6Mps
     0.36m3/min

0.6Mps
     0.36m3/min

0.6Mps
     0.4m3/min

0.6Mps
     0.7m3/min

Powder Supply

2.2kw,
     220V 50/60HZ

3kw
     220V 50/60HZ

4kw
     220V 50/60HZ

4.5kw
     220V 50/60HZ

Packed Dimension

(L)1430*(W)970*
     (H)1600mm

(L)1550*(W)1160*
     (H)1480mm

(L)1600*(W)1260*(H)1680mm

(L)1600*(W)1500*
     (H)2050mm
