Instructions of packaging mach:

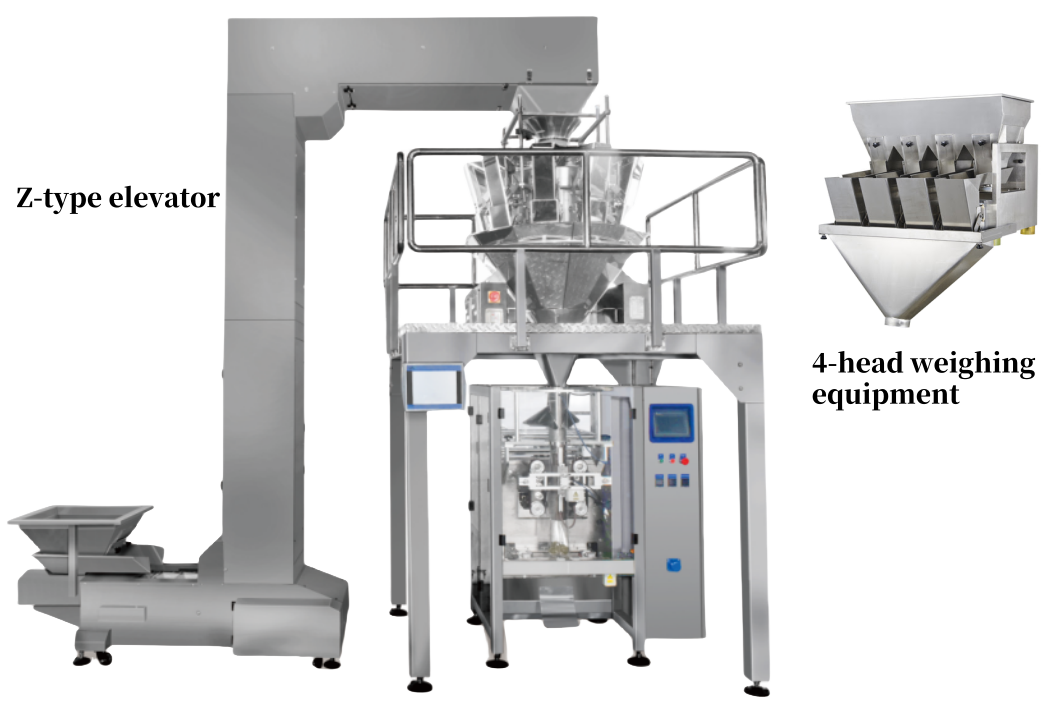

Automatic washing powder bag packing machine is mainly composed of bag forming, 4-head weighing, date printing, film input device, vertical sealing, horizontal sealing and cutting devices, the whole machine is controlled by PLC system.

Multi-head weighing equipment: Suitable weighing equipment can be customized according to the different sizes, shape and characteristics of the packaged products. And increase or decrease the weighing heads, such as 2-head weighing equipment, 4-head weighing equipment, 8-head weighing equipment, etc.

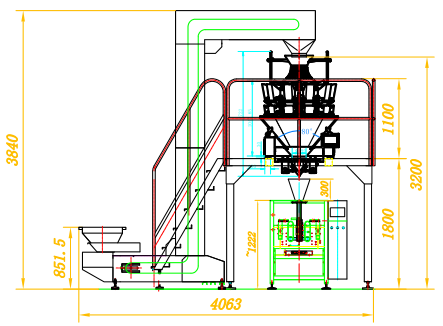

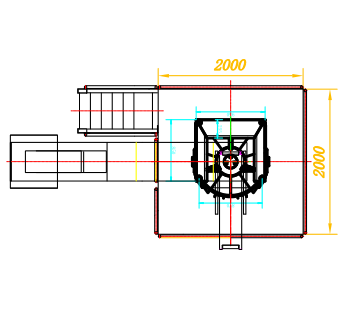

 washing powder bag packing machine      layout of multi heads weighing packing machine    layout of multi heads weighing packing machine


construction of multi heads weighing packing machine

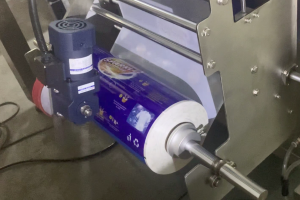

Film Input

construction of multi heads weighing packing machine

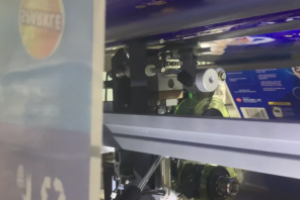

Date Printer

construction of multi heads weighing packing machine

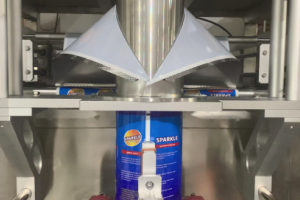

Bag Former

construction of multi heads weighing packing machine

Horizontal Sealing and Cutting


Applications:

Automatic 4-head weighing packing machine is suitable for packaging powder and fine granular product, such as washing powder, rice powder, coconut powder, salt, sugar, nuts, popcorn, melon seeds, sesames, etc.

Packing machine is equipped with a multi-head weighing device according to the characteristics of the packaged product, and the size and number of weighing heads of the multi-head weighing device are customized according to the customer’s requirements for packaging and bag making. In order to ensure the safety and hygiene of the packaged products, all parts in contact with the materials are made of food-grade stainless steel, including the multi-head weighing device.





Washing Powder                Salt               Fruit Flavored Powder                 Sesames                      Beans                       Candy


The multi-head weighing packing machine can produce bags of different sizes and styles according to the customer’s bag making requirements, such as gusset bag, pillow bag, stand up bag, bag with punched hole, multi linking bags, etc.

Choose appropriate packing materials according to the different packing products and customer bag making requirements, such as PVC, OPP, PE, PET/VMPET/PE, OPP/CPP, etc.

pillow bag packing machinemulti heads weighing packing machine      gusset bag packaging machine       multi heads weighing packing machine with gusset bag      washing powder gusset bag packing machine

Parameters:
ModelKL-420 packaging machine
Making bag size(L) 60-300mm       (W) 60-200mm
Packing speed30-80 bags/min
Power supply220V/50 Hz
Measuring accuracy≤±1%
Packing materialOPP、PE、PVC、OPP/PE、OPP/CPP、PET/VMPET/PE
Compressed consumption6kg/㎡
Air consumption0.3m³/min
Roll film sizeOuter diameter ≤ 300mm ,  Inner diameter = 74mm
Weight1000kg
DimensionL4600*W2000*H3600mm


Company Advantages

01
We providing one-station purchase service
02
Our products are follow GMP requirements
03
We are professional Manufacturer of pouches packing machine and bottles filling process line

Frequently Asked Questions about powder packing machine for sale

Q:

Are you machines factory?

A:

A: yes, we are professional factory in packaging machine

Q:

Are you providing install service.

A:

A: yes, if there is no Epidemic, no war in your country, we can providing installation service

Q:

If your products have qulity problem, how would you deal with

A:

A: we have professional after-sell service team, and we providing spares free within warranty
