Instructions of packaging machine:

Vertical form fill seal packing machine consists of main packing machine, film input device, date printing, bag forming, sealing and cutting device, touch screen, and other device, machines are controlled by PLC system. The packaging process is complete and smooth, which can ensure the efficiency of bag making, the precise control of packaging weight and reduce work errors.

This packing machine is made of stainless steel as a whole, with a simple and beautiful structure and easy cleaning; the part in contact with the material is made of food-grade stainless steel to ensure the safety and hygiene of the material during the packaging process.

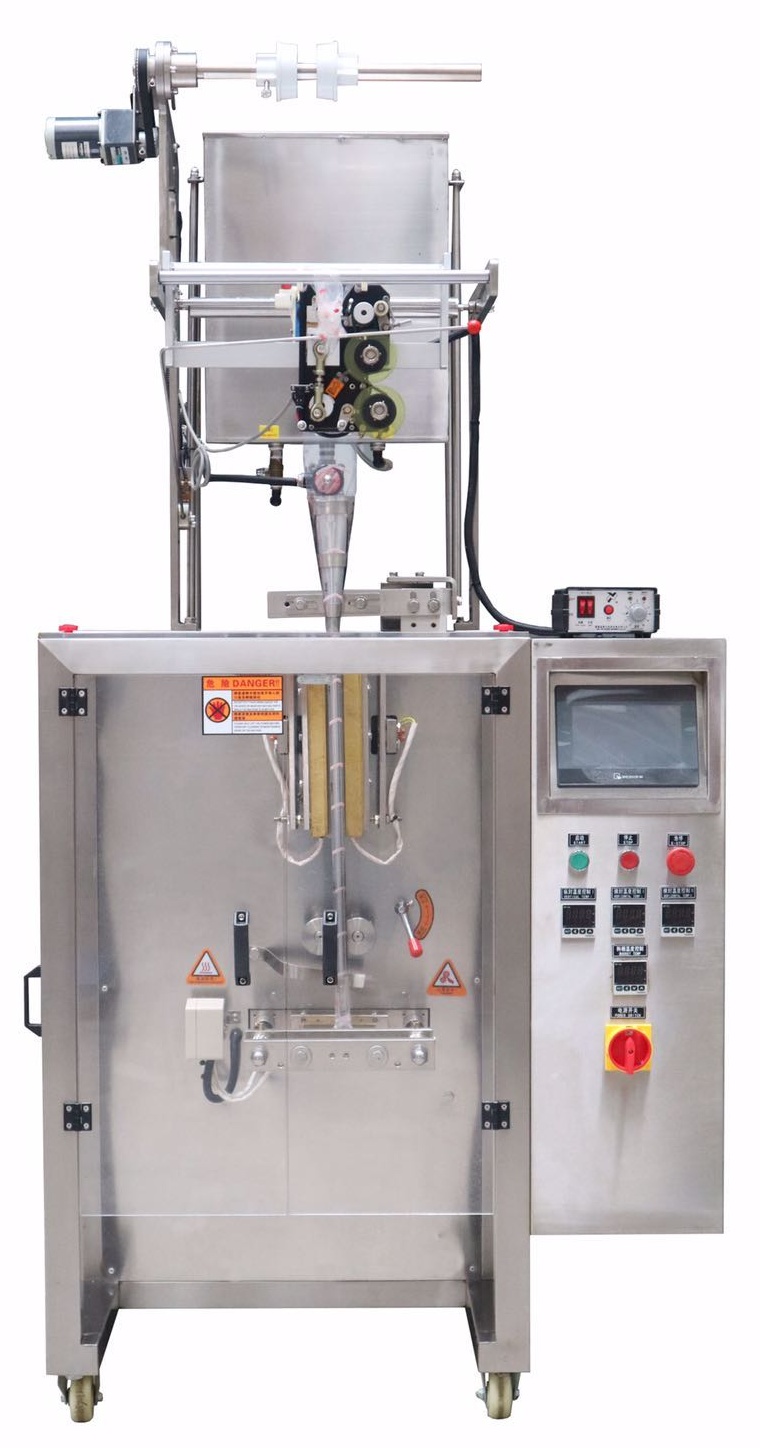

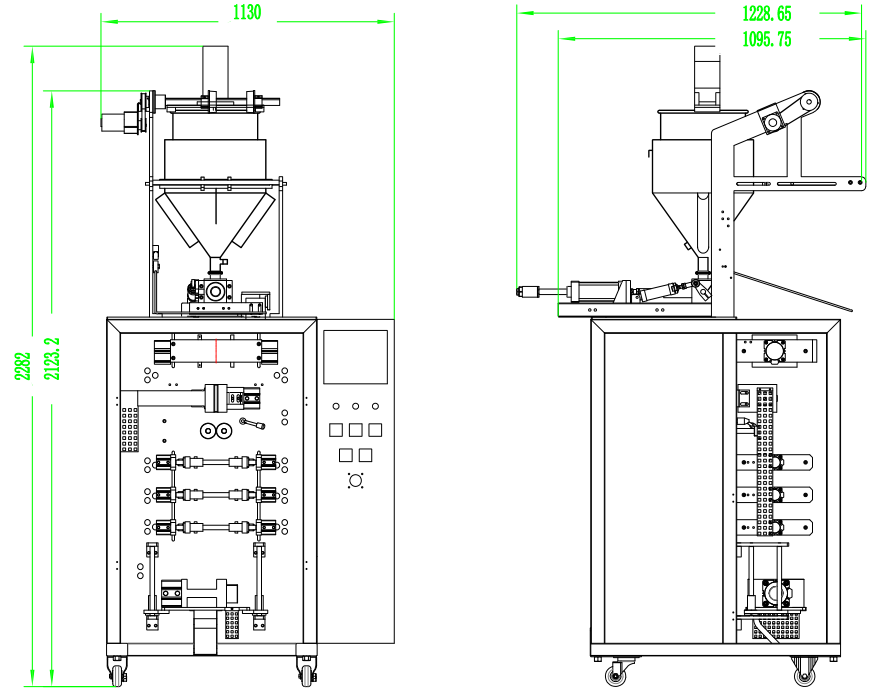

coconut gel pouch packing machine                     layout of coconut gel packaging machine



construction of coconut gel packing machine

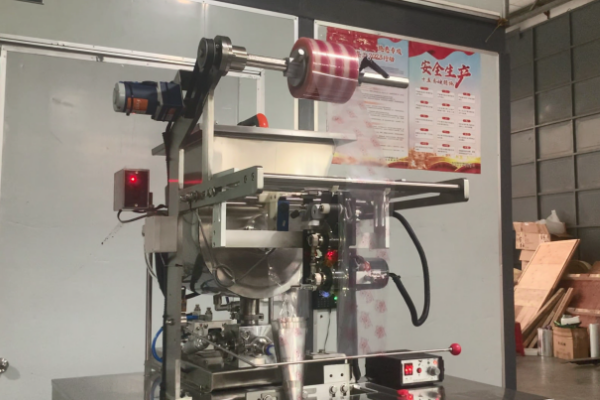

Film Input
construction of coconut gel packing machine

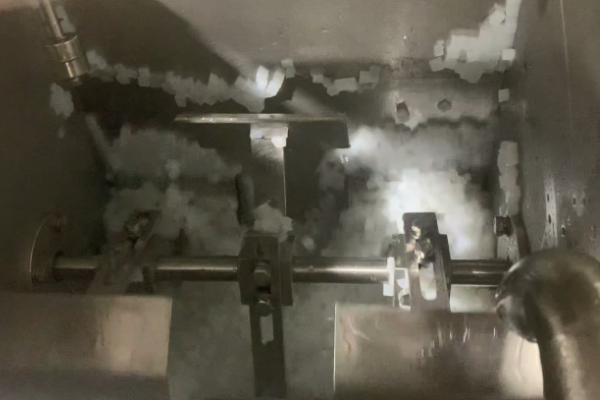

Material Mixing Device
construction of coconut gel packing machine

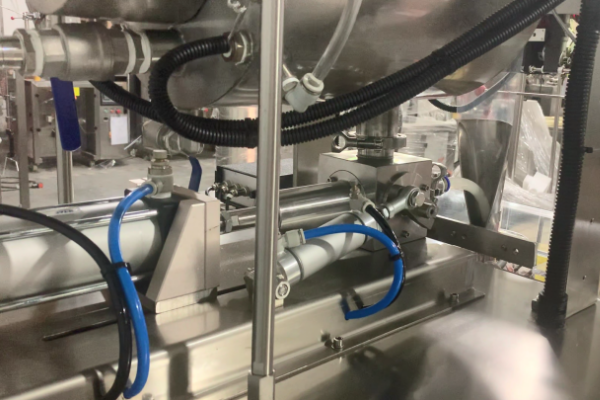

Paste and Liquid Pump
construction of coconut gel packing machine

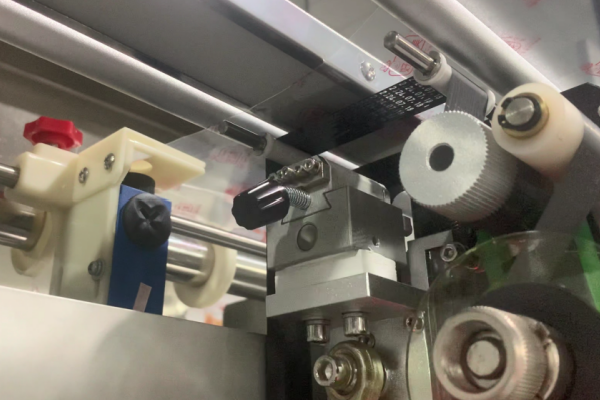

Date Printer


construction of coconut gel packing machine

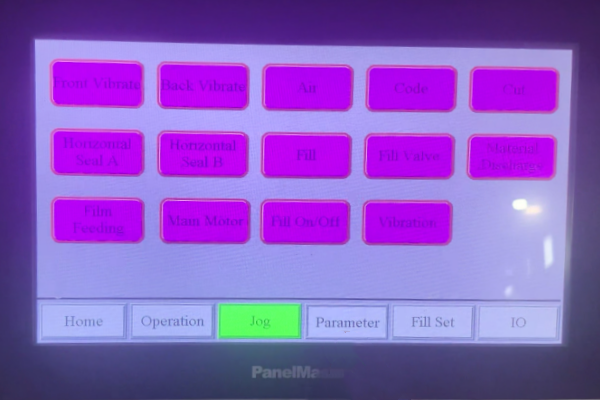

Touch Screen
construction of coconut gel packing machine

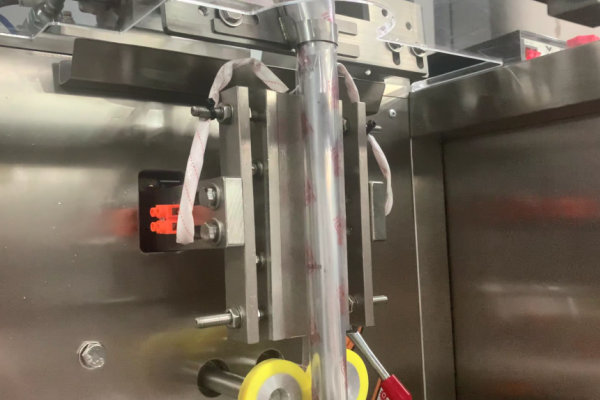

Vertical Sealing Device
construction of coconut gel packing machine

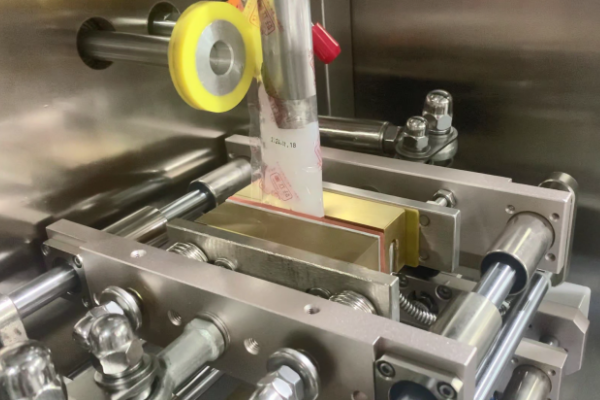

Horizontal Sealing Device
construction of coconut gel packing machine

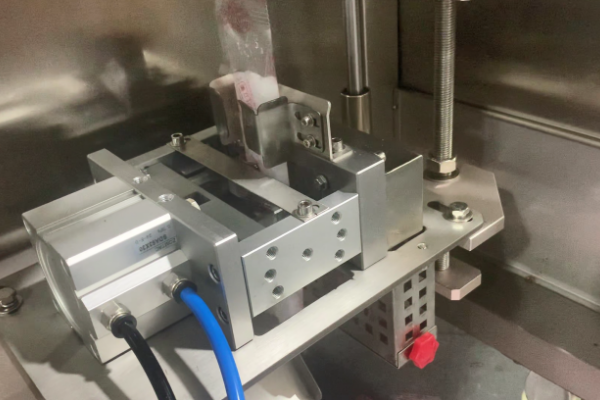

Cutting Device


Applications:

FBV-300 VFFS packing machine needs to be equipped with a suitable metering and filling device according to the different packaging materials. For example, a powder auger filler device is selected for powder products, a multi-head weighing device and a volumetric cup (customized) are selected for granular products of different sizes, and a liquid and sauce pump is selected for liquids/sauces. Such as coconut gel, coconut water, chili sauce, cooking oil, salad dressing, fruit jam, honey, etc.




              Jelly                                       coconut Gel                                 Fruit Gel                                     Fruit Jam                                Chili Sauce


Sample Pouch:

VFFS pouch packing machinery is suitable for making bags of different sizes and styles, for example: irregular shape pouch, pillow pouch, stick sachet, 3-side seal pouch, 4-side seal pouch. According to the different packaging products and the design of the bag, choose the appropriate bag making material. The optional bag making materials are: composite film/aluminum foil/paper-PE film/laminated paper.


irregular shape sachet packing machine                          coconut gel pouch packing machine                    irregular shape bag packing machine                   shape sachet packaging machine

Parameter:
TYPE OF PACKAGING MACHINEFBV-300 VFFS PACKING MACHINE
PACKING SPEED/MINUTE30-80 bags/minute
PACKING DIMENSION

Width: 20mm-150mm

Length: 30mm-180mm

DIAMETER OF PACKAGE ROLLMax 450 mm
POWDER110V/220V/380V customized
WEIGHT300 kgs/set
SIZE OF PACKING MACHINE1000*750*2000mm


Company Advantages

01
We providing one-station purchase service
02
We providing OEM service , testing and products designing for our customers
03
We have 15 designers, total 120 employees to serve our customers

Frequently Asked Questions about vffs machine manufacturers

Q:

Are you machines factory?

A:

A: yes, we are professional factory in packaging machine

Q:

Are you providing install service.

A:

A: yes, if there is no Epidemic, no war in your country, we can providing installation service

Q:

If your products have qulity problem, how would you deal with

A:

A: we have professional after-sell service team, and we providing spares free within warranty
