Instructions of packaging machine:

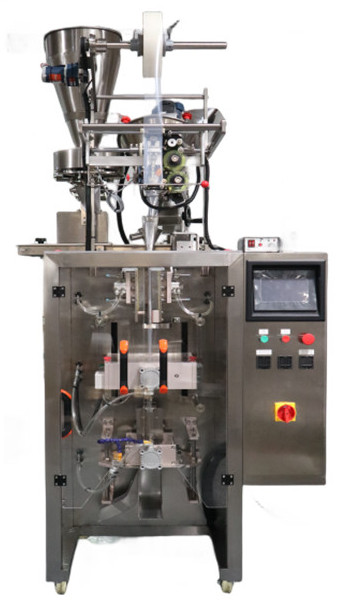

FBV-300 STICK SACHET PACKING MACHINE including functions main packaging machine, vertical and horizontal sealing, cutting device, powder auger filler, volumetric cup, bag former, date printer, film input, finished product conveyor, packing machines are controlled by PLC system.

Vertical form fill seal stick sachet packaging machine with volumetric cup and auger filler is designed for packaging both powder and fine granular products. VFFS powder and granular packing machine can package powder or fine granular products mixed packing, but also according to the packaging material needs to package powder products and fine granular products.

Functions included: form fill seal packages, shape die cut, date printing, automatic output, easy tearing device, etc.

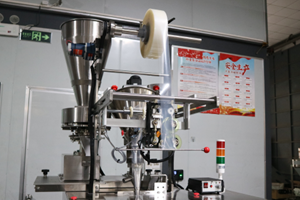

Film Input

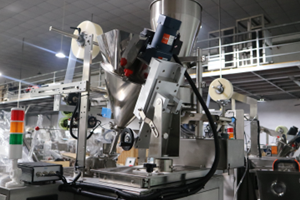

Powder Metering Head

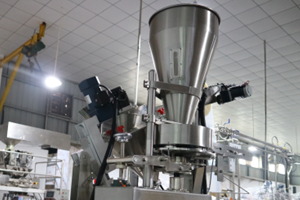

Volumetric Cup

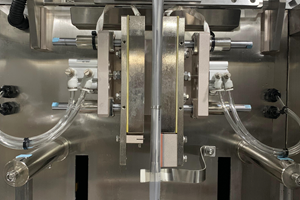

Vertical Sealing Device

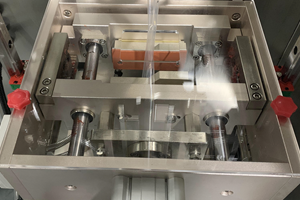

Horizontal Sealing Device

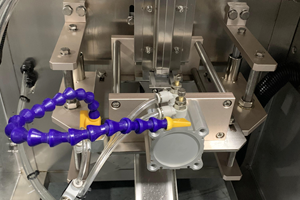

Cutting Device


Application:

VFFS stick sachet packing machine is equipment with two metering devices(volumetric cup and powder metering head ), which can pack two kinds of materials, powder and particle products.

Fine granular materials: sugar, soup, salt, dose, beans, rice, popcorn, sesames, oatmeal cereal, melon seeds, nuts, candy, grains, chicken essence and so on.




Powder materials: medical powder, milk powder, tea powder, coffee powder, chemical powder, protein powder, fruit powder, corn flour, seasoning powder, cocoa powder, and so on.




Vertical form fill seal packaging machine can be customized according to customer requirements, equipped with hole punch device, tear notch device and other corresponding equipment.

FBV-300 STICK SACHET PACKING MACHINE is suitable for various of packaging material, good performance, clear sealing texture, firm sealing.

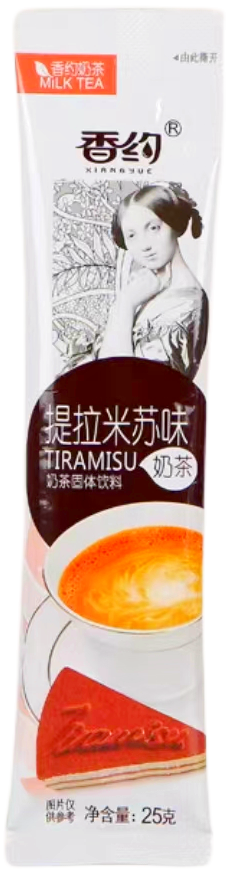

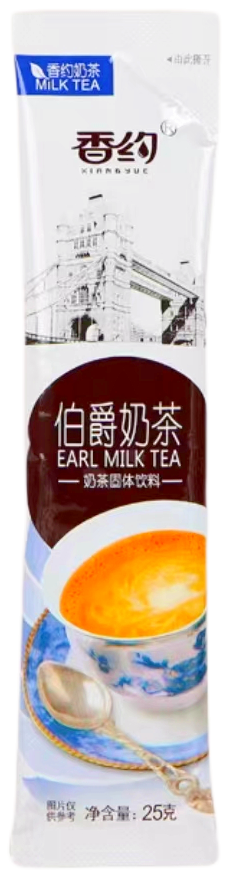

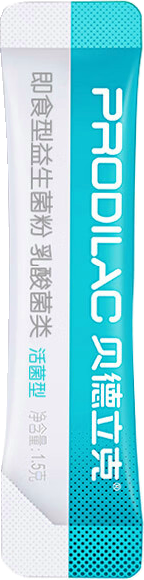

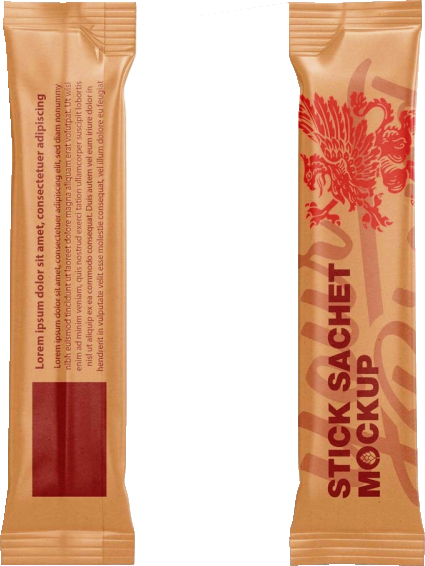

Sample sachet:    1. stick sachet  2. stick sachet with round corner  3. sachet with zigzag  4. sachet with flat cut  5. sachet with punched hole  6. 3/4-side seal sachet



Parameter

Type Of Packing MachineFbv-300S Vffs Servo System Packing Machine
Packing Speed/Minute25-50 Bags/Minute
packing DimensionWidth : 20mm - 150mm       Length : 30 mm - 180 mm
Diameter Of Packge RollMax 450 Mm
Power110v/220v/380v Customized
Packaging Machine Weight300 Kgs/Set

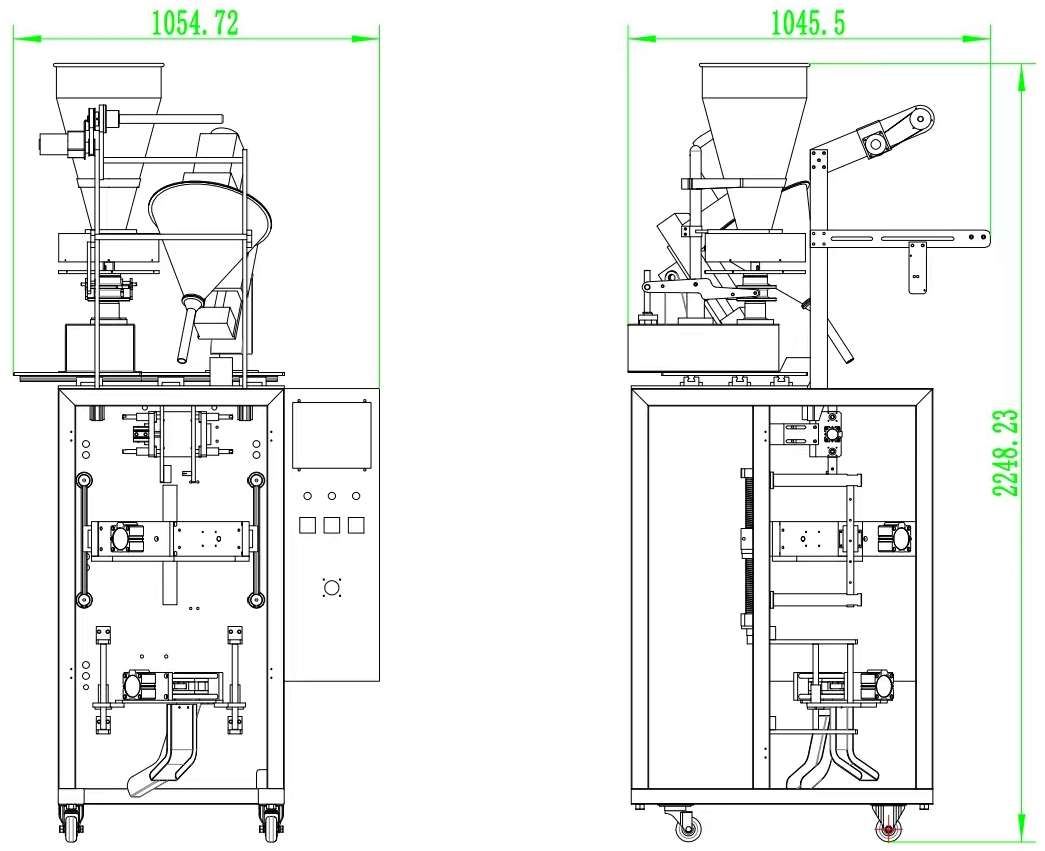

Size Of Packing Machine1000*750*2300mm




Company Advantages

01
We providing one-station purchase service
02
Our products exported to more than 40 countires from all over the world
03
We have 15 designers, total 120 employees to serve our customers

Frequently Asked Questions about semi automatic granule filling machine

Q:

If your products have qulity problem, how would you deal with

A:

A: we have professional after-sell service team, and we providing spares free within warranty

Q:

Are you machines factory?

A:

A: yes, we are professional factory in packaging machine

Q:

Are you providing install service.

A:

A: yes, if there is no Epidemic, no war in your country, we can providing installation service
