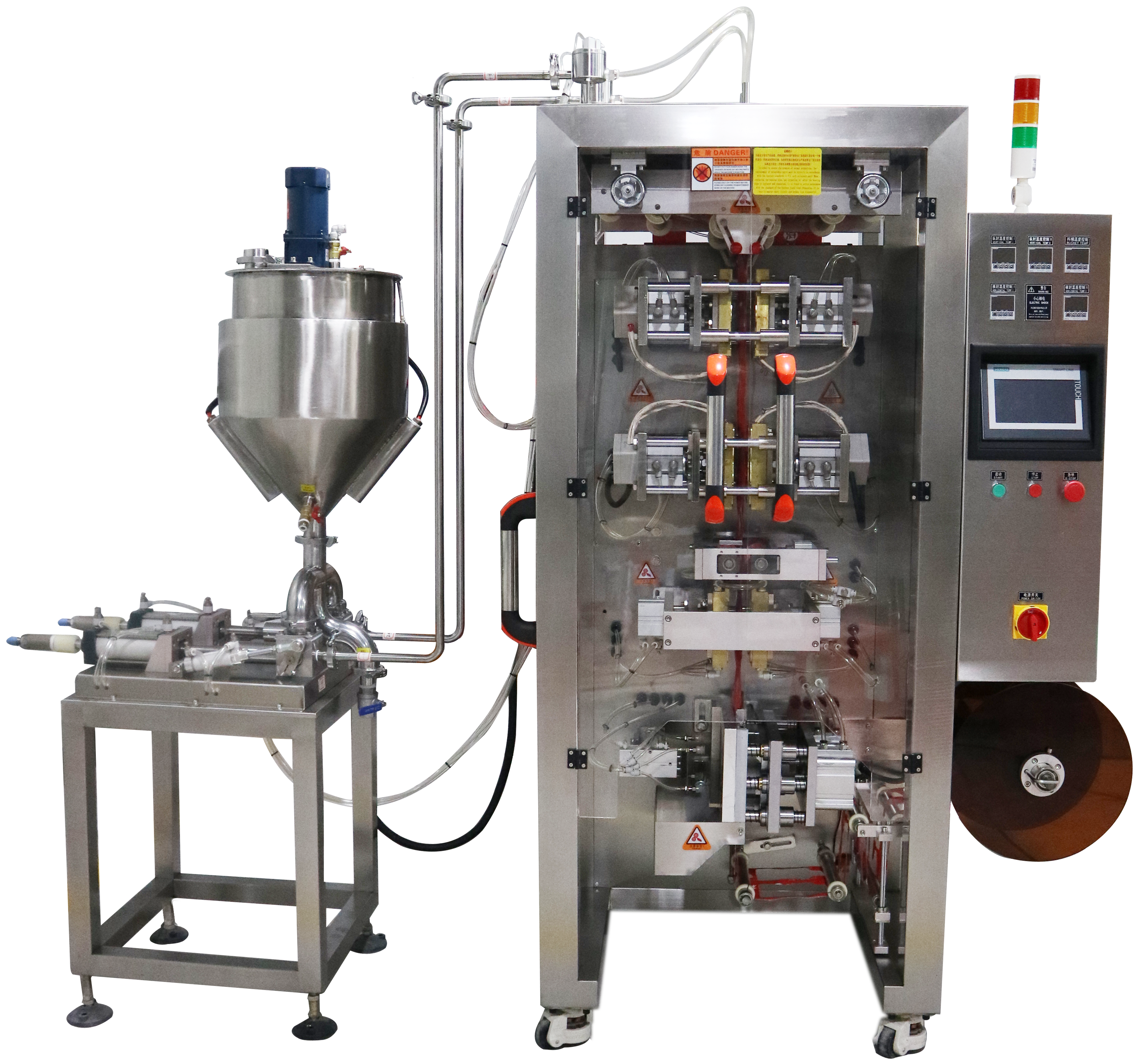

 FBV-50Y Die Cut Irregular Shape Sachet Packing Machine including functions, main packing machine, liquid and paste pump, film input, date printer, vertical sealing, bag holding device, horizontal sealing, stamping die device, film winding system, machines are controlled by PLC system.

Optional functions:   1. automatic pumping shampoo packing machine.  2. CIP washing system.  3. UV sterilizing lamp.

irregular shaped pouch packing machine        layout of shaped pouch packing machine

Detailed Images

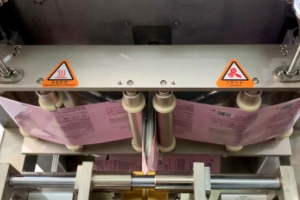

 au  construction of irregular shape pouch packing machine

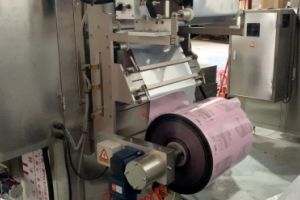

Film Input
construction of irregular shape pouch packing machine
Date Printer
construction of irregular shape pouch packing machine
Bag Former

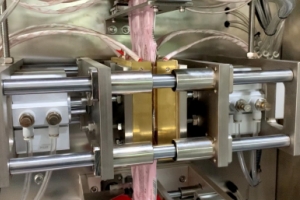

construction of irregular shape pouch packing machine

First Vertical Sealing

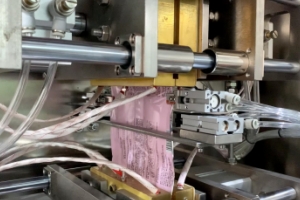

construction of irregular shape pouch packing machine
Bag Holding Device
construction of irregular shape pouch packing machine
Second Vertical Sealing

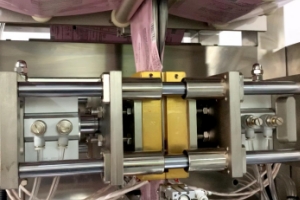

construction of irregular shape pouch packing machine
Horizontal Sealing

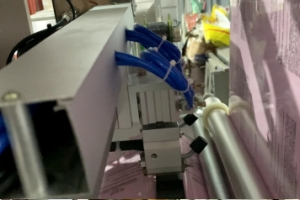

construction of irregular shape pouch packing machine
Stamping Die Device
Application

 Irregular shape pouch packaging machine is suitable for packing liquid and paste products, such as cosmetic, shampoo, enzyme beverage, honey, butter, coconut water, shower gel, ketchup, juice, salad dressing, milk, etc.





FBV-300Y VFFS packing machine can be customized to make different of shape sachets as below, except liquid and paste products, it's suit for packing powder and solid products by changing fillers system

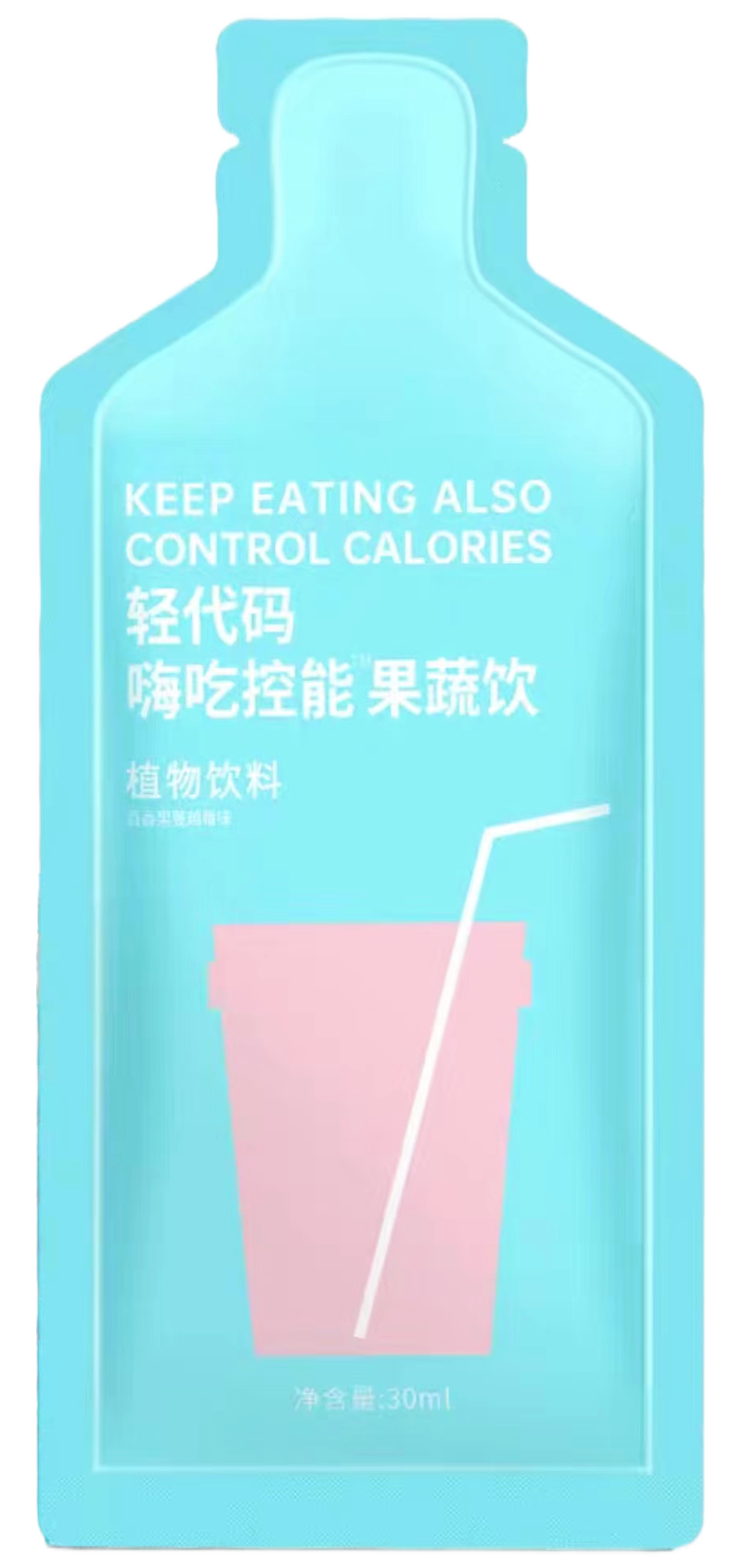

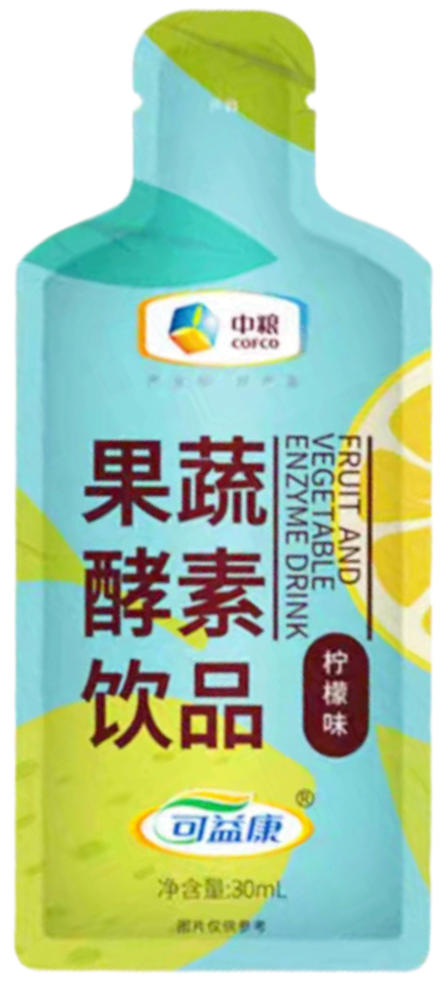

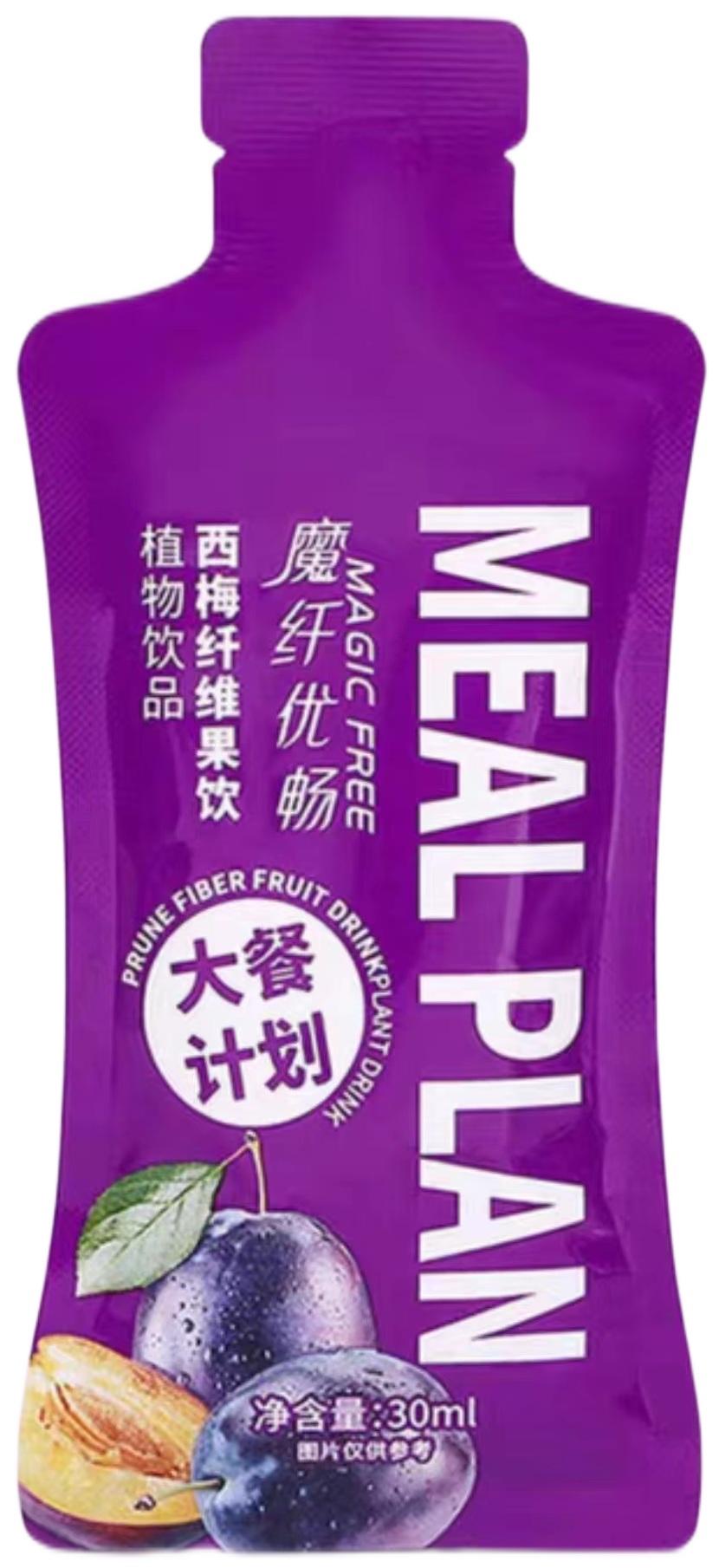

Sample Sachet:    1、Irregular Shape Pouch (Stamping die device can be customized according to customer requirements, such as Bottle Shape Pouch etc.)    2、3-Side Seal Pouch    3、4-Side Seal Pouch

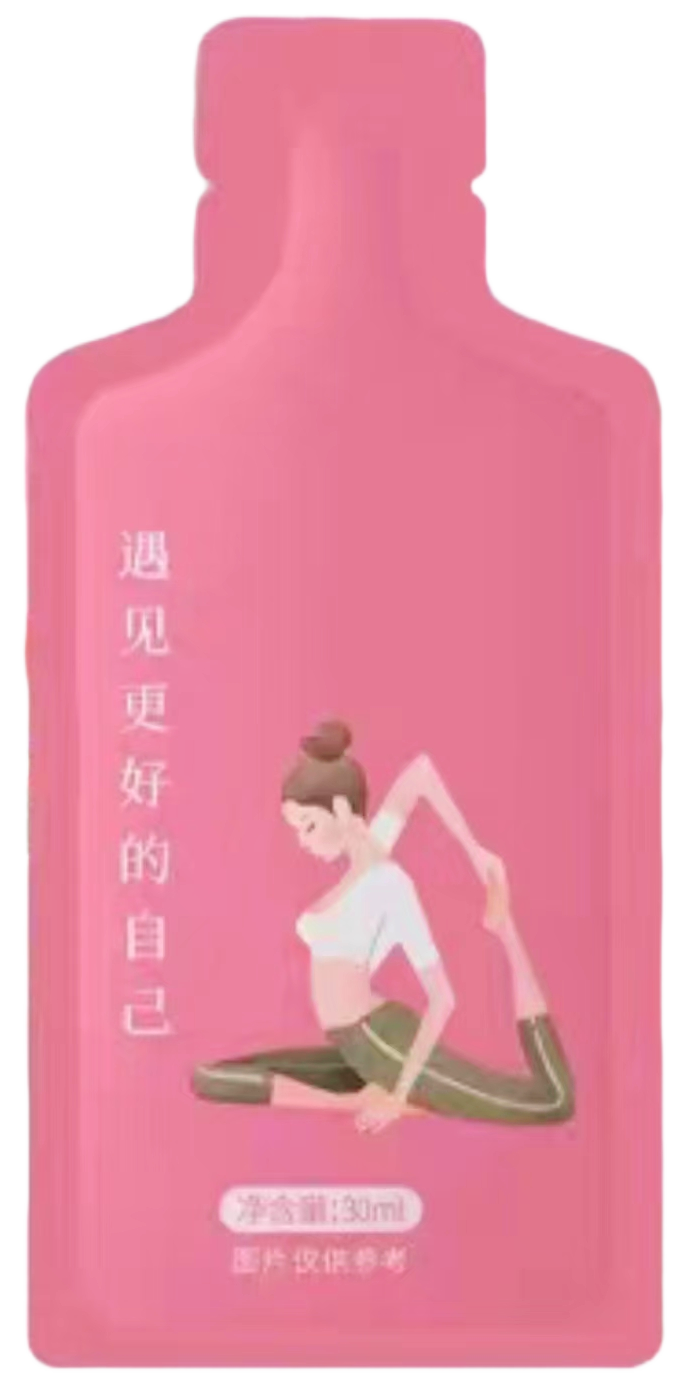

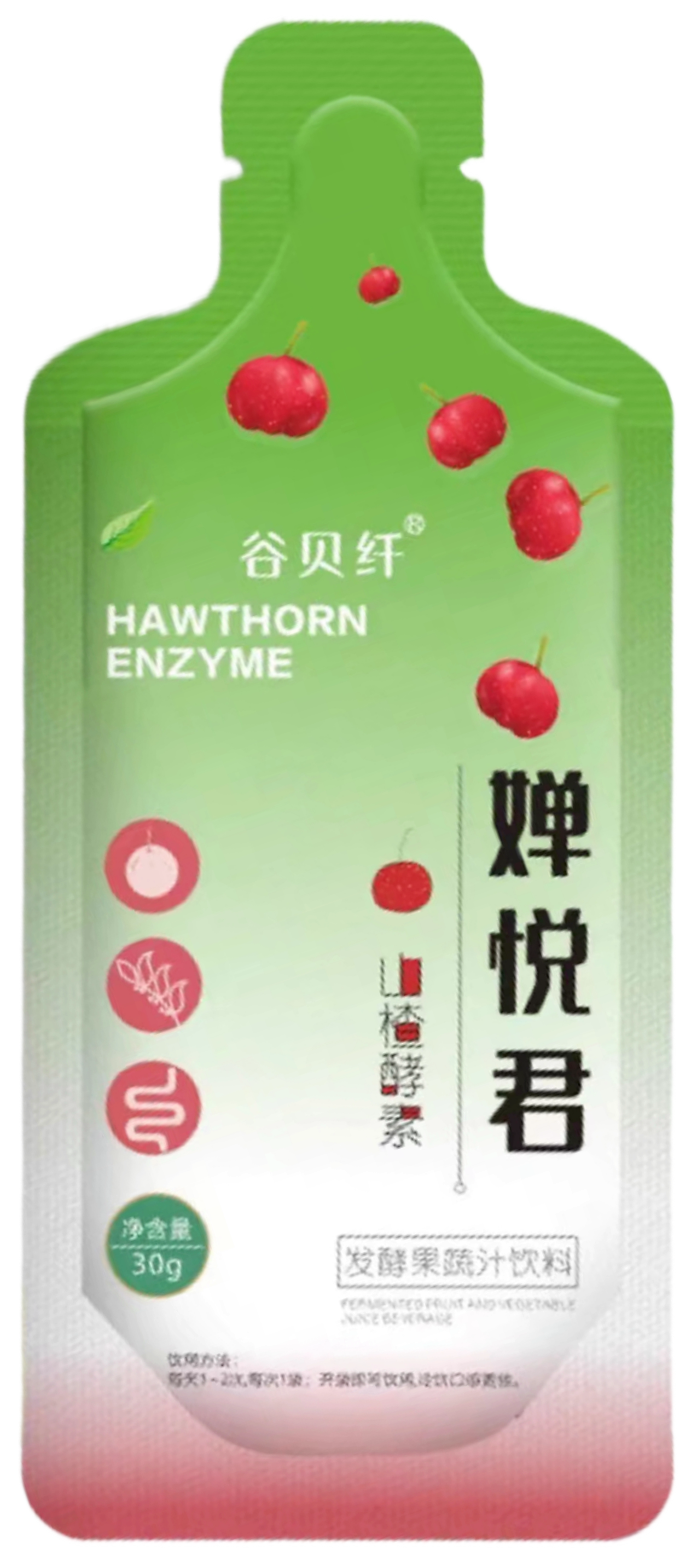

  bottle shape pouch packing machine      bottle shape pouch packaging machine        bottle shape sachet packing machine        bottle shape sachet packaging machine        yshaped pouch packaging machine


Parameters
TYPEFBV-50Y irregular shape pouch packing machineFBV-50YD irregular shape pouch packing machine
MACHINE SPEED25-30 per minute50-60 per minute
VOLUME TO FILL(1-70 mls can be customized)(1-50 mls can be customized)
POUCH SIZE RANGE

Customized

Max width: 130 mm,

Max length:180mm

Customized

Max width: 90mm,

Max length: 180mm

MAX. FILM WIDTH320mm420mm
FILM MATERIALComposite film/aluminum foil/paper-PE film/laminated paper
BAG TYPEIrregular Shape Pouch
VOLTAGEAC220V/50HZ Single-phase (customized)
TOTAL POWDER3KW4.4Kw
MACHINE MATERIALStainless Steel 304(SS304)
MACHINE SIZE(L)1150mm*(W)1250mm*(H)2150
N. W.450kg
