Instruction of machine

   FFS PACKING MACHINE--- PREMADE POUCH including liquid and paste pump, touch screen, sealing device, pouch opening device, air flushing device, flip-out pouch-picking unit, material filling device, machines are controlled by PLC system.

   Premade pouch packing machine can equipment with different metering system like multi-head weigher, liquid and paste pump, auger filler, bucket chain different kinds of product filling and packing in pre-made bag.

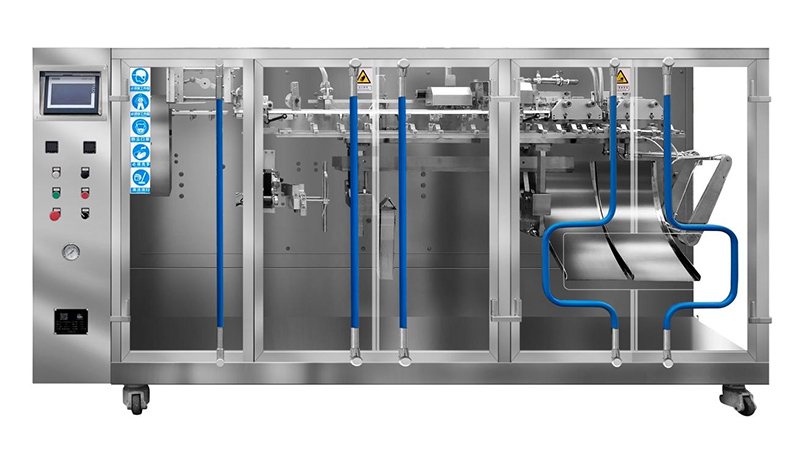

premade pouch packaging machine

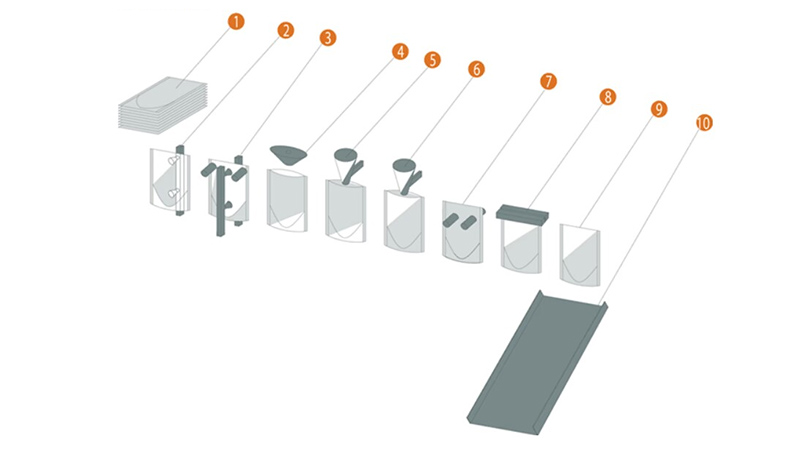

layout of premade pouch packaging machine

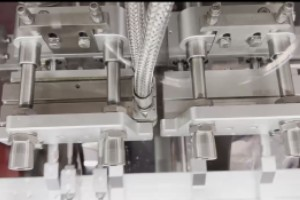

construction of sauce sachet packing machine

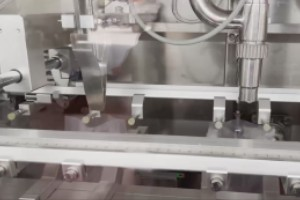

                 Pouch Opening


construction of sauce sachet packing machine

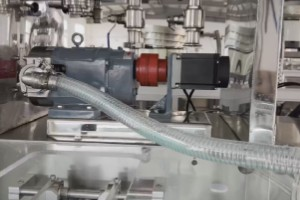

            Liquid and Paste Pump


construction of sauce sachet packing machine

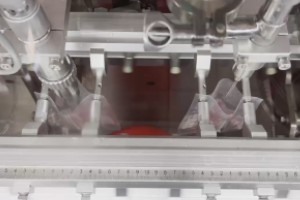

                  Material Filling


construction of sauce sachet packing machine



                    Top Sealing






Parameter

Type

FBG-180

FBG-210

FBG-240

FBG-330

Packing range

60X80mm & 180X310mm

90X110mm & 210X310mm

100X120mm & 240X320mm

140X180mm & 320X410mm

Max volume

1200mL

1600mL

2000mL

4000mL

Speed

30-60ppm

30-60ppm

30-60ppm

5-15ppm

Power

1.8kw

2.8kw

3.4kw

2.5kw

Dimension

1900mm(L)
970mm(W)
1390mm(H)

2700mm(L)
970mm(W)
1400mm(H)

3100mm(L)
 1010mm(W)
 1400mm(H)

1800mm(L)
 1020mm(W)
1300mm(H)

Weight   MC   H CNG MCHN

700kg

900kg

1800kg

700kg

Instruction of machine

 Premade pouch packaging machine is widely used in packing liquid and paste products, such as chili sauce, cooking oil, peanut sauce, honey, ketchup, bean sauce, fruit jam, butter, soy sauce, cream, enzyme beverage, etc.

Hotpot Condiment


Fruit Jam


 Ketchup


 Vinegar


Honey

permade bag packaging machine can be customized main machine structure for various kinds of pouch shape.

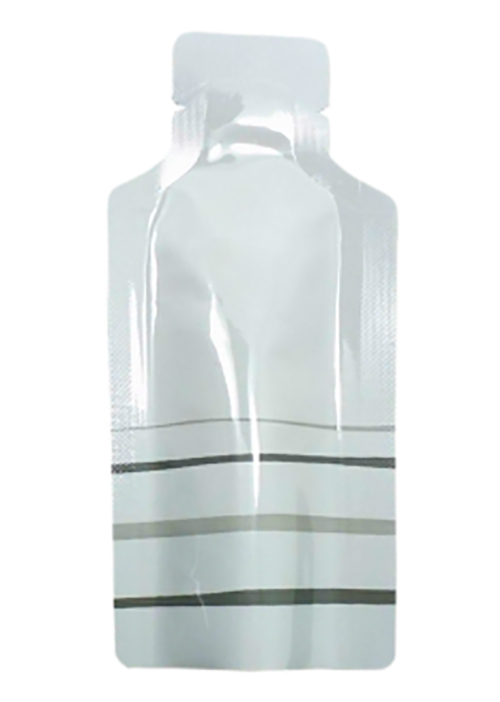

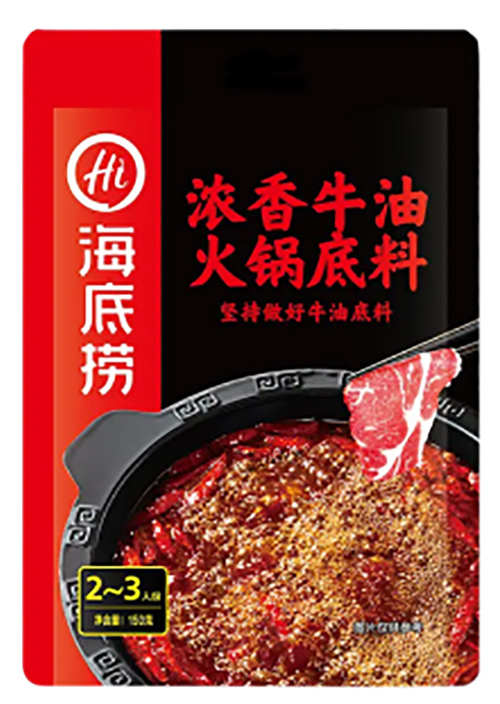

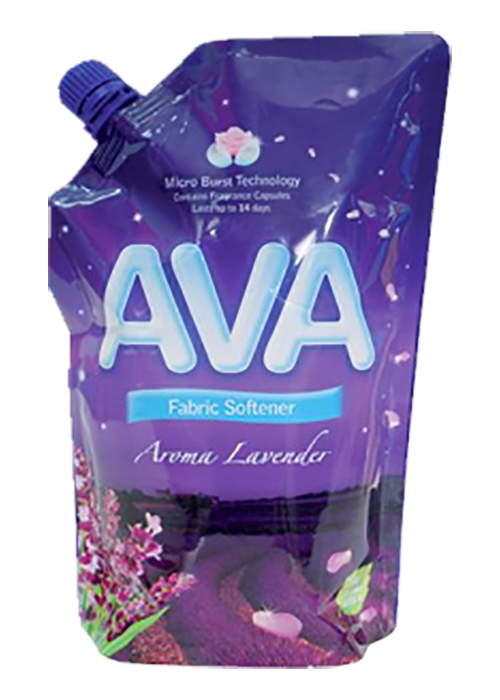

Sample Bag:    1. 4-Side Seal Pouch   2. 3-Side Seal Pouch   3. Zipper Pouch   4. Linking Pouch   5. Irregular Shape Of Pouch
